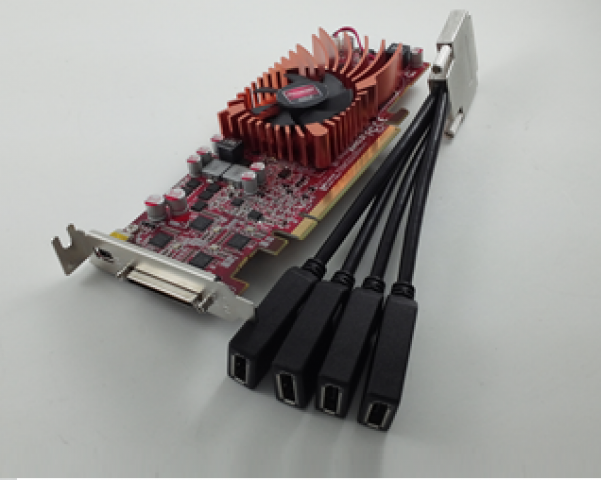

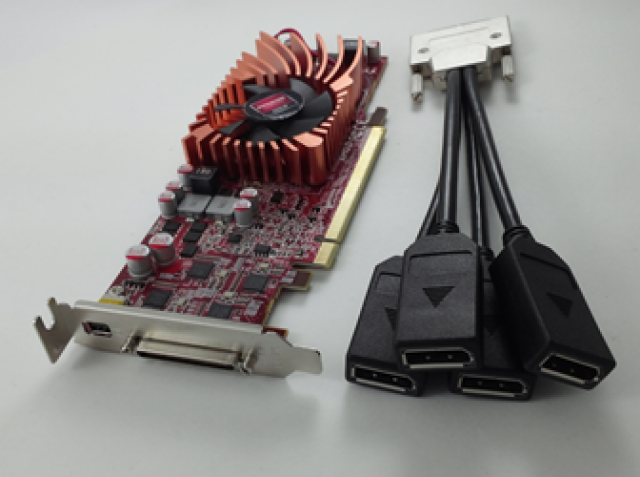

7750DPG5 5x 4K DisplayPort 30Hz, SFF Edition (EOL)

4 x DisplayPorts 1.1 (Active 3840 x 2160 60Hz per port dongle) + 1 Mini Display Port V1.2

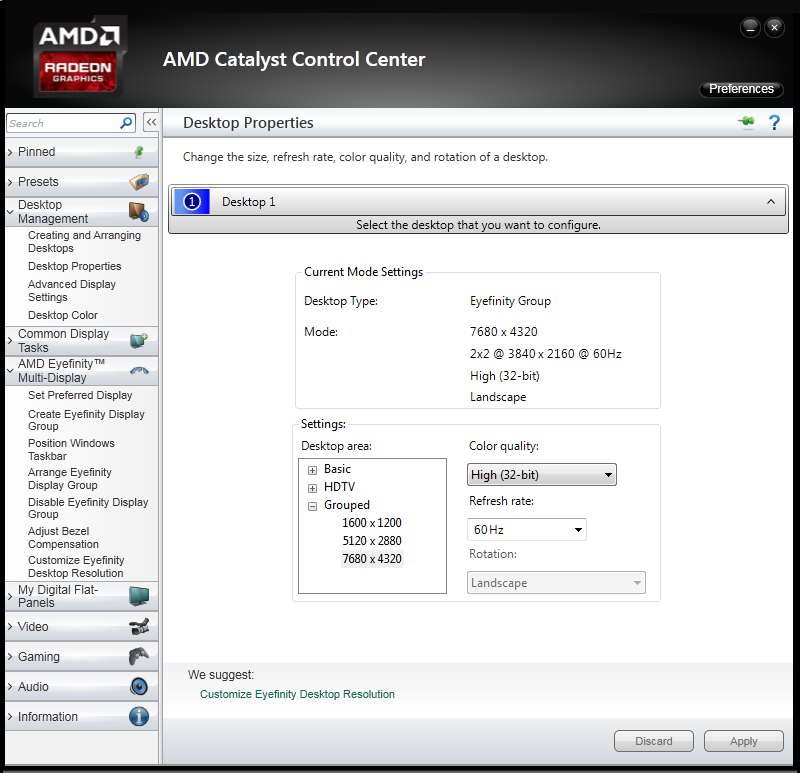

7680 x 4320 resolution (Landscape) (4* 3840 x 2160 DP 4K 30Hz monitors) 8K Display

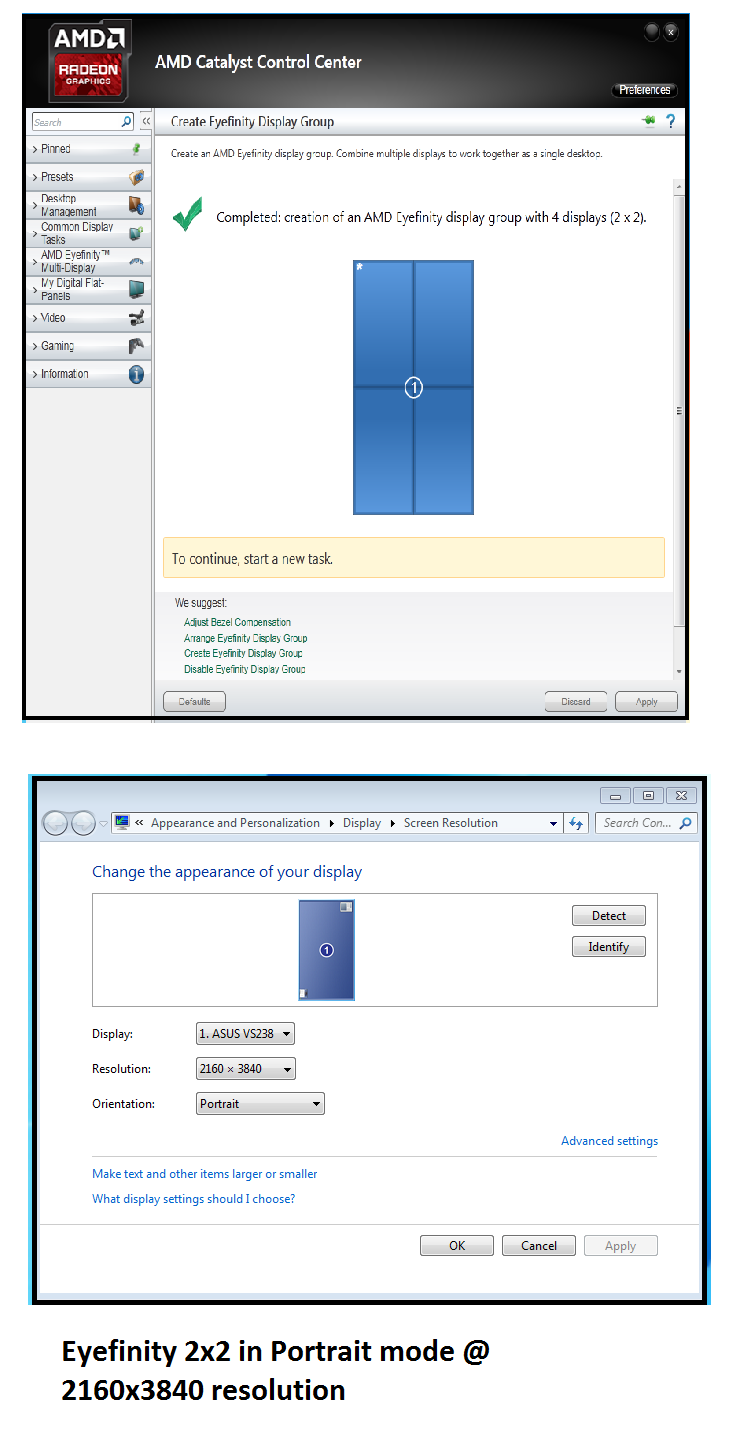

3840 x 8640 resolution (Portrait) (4* 3840 x 2160 DP 4K 30Hz Monitors rotate)

19200 x 2160 resolution Surround View (Landscape) (5* 3840 x 2160 DP 4K 30Hz monitors)

Eyefinity 2x2 / 1x4 / 5x1 mode

Independent 5 x Clone or Extend Mode in Landscape or Portrait resolution supported for each display configuration. DDMA supported.

Direct2Display5x EyeFinity

AMD Eyefinity multi-display technology

• Up to 4 x 4K 30Hz DP (UHD) + 1 Mini Display Port displays supported (Total 5 active Displays)
• Independent resolutions, refresh rates, color controls, & video overlays
• Display grouping
       - Combine multiple displays to behave like a single large display
• Wide gamut support for the high quality true color display and applications.

8K x 4K resolution Display supported.

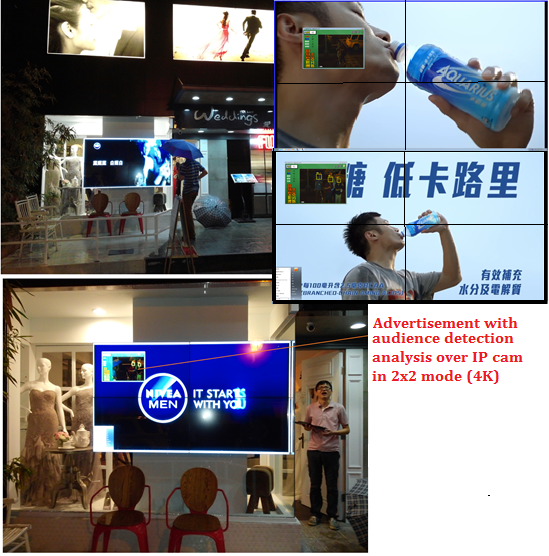

Sowing the Commercial  Digital Signage  Market :  Next Trend in 4K/8K Digital demand

Design for enabling UHD 4K/8K multi-screen display walls designed to attract, inform and engage audiences or foster collaborative interaction and decision making. Such configurations include:

• Advertising & Point-of-Sale (e.g. digital billboards, posters and digital menus)

• Command & Control, Operations or Process Control Centers (e.g. utilities, emergency services, security)

• Conferences & Presentations (e.g. auditoriums, convention centers, conference rooms) • Entertainment/Infotainment & Events (e.g. sports arenas, movie theaters, concerts)

• Informational Displays • Simulation & Training (e.g. flight, automobile or ship’s bridge simulators)

• Video Conferencing with multi-audio conferencing.

• UHD 4K, 3D Gaming and Entertainment

Powerful, flexible and affordable multi-display graphics product the display wall market besides gaming entertainment, has been waiting for–offering the lowest TCO for powering display walls comprised of multi-screens, 5 x high display density and long-lasting, high quality multimedia performance.

Support Multi-monitor Management Software enables you to tailor your display formation to the way you work and playback video contents, so you can manage increased amounts of information, video contents and improve your productivity.

• Breadth - increase your display work space supporting up to nine monitors.
• Depth - create multiple layers of display workspace with Multi-Desk for up to 4 x video playback content in one monitor.

Flexible and easy to use :

Managing independent monitor display features for work and commercial sector :

• Determine the behavior of pop-up windows and dialog boxes in different applications
• Switch between desktop with a mouse click or "Hot Key"
• Vary your settings from one application to the next
• Customize features to an application

Increase your work productivity for multi-Monitors display :

• Transparent windows and menus
• " Always-on-Top"
• Multi-Desk properties
• Cycle through desktops view
• Move To Monitor
• Internet Explorer extension

Features AMD Eyefinity technology, a unique flexible multi-display technology enabling up to six displays to be driven from a single PC with one GPU. Using only one desktop with multiple AMD 7750™ cards, it is possible to create scalable video-walls with 10 or more screens. Most powerful solution for multi-display display walls—no other professional graphics manufacturer offers a single card capable of driving up to 5 displays (with independent audio streams), offers the latest graphics memory for optimal multimedia application performance and consumes 70W at maximum power.

Leading-edge Display Scalability Drive 10 UHD screens from a single desktop with two 7750 cards with 5 x independent audio's in clone/extend and 2 Eyefinity mode configuration. Cost effective solution for large UDH video walls and interactive graphics solution.

5 x Discrete Digital Multi-Point Audio (DDMA). Video cards have been able to output audio for a few years now via HDMI, and more recently DisplayPort gained the ability. However GPUs have been limited to streaming audio to a single device, be it a monitor, TV, or receiver. With DDMA 7750 single GPU can send up to 5 independent audio to multiple devices. You can configure each video player application for a dedicate audio channel configured along with the video content for independent video and audio playback.  7750 design offers an affordable multi-display, multi-audio conferencing for consumers.

Bezel Compensation Utility Feature :

Bezel Compensation Support : Driver level bezel correction allows you compensate for the dead space between your LCDs and converts this area into a blind spot, rather than a hard stop. Prior to introduction of bezel correction, textures would end on one monitor and abruptly start on the second, creating a very disjointed image. The bezel correction works by creating a custom resolution for your configuration and broadcasting this as the native setting for all your apps. Bezel correction is an optional step when setting up a new Eyefinity group in the Catalyst control center, so make sure you don’t miss it. You might not notice it in a racing game when looking at the grass or sky, but it will stick out like a sore thumb when you’re looking at a face that has been incorrectly split in two by a 4-inch bezel.

UHD 4K/8K Gaming and Entertainment Solution @ Direct2Easy Connect with DisplayPort 4K Edition

Innovative graphics display capabilities enabling 8 times massive desktop workspaces and ultra-immersive visual environments for the ultimate HD Gaming and computing experience.
