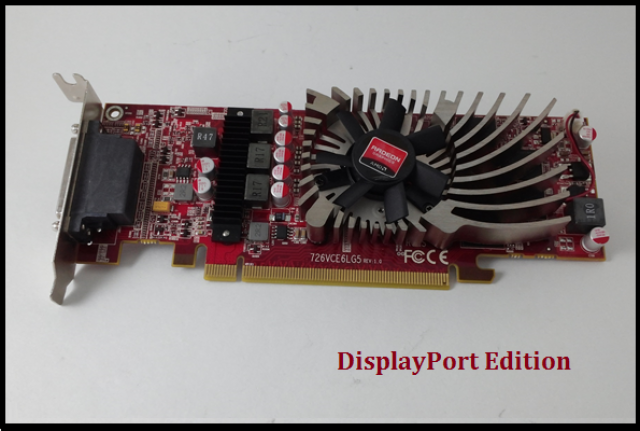

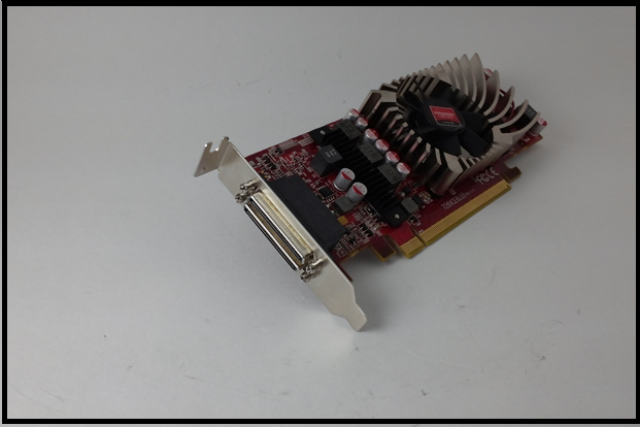

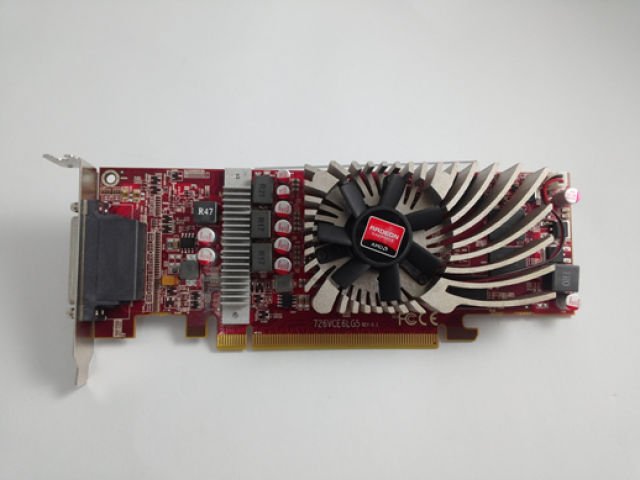

SFF R7360VDLG5-G6, 4GB GDDR5 (2GB), 6x DisplayPort outputs, GREEN edition
|
GPU | AMD Radeon™ R7 360 |
GPU Core Clock | 800Mhz core clock |
Video Memory | 4GB GDDR5 graphics memory (2GB option) |
Stream Processors | 768 SP |
Memory Clock/Bandwidth | 1250Mhz GDDR5 (5Gbps clock / 128-bit) |
APIs supported | DirectX® 12, OpenGL® 4.5, Vulkan™, Mantle, Open CL 1.2 |
BUS Interface | PCIe® 3.0 compliant, x16 |
Dimension / Size | 20.9cm (length) * 11cm (height) * 1.9cm (thick) ; SFF size Single-slot, fits into 2U Rack mount / 4U, half-height / full-height, full-length chassis PCs. |
FAN Cooler | Temp. Control Copper-base FAN sink Cooler (single slot) Temperature Control FAN keeps the noise level absolutely minimal (low DBs) and only increases the speed to improves the air flow and facilitates a highly efficient ventilation supports the cooling of the graphics card work load. |

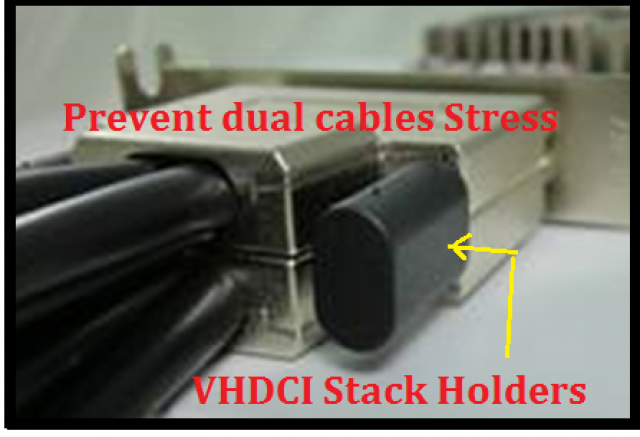

Display Ports Output | 6x DisplayPort 1.1a output (2 sets VHDCI to 6x DPs cable locking) Support 6x Discrete Digital Multi-Point Audio capability. (6 x DDMAs) |

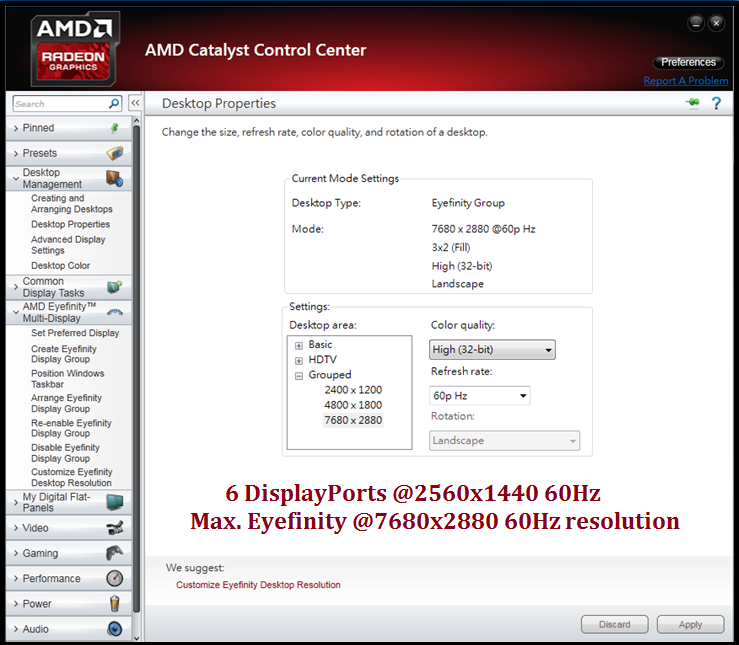

Maximum Resolution | Maximum DisplayPort 1.1a resolution of 3840x2160 @30Hz, 2560x1440 60Hz WQHD, 24 bits per pixel at 60Hz. Eyefinity resolution supported : 7680 x 4320 resolution 30Hz (Eyefinity 2x2 mode) (4K x 4) 19200 x 2160 resolution 30Hz (Eyefinity 5x1 mode) (4K x 5) 7680 x 2880 60Hz (Eyefinity 3x2 mode) (2560x1440 x 6) *Supports Curved UltraWide (21:9) QHD displays @3440x1440, 2560x1080 resolution Wide screen displaying* Support Commercial custom resolution displays or more :
|
Power Consumption | > 55 watts (full load) (No external power input required) |

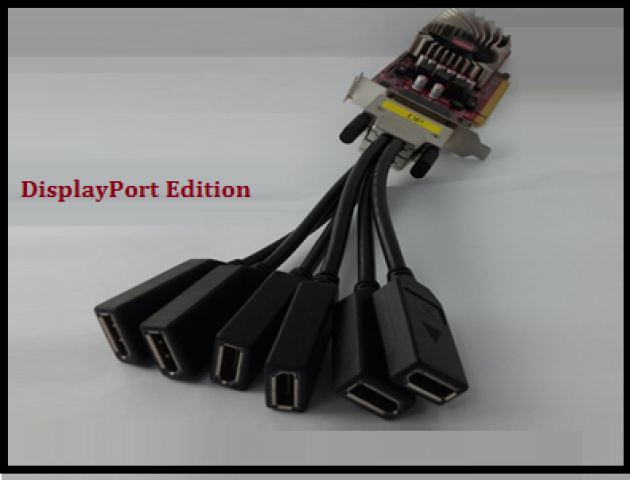

Accessories | CD Driver, 2 sets of VHDCI to 3x DisplayPort 1.1a output cable. Quick Installation Manual. |
O/S support | - Windows® 10 32-bit / 64-bit |
Feature Summary | Image quality enhancement technology
AMD Eyefinity multi-display technology
AMD App Acceleration
AMD HD Media Accelerator Unified Video Decoder (UVD)
Video Codec Engine (VCE)
Enhanced Video Quality features
Advanced video color correction
AMD HD3D technology
Cutting-edge integrated DisplayPort support
Advanced audio capabilities (AMD True Audio Technology supported)
AMD PowerPlay Management technology
AMD Project FreeSync Support (DDR) Project FreeSync (DDR) is an AMD effort to leverage industry standards, like DisplayPort Adaptive-Sync, to deliver dynamic refresh rates. Dynamic refresh rates synchronize the refresh rate of a compatible monitor to the framerate of a user’s AMD Radeon™ R7 260 graphics to maximally reduce input latency and reduce or fully eliminate stuttering/juddering/tearing during gaming and video playback. Bezel Compensation : Stretches display resolutions to prevent bezel interference and image distortion when displaying a single large image across multiple display.
No Video Tearing effect supported: |
Flexibile Displays Formation
AMD Freesync technology - No stuttering. No tearing. Just gaming.
Virtual Super Resolution
This technology allows a user to improve visual quality in games and other content by rendering at a high resolution (up to 2560x1440 WQHD) and then displaying that content at a lower resolution, which is natively supported by the monitor.
When this feature is enabled, Virtual Super Resolutions beyond the native resolution of the display device will be available in a wide variety of games and applications, including the Windows® desktop. Effectively, VSR provides a Super Sampling Anti-Aliasing (SSAA) feature for the games and applications that do not natively support that functionality.
Example : 2x displays (1920x1080) VSR@2560x1440 60Hz (WQHD)
Eyefinity 2x1 mode @ 5120x1440 60Hz
Option Low cost Digital Signage software :
Recommended Hardware System configuration for Multi-video’s playback :
(For Reference only)
- Processor : Intel Xeon CPU E3-1231 v3 @3.40GHz 3.40 GHz or Intel Xeon E3-1585 v5, Xeon E5-2670 @2.6GHz or E3 1500 v5 CPU (Major required CPU)
- Installed System Memory : 16.0 GB or above
- Operating System : Windows 7 / 8.1 / 10 64-bit O/S
- Motherboard : GA-H97M-D3H or Sever Boards similar
- Power Supply : 500 watts PSU or above
****************************************************************************************
