SFF G7360DPLG5-G4, 2GB GDDR5, 4x mDPs 1.2 port, HDR, GREEN edition.
|
GPU | AMD Radeon™ R7 360 |
GPU Core Clock | 800Mhz core clock |
Video Memory | 2GB GDDR5 graphics memory |
Stream Processors | 768 SP |
Memory Clock/Bandwidth | 1250Mhz GDDR5 (5Gbps clock / 128-bit) |
APIs supported | DirectX® 12, Mantle, OpenGL 4.4, OpenCL 2.0 |
BUS Interface | PCIe® 3.0 compliant, x16 |
Form Factor | 20.9cm (length) * 11cm (height) * 1.9cm (thick) ; SFF size Single-slot, fits into 2U Rack mount / 4U, half-height / full-height, full-length chassis PCs. |
FAN Cooler | Discreet active FAN cooler (Single slot, Copper Core, Temp-control FAN speed) Temperature Control FAN keeps the noise level absolutely minimal and only increases the speed to improves the air flow and facilitates a highly efficient ventilation supports the cooling of the graphics card work load. |

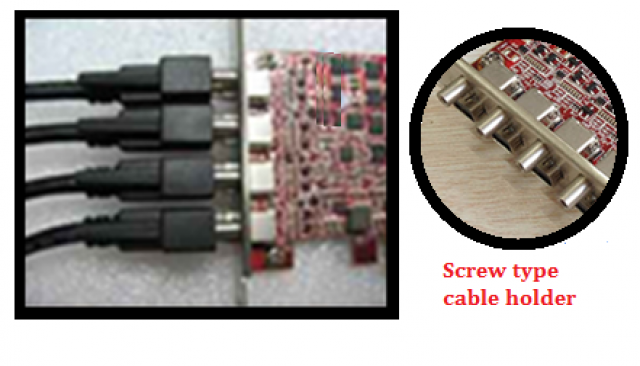

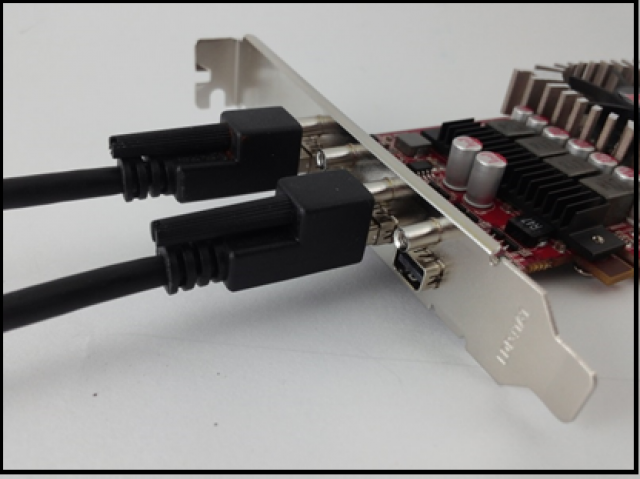

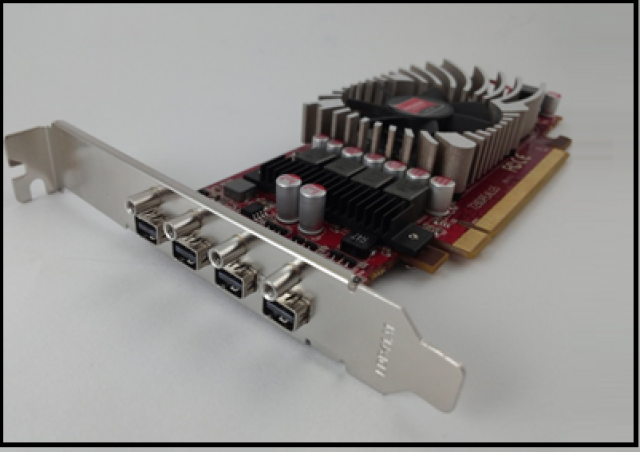

Display Ports Output | 4x mDisplayPort 1.2 output @4096x2160 60Hz (cable lock) supports 4x Discrete Digital Multi-Point Audio capability. (4 x DDMAs) DPs support up to 4x Curved UltraWide (21:9) QHD displays @3440x1440, 2560x1080 resolution wide screen displaying* |
Maximum Resolution | Maximum DisplayPort 1.2 resolution of 4096 x 2160, 24 bits per pixel at 60Hz. Eyefinity resolution supported : 7680 x 4320 resolution 60Hz (Eyefinity 2x2 mode) (4K x 4) 11520 x 2160 resolution 60Hz (Eyefinity 4x1 mode) *Supports Eyefinity 4x1 Surround mode with 4x Curved UltraWide (21:9) QHD displays @3440x1440, 2560x1080 resolution Wide screen displaying* Support Custom Resolution 3840 x 600@60Hz or more : |
Power Consumption | > 65 watts (full load) (No external power input required) |
Accessories | CD Driver, Quick Installation Manual. |
O/S support | - Windows® 10 |
Feature Summary | Image quality enhancement technology
AMD Eyefinity multi-display technology
AMD App Acceleration
AMD HD Media Accelerator Unified Video Decoder (UVD)
Video Codec Engine (VCE)
Enhanced Video Quality features
Advanced video color correction
AMD HD3D technology
Cutting-edge integrated DisplayPort support
Advanced audio capabilities (AMD True Audio Technology supported)
AMD PowerPlay Management technology
AMD Project FreeSync Support (DDR) Project FreeSync (DDR) is an AMD effort to leverage industry standards, like DisplayPort Adaptive-Sync, to deliver dynamic refresh rates. Dynamic refresh rates synchronize the refresh rate of a compatible monitor to the framerate of a user’s AMD Radeon™ R7 360 graphics to maximally reduce input latency and reduce or fully eliminate stuttering/juddering/tearing during gaming and video playback. Bezel Compensation : Stretches display resolutions to prevent bezel interference and image distortion when displaying a single large image across multiple display.
No Video Tearing effect supported: |
All images are for reference only, and are subject to change without prior notice.
All brand names and trademarks are the property of their respective owners.
Established as an OEM/ODM design center and service by a group of experienced engineers of over 15 years in the graphics solution for the IPC business, GXore Inc. Group has integrated the resources and competencies of Hong Kong, Taiwan and China. With its logistic subsidiary in Hong Kong, GXore Inc. group is empowered with a flexible global logistics. Leveraging the sales & finance strength of Taiwan, it has also established R&D Design House; Partner's manufacturing facilities (ROHS), QA center & After-sale RMA service center in China. Since its inception, GXore Inc. group has been specializing in IPC graphics design and manufacturing, providing the ODM as well as the customized OEM services to US, Europe, Japan and Korea. GXore Inc. group’s goal is to fully satisfy every demand of every customer by the highest standard of product quality in the most efficient way.
| Commercial Sector
Design for enabling multi-screen display designed to attract, inform and engage audiences or foster collaborative interaction and decision making. Such configurations include: • Advertising & Point-of-Sale (e.g. digital billboards, posters and digital menus) • Command & Control, Operations or Process Control Centers (e.g. utilities, emergency services, security) • Conferences & Presentations (e.g. auditoriums, convention centers, conference rooms) • Entertainment/Infotainment & Events (e.g. sports arenas, movie theaters, concerts) • Informational Displays • Simulation & Training (e.g. flight, automobile or ship’s bridge simulators) • Video Conferencing Powerful, flexible and affordable multi-display graphics product the display wall market besides gaming entertainment, has been waiting for–offering the lowest TCO for powering display comprised of 3 screens, high display density and long-lasting, high quality multimedia performance. |
| Support Multi-monitor Management Software enables you to tailor your display formation to the way you work and playback video contents, so you can manage increased amounts of information, video contents and improve your productivity.
Flexible and easy to use : Managing independent monitor display features for work and commercial sector :
Increase your work productivity for multi-Monitors display :
|
| See more. Do more. Flexibly to tailor to your needs ! AMD Eyefinity technology enables you to run up to four independent and simultaneous displays with a single graphics card. By expanding your field of view across multiple high-resolution monitors, you can see more detail than ever, helping to increase your workflow productivity. You can manage multitasking more efficiently, and view more data, applications, and images at once. |
| HD Gaming and Entertainment Solution @ Direct2Easy Connect. Innovative graphics display capabilities enabling 3 times massive desktop workspaces and ultra-immersive visual environments for the ultimate HD Gaming and computing experience. |
| Bezel Compensation Utility Feature : Bezel Compensation Support : Driver level bezel correction allows you compensate for the dead space between your LCDs and converts this area into a blind spot, rather than a hard stop. Prior to introduction of bezel correction, textures would end on one monitor and abruptly start on the second, creating a very disjointed image. The bezel correction works by creating a custom resolution for your configuration and broadcasting this as the native setting for all your apps. Bezel correction is an optional step when setting up a new Eyefinity group in the Catalyst control center, so make sure you don’t miss it. You might not notice it in a racing game when looking at the grass or sky, but it will stick out like a sore thumb when you’re looking at a face that has been incorrectly split in two by a 4-inch bezel. |
