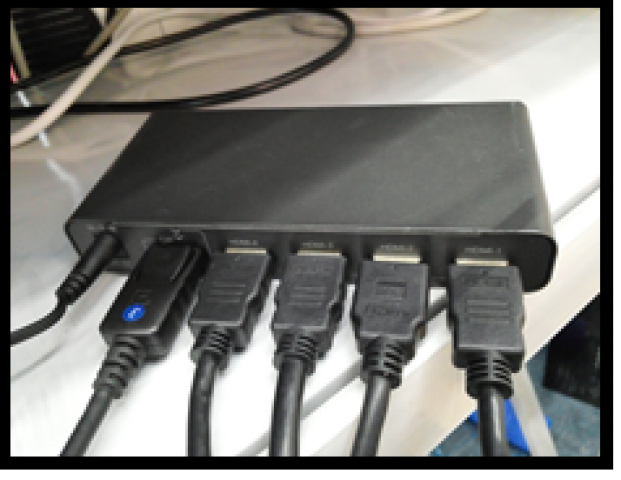

DP2HM140A SST Mode SMART EDID caching, 16/20/24 displays SST Expander

product type

DisplayPort Connectivity

Description

The DP2HM140A design is a smart EDID caching hardware (no monitor loss display) integrated device that receives a DisplayPort™ 1.2/1.4 SST signal from the source device and manage the video streams independently to one 7680 x 1080 @60Hz resolution from each expander output to 4x displays and when combined with 4 sets of the expanders provides a total 16 displays @4x4 formation vieo wall (@7680 x 4320 resolution 60Hz) for AMD/Nvidia Graphic card. For 20 displays in @4x5 and 24 displays in 6x4 monitors formation supporting Eyefinity resolution in one large video wall with standard AMD Redeon Graphics card only. Ideal and easy installation is a cost effective for 16x displays digital signage (4x4) or up to 24 displays (4x6 @7680x6400 60Hz resolution and 8x3 formation @15360x3240 60Hz resolution) with one AMD Firepro 6x mDPs 1.2 card into one big video wall infotainment solution without extra software effort for one video display.

Specifications
Detail
Inquiry

Designed specially for the 4x4 or 4x5, 8x3 and 6x4 Display Video Wall configuration with AMD Radeon/Nvidia Graphics DisplayPort 1.2 @Doublex Eyefinity resolution into one big Digital Signage Video Wall at lowest cost.

Specification :

• Standards compliance support displayport v1.2

• Standard, HDCP V2.0 and EDID V1.4

• Supports main link rates of 8.1 bps (HBR3), 5.4 bps (HBR2), 2.7 bps(HBR) and 1.62 bps(RBR) from source

• Supports 1/2/4 lanes of main link for RX side

• Supports 1x UHD ports direct audio's with each Expander ouput.

• Supported monitor formation in Clone, Extend and AMD Eyefnity mode setting.

• Maximum support for up to 24 displays with AMD Displayports graphics card requires 6x Expander Hubs.

• Maximum support for up to 16 displays with Nvidia Displayports graphics card requires 4x Expander Hubs.

• For DP 1.2/DP1.4 source, supports DP1.2/1.4 SST multi video/audio steams converts to UHD display interface

• Supported output resolution: up to 1920 x 1080 @60Hz with each monitor displays

• Input pixel data depth 6/8/10/12 bits and supports output pixel format RGB444

• Supports smart EDID caching hardware integrated (No monitor display drop-out for monitor disconnection or power off)

Key Point :

1.Easy configuration for adding up to four UHD displays and does NOT require active adapters (DP++ compliant)

2. Perfect multi monitor solution on a budget. Plug and Play.

3. Hot plugging. Does not require shutting down the system.

4. Compatible to all existing DisplayPort 1.2/1.4 AMD/Nvidia Graphic cards

5. AMD Eyefinity Technology ready

6. Nvidia Mosaic Technology ready

DSS

Custom Total Resolution Per Hub output (EDID extension)

Established as an OEM/ODM design center and service by a group of experienced engineers of over 15 years in the graphics solution for the IPC business, GXore Inc. Group has integrated the resources and competencies of Hong Kong, Taiwan and China. With its logistic subsidiary in Hong Kong, GXore Inc. group is empowered with a flexible global logistics. Leveraging the sales & finance strength of Taiwan, it has also established R&D Design House; Partner's manufacturing facilities (ROHS), QA center & After-sale RMA service center in China. Since its inception, GXore Inc. group has been specializing in IPC graphics design and manufacturing, providing the ODM as well as the customized OEM services to US, Europe, Japan and Korea. GXore Inc. group’s goal is to fully satisfy every demand of every customer by the highest standard of product quality in the most efficient way.

Application

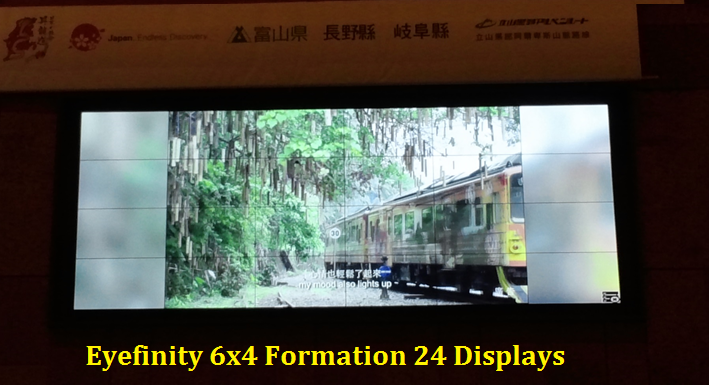

24 Video Wall

Commercial

All images are for reference only, and are subject to change without prior notice.
All brand names and trademarks are the property of their respective owners.


: : : :
