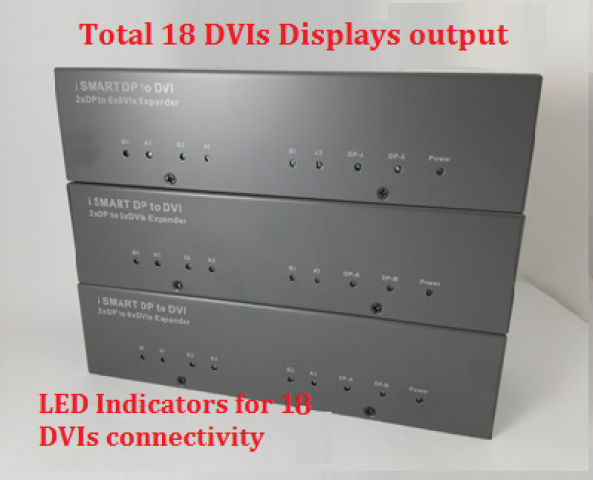

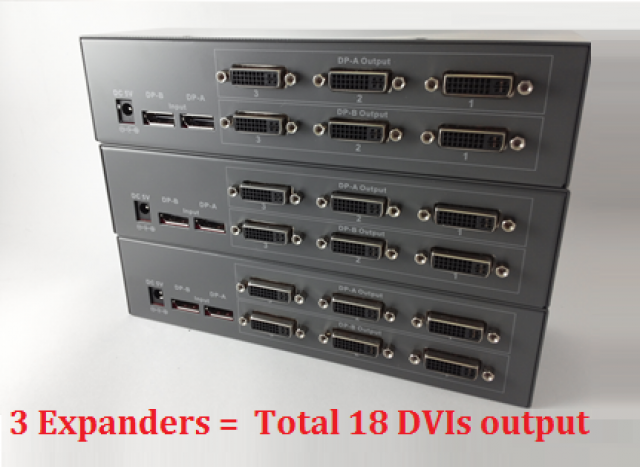

SSTDP@18xDVIs Expander

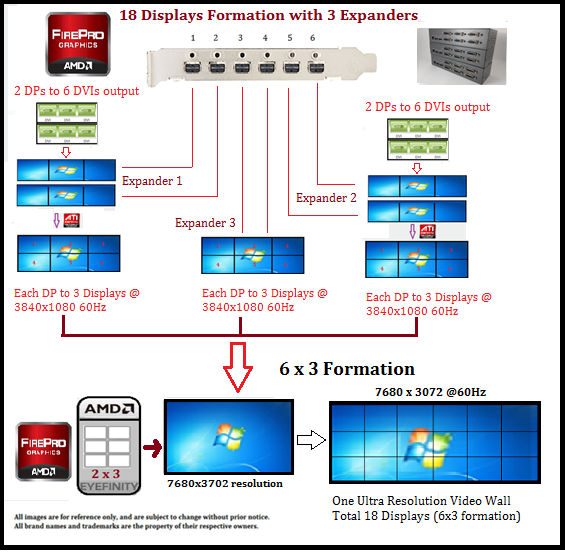

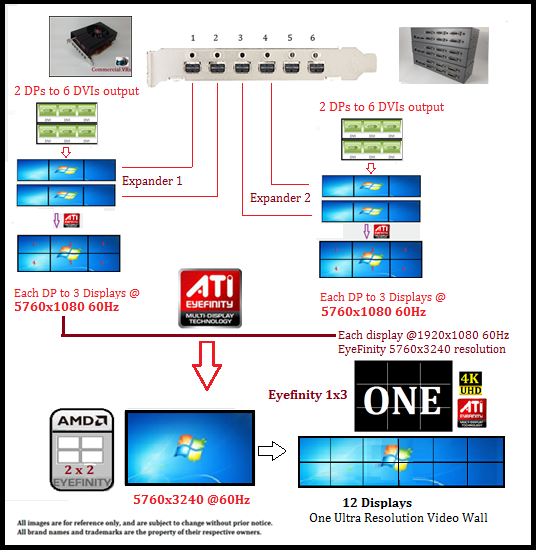

Breaking the limitation of a 6 displays from standard MST hub with a single GPU card,  the expander offers no messy, easy installation for connectivity  and easy maintenance with one big 6x3 mode 4K large displaying screen from 3 Expanders, each with 6x DVI output with one GPU card bundled solution. No addition software required and all hardware integration.

Features

- Expand your desktop ,clone or Eyefinity mode into multi-display video wall.  No Limitation in Eyefinity setting with up to Maximum monitors installable up to 18 displays with Eyefinity 7680x3072resolution for one large screen displaying saving expensive software applications.
- Easy to use and works with any operating system.

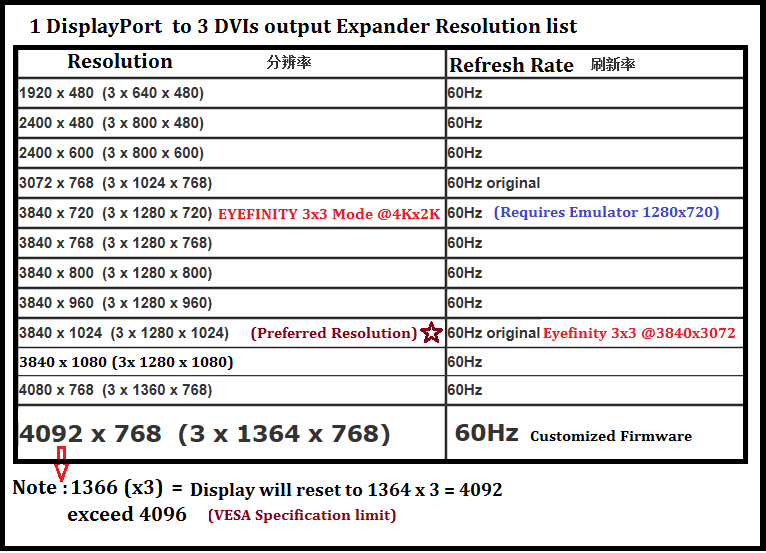

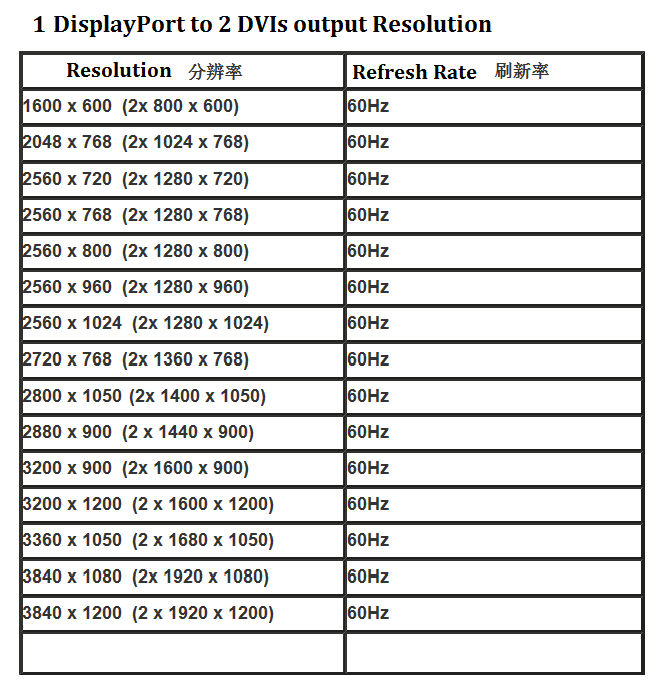

- Supports resolutions up to 3840x1024 when connected to three displays from one displayPort device or support 3840x1080 resolution @60Hz for one display for Windows XP, Windows 7/8, Ubuntu, Linux O/S.

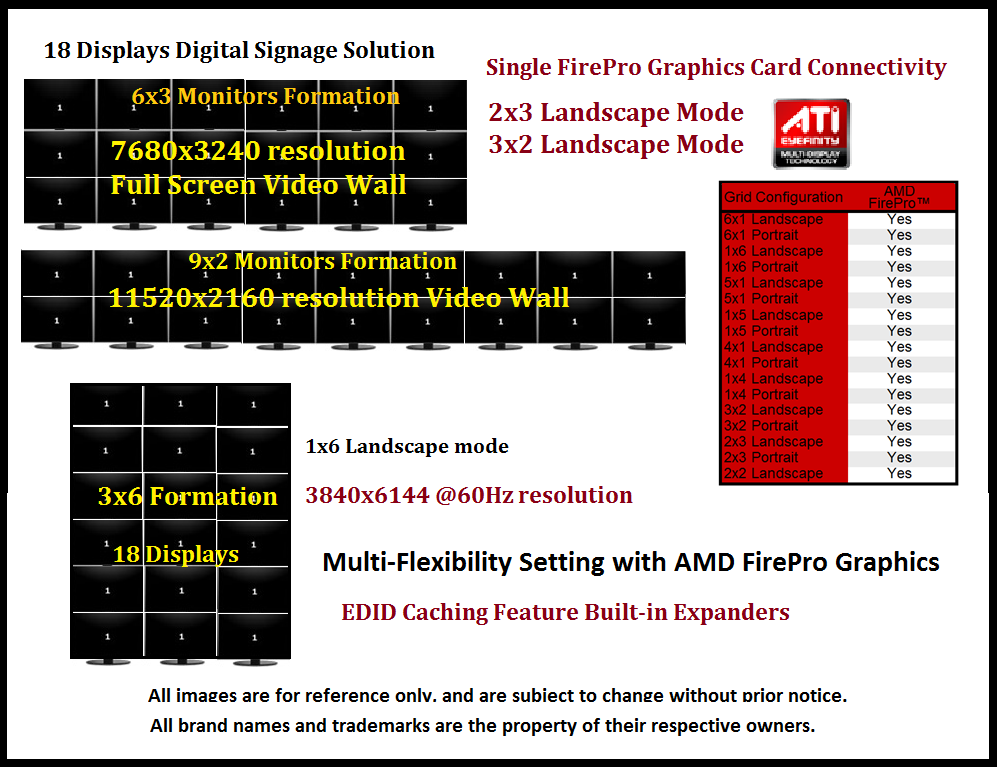

- Easy to configure and add up to "Maximum 18 Displays" in one resolution for commercial digital signage without additional software.

- Hot plug compatible, does not require system shut down

- Supports DisplayPort 1.2a output devices. Eyefinity mode support only by AMD Graphics card.

- Compatible with all existing AMD FIREPRO workstation DisplayPort 1.2 graphics cards.

- Completely silent operation and portable.

- Supports smart EDID caching hardware integrated (No monitor display drop-out for monitor disconnection or power off)

.

Note : To reset the setting configuration after caching EDIDs, you are required to unplug the power input to the Expander hubs for reconfiguration if there is conflict in the monitors setting. Power off the system will not reset the Expander hub EDID caching info stored,

.

The DisplayPort 1.2 SST solution is designed to support the following Microsoft Windows® platforms:

◾Windows 10  version

◾Windows 8 64-bit version

◾Windows 7 32/64-bit version

Reference information on how to enable multiple displays with DisplayPort 1.2 Expander using AMD FIREPRO graphics products :

◾DisplayPort 1.2 Expander Hubs

◾A supported AMD graphics solution with DisplayPort 1.2 output

◾AMD Catalyst™ Software Suite Version 14.12 or later available, here.

The AMD solution for driving multiple displays with DisplayPort 1.2 Expander is designed with “plug and play” usability in mind.  Once the Expander output to monitors are connected, the displays will be enabled in the system as if they were connected via their own separate inputs - the displays can be configured in the usual way within AMD CatalystTM Control Center

Graphic Card Compatibility :

- AMD FIREPRO Workstation graphics cards series. (Recommend AMD)

- Hardware does not support DisplayPort 1.1 devices.

- Nvidia Workstation Graphics DisplayPort 1.2 output

.

** Special custom resolution supported :

.

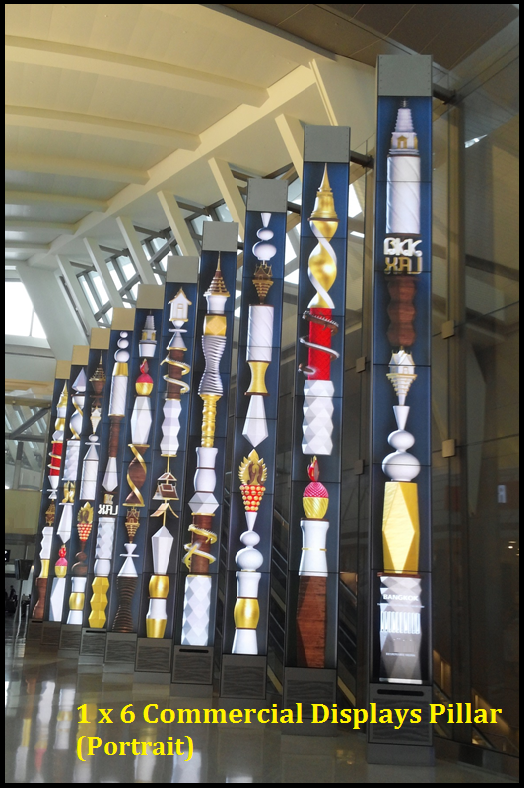

Pillar Displays Infotainment Solution :

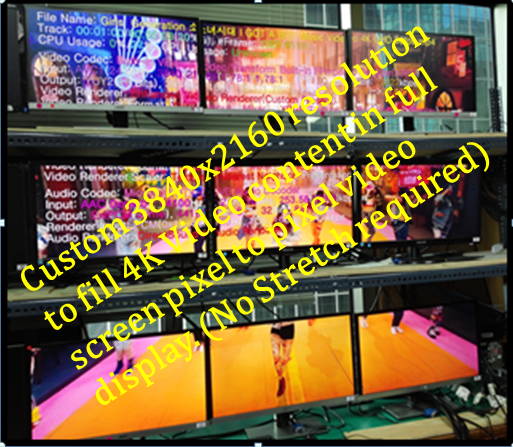

Only by special request :  Configure Eyefinity resolution 3x3 mode setting at custom resolution setting @3840x2160 running 4Kx2K Video content to fit in full screen mode for one video wall displaying avoiding using "stretching" option in Video player as shown below :

All images are for reference only, and are subject to change without prior notice.
All brand names and trademarks are the property of their respective owners.

Established as an OEM/ODM design center and service by a group of experienced engineers of over 15 years in the graphics solution for the IPC business, GXore Inc. Group has integrated the resources and competencies of Hong Kong, Taiwan and China. With its logistic subsidiary in Hong Kong, GXore Inc. group is empowered with a flexible global logistics. Leveraging the sales & finance strength of Taiwan, it has also established R&D Design House; Partner's manufacturing facilities (ROHS), QA center & After-sale RMA service center in China. Since its inception, GXore Inc. group has been specializing in IPC graphics design and manufacturing, providing the ODM as well as the customized OEM services to US, Europe, Japan and Korea. GXore Inc. group’s goal is to fully satisfy every demand of every customer by the highest standard of product quality in the most efficient way.

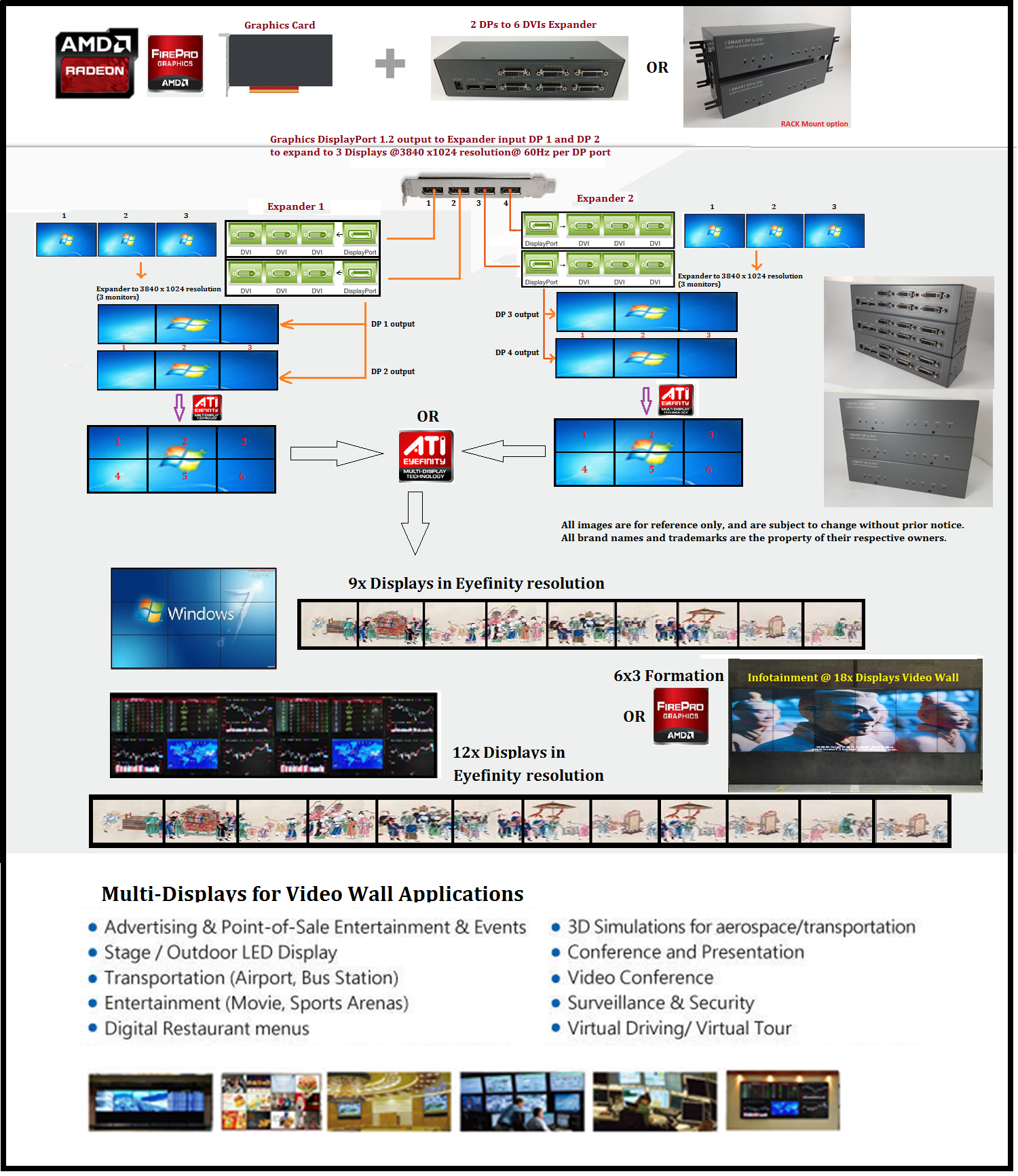

Application
