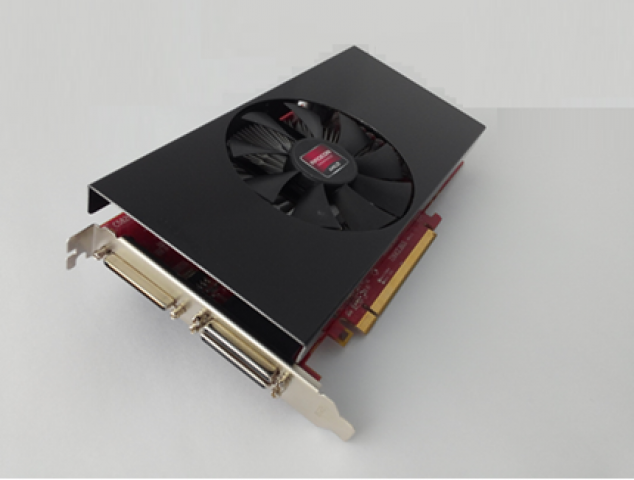

Performance R7360VC(H)G5-J12 4GB GDDR5 @12x UHDs, SMART EDID caching, HDR Edition

1500Mhz memory clock (6 Gbps GDDR5) (128-bit)

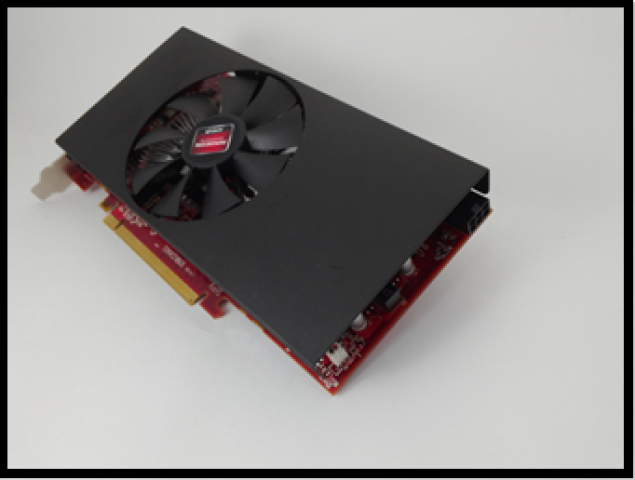

FAN sink Cooler (dual slot)

Temperature Control FAN keeps the noise level absolutely minimal and only increases the speed to improves the air flow and facilitates a highly efficient ventilation supports the cooling of the graphics card work load.

12 x UHD ports @1080p or 6 sets expander of 3840 x 1080 resolution display. Support Audio output to 6x pairs (12) of UHD monitors.

SMART EDID caching (No monitor loss during disconnection).

Features "No Tearing Video Effect" in one Eyefinity resolution Video Wall.

6 independent Audio channels supported. (DDMAs)

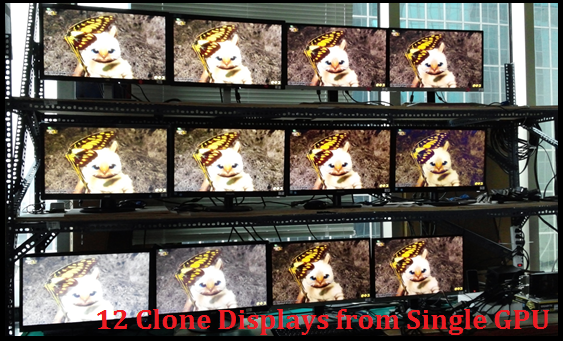

UHDs resolution display for clone, extend mode and 12 displays in one Eyefinity 3x2 mode configuration @11520 x 2160 resolution. (12K)

Audio Technology supported - 6 independent Audio channels.

• DDM Audio

• 7.1-channel audio bitstreaming via HDMI® or DisplayPort

• Supports LPCM, AC-3, AAC, Dolby TrueHD and DTS Master Audio formats

AMD PowerPlay Management technology

• Automatic power management with low power idle states

Bezel Compensation :

Stretches display resolutions to prevent bezel interference and image distortion when displaying a single large image across multiple display.

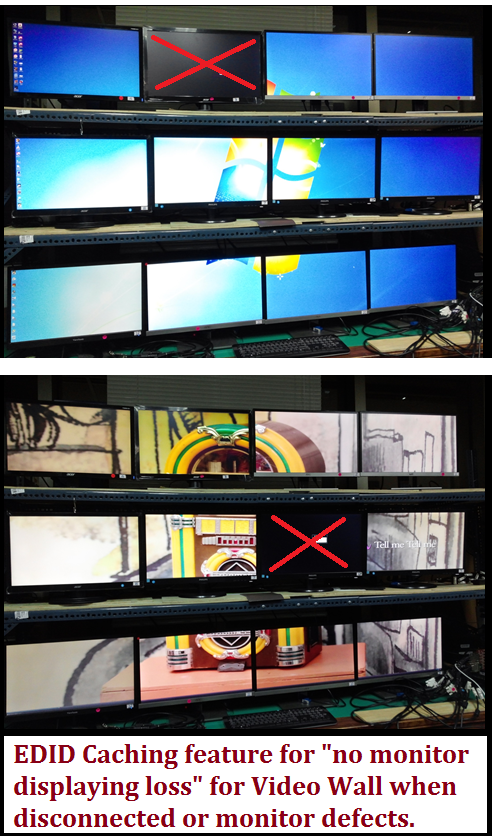

Support EDID caching for no monitors loss on commercial Digital Signage, Video Wall, Infotainment etc....

EDID caching feature

• EDID is information about supported display resolutions and modes that is stored on display such as Monitor, TV or projector.
• In Windows 7, 8, 10 if you unplug a display that will trigger a hot plug event which may reconfigure your displays.
• With the EDID cached info., the OS will always think the display is attached.
• Provide consistent EDID cached info. to ensure video is displayed correctly even when monitors is dis-connected or defected.

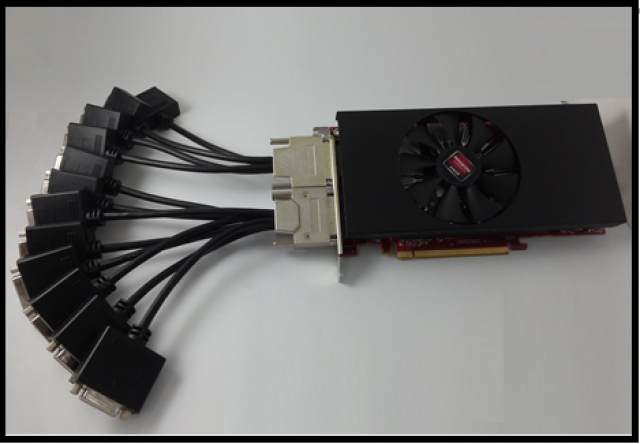

Eyefinity mode 12 displays supported only. (12 DVI/HDMI Displays)

Independent resolutions, refresh rates, color controls,

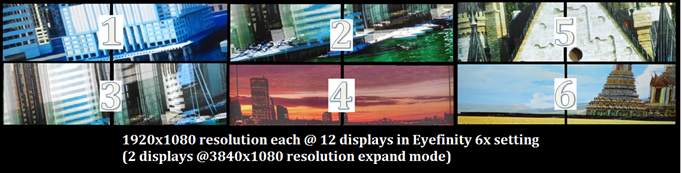

Display Grouping in 6 pairs (12) of 3840x1080 resolution or 2 monitors combination per extend split screen display into 12 displays.

Combine multiple displays to behave like a single large display in extend mode.

Discrete Digital Multi-Point Audio (DDMA) x 6 channels per card (via HDMI audio)

Flexible Monitors Formation (Eyefinity)

Eyefinity 2x2 mode for 8 Displays (7680x4320 (8K video))
Eyefinity 1x5 mode for 10 Displays (38400x1080)
Eyefinity 3x2 mode for 12 Displays (6x 3840x2160 displays or 12x 1920x1080) displays

Best Solution for 6/8/10/12 Displays with one Video Playback in UHD resolution Video Wall on one GPU design.

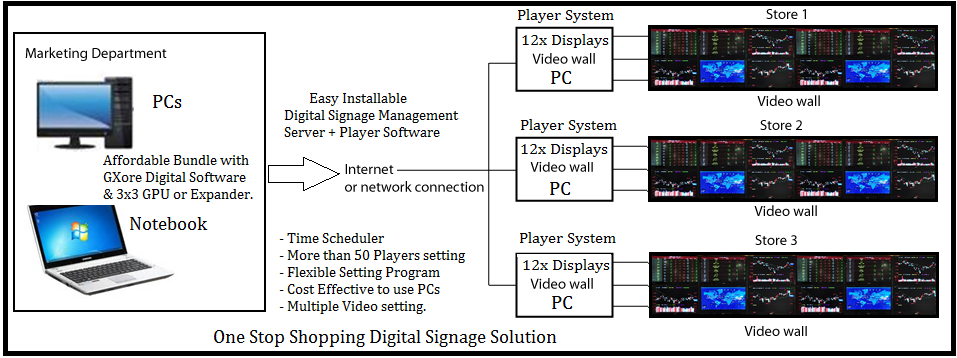

Sowing the Commercial  Digital Signage  Market :  Next Trend in 4K/8K Digital demand

Design for enabling UHD 4K/8K multi-screen display walls designed to attract, inform and engage audiences or foster collaborative interaction and decision making. Such configurations include:

• Advertising & Point-of-Sale (e.g. digital billboards, posters and digital menus)

• Command & Control, Operations or Process Control Centers (e.g. utilities, emergency services, security)

• Conferences & Presentations (e.g. auditoriums, convention centers, conference rooms) • Entertainment/Infotainment & Events (e.g. sports arenas, movie theaters, concerts)

• Informational Displays • Simulation & Training (e.g. flight, automobile or ship’s bridge simulators)

• Video Conferencing with multi-audio conferencing.

• UHD 4K, 3D Gaming and Entertainment

Powerful, flexible and affordable multi-display graphics product the display wall market besides gaming entertainment, has been waiting for–offering the lowest TCO for powering display walls comprised of multi-screens, 6 x high display density and long-lasting, high quality multimedia performance.

Support Multi-monitor Management Software enables you to tailor your display formation to the way you work and playback video contents, so you can manage increased amounts of information, video contents and improve your productivity.

• Breadth - increase your display work space supporting up to nine monitors.
• Depth - create multiple layers of display workspace with Multi-Desk for up to 4 x video playback content in one monitor.

Flexible and easy to use :

Managing independent monitor display features for work and commercial sector :

• Determine the behavior of pop-up windows and dialog boxes in different applications
• Switch between desktop with a mouse click or "Hot Key"
• Vary your settings from one application to the next
• Customize features to an application

Increase your work productivity for multi-Monitors display :

• Transparent windows and menus
• " Always-on-Top"
• Multi-Desk properties
• Cycle through desktops view
• Move To Monitor
• Internet Explorer extension

See more. Do more. Flexibly to tailor to your needs !

AMD Eyefinity technology enables you to run up to four independent and simultaneous displays with a single graphics card. By expanding your field of view across multiple high-resolution monitors, you can see more detail than ever, helping to increase your workflow productivity. You can manage multitasking more efficiently, and view more data, applications, and images at once.

HD Gaming and Entertainment Solution @ Direct2Easy Connect.

Innovative graphics display capabilities enabling 3 times massive desktop workspaces and ultra-immersive visual environments for the ultimate HD Gaming and computing experience.

Bezel Compensation Utility Feature :

Bezel Compensation Support : Driver level bezel correction allows you compensate for the dead space between your LCDs and converts this area into a blind spot, rather than a hard stop. Prior to introduction of bezel correction, textures would end on one monitor and abruptly start on the second, creating a very disjointed image. The bezel correction works by creating a custom resolution for your configuration and broadcasting this as the native setting for all your apps. Bezel correction is an optional step when setting up a new Eyefinity group in the Catalyst control center, so make sure you don’t miss it. You might not notice it in a racing game when looking at the grass or sky, but it will stick out like a sore thumb when you’re looking at a face that has been incorrectly split in two by a 4-inch bezel.
