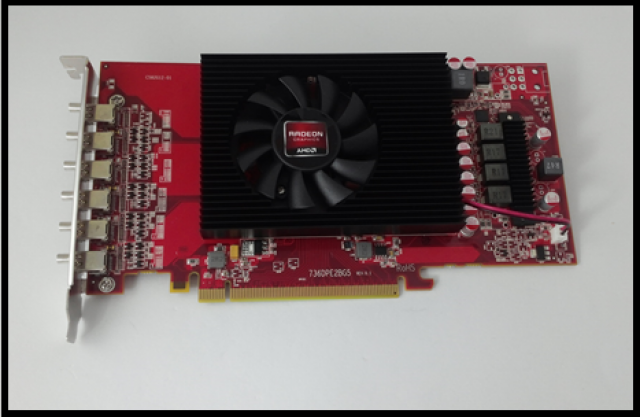

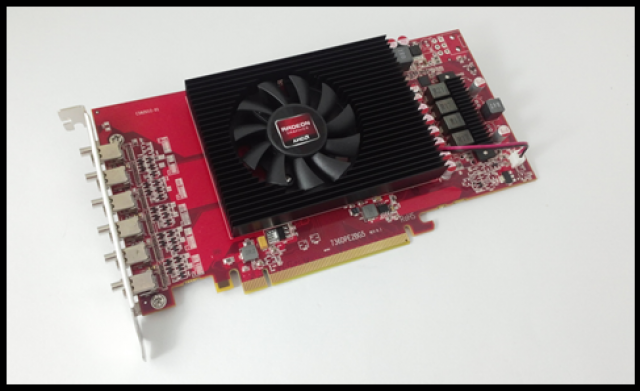

ATX G7360DPG5, 4GB GDDR5, 6x mDPs 1.2 , HDR, VSR edition
|
GPU | AMD Radeon™ R7 360 |
GPU Core Clock | 900Mhz core clock |
Video Memory | 4GB GDDR5 graphics memory |
Stream Processors | 768 SP |
Memory Clock/Bandwidth | 1125Mhz GDDR5 (4.5Gbps clock / 128-bit) |
APIs supported | DirectX® 12, OpenGL® 4.5, Vulkan™, Mantle, Open CL 1.2 |
BUS Interface | PCIe® 3.0 compliant, x16 |
Dimension / Size | ATX size 208.15mm x 111.15mm Single-slot, fits into 4U, half-height / full-height, full-length chassis PCs. |
FAN Cooler | FAN sink Cooler (Single slot) Temperature Control FAN keeps the noise level absolutely minimal and only increases the speed to improves the air flow and facilitates a highly efficient ventilation supports the cooling of the graphics card work load. |

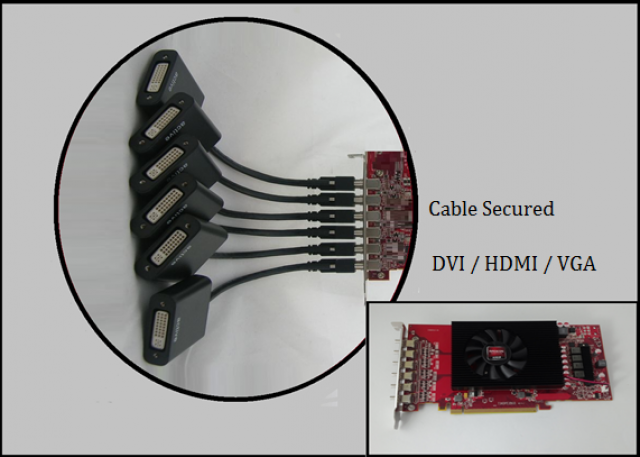

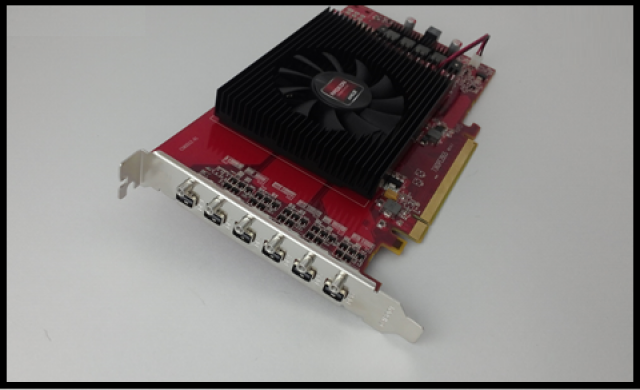

Display Ports Output | 6x mDisplayPort 1.2 output. Discrete Digital Multi-Point Audio capability. (6 x DDMAs). Additional 3.3V power circuitry to support external dongles driving compatibility. |

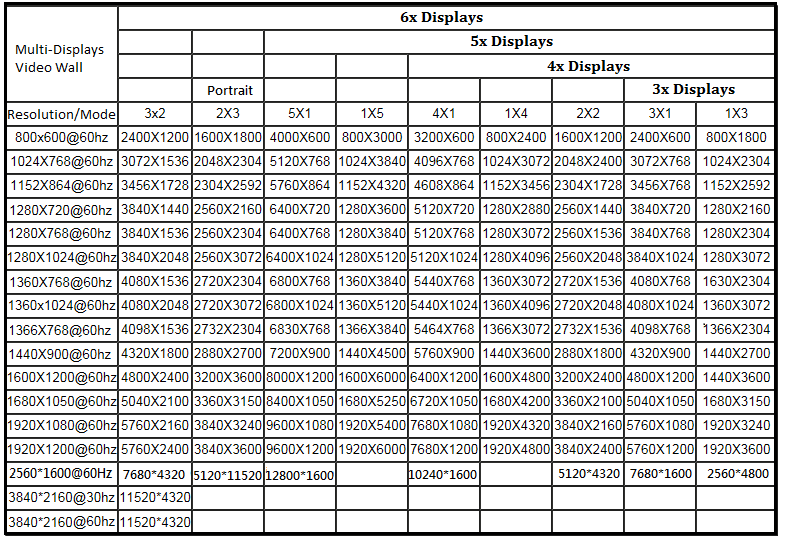

Maximum Resolution | Maximum DisplayPort 1.2 resolution of 4096 x 2160, 24 bits per pixel at 60Hz. Eyefinity resolution supported : 7680 x 4320 resolution 60Hz (Eyefinity 2x2 mode) (4K x 4) 19200 x 2160 resolution 60Hz (Eyefinity 5x1 mode) (4K x 5) 11520 x 4320 resolution 60Hz (Eyefinity 3x2 mode) (4K x 6) *Supports Curved UltraWide (21:9) QHD displays @3440x1440, 2560x1080 resolution Wide screen displaying* 1080p VSR @ 2560x1440 resolution. (WQHD) Support Commercial custom resolution displays or more :
|
Power Consumption | > 65 watts (full load) (No external power input required) System Power Supply requirement : 500 watts or above. |
Accessories | CD Driver, Quick Installation Manual. |
O/S support | - Windows® 10 32/64-bit |
Feature Summary | Image quality enhancement technology
AMD Eyefinity multi-display technology
AMD App Acceleration
AMD HD Media Accelerator Unified Video Decoder (UVD)
Video Codec Engine (VCE)
Enhanced Video Quality features
Advanced video color correction
AMD HD3D technology
Cutting-edge integrated DisplayPort support
Advanced audio capabilities (AMD True Audio Technology supported)
AMD PowerPlay Management technology
AMD Project FreeSync Support (DDR) Project FreeSync (DDR) is an AMD effort to leverage industry standards, like DisplayPort Adaptive-Sync, to deliver dynamic refresh rates. Dynamic refresh rates synchronize the refresh rate of a compatible monitor to the framerate of a user’s AMD Radeon™ R7 360 graphics to maximally reduce input latency and reduce or fully eliminate stuttering/juddering/tearing during gaming and video playback. Bezel Compensation : Stretches display resolutions to prevent bezel interference and image distortion when displaying a single large image across multiple display. No Video Tearing effect supported: |
Virtual Super Resolution (1080p HDMI TV)
This technology allows a user to improve visual quality in games and other content by rendering at a high resolution (up to 2560x1440 WQHD) and then displaying that content at a lower resolution, which is natively supported by the monitor.
When this feature is enabled, Virtual Super Resolutions beyond the native resolution of the display device will be available in a wide variety of games and applications, including the Windows® desktop. Effectively, VSR provides a Super Sampling Anti-Aliasing (SSAA) feature for the games and applications that do not natively support that functionality.
Example : 2x HDMI displays (1920x1080) VSR@2560x1440 60Hz (WQHD)
Eyefinity 2x1 mode @ 5120x1440 60Hz
Option Low cost Digital Signage software : Single GPU for multi standalone digital signage or one UHD resolution Video Wall.
Support No Video Tearing in 6x Displays Video Wall.
Expander Hub support up to 18 Displays Formation
Recommended Hardware System configuration for Multi-video’s playback :
(For Reference only)
- Processor : Intel Xeon CPU E3-1231 v3 @3.40GHz 3.40 GHz or Intel Xeon E3-1585 v5, Xeon E5-2670 @2.6GHz or E3 1500 v5 CPU (Major required CPU)
- Installed System Memory : 16.0 GB or above
- Operating System : Windows 7 / 8.1 / 10 64-bit O/S
- Motherboard : GA-H97M-D3H or Sever Board similar
- Power Supply : 500 watts PSU or above
****************************************************************************************
All images are for reference only, and are subject to change without prior notice.
All brand names and trademarks are the property of their respective owners.
Established as an OEM/ODM design center and service by a group of experienced engineers of over 15 years in the graphics solution for the IPC business, GXore Inc. Group has integrated the resources and competencies of Hong Kong, Taiwan and China. With its logistic subsidiary in Hong Kong, GXore Inc. group is empowered with a flexible global logistics. Leveraging the sales & finance strength of Taiwan, it has also established R&D Design House; Partner's manufacturing facilities (ROHS), QA center & After-sale RMA service center in China. Since its inception, GXore Inc. group has been specializing in IPC graphics design and manufacturing, providing the ODM as well as the customized OEM services to US, Europe, Japan and Korea. GXore Inc. group’s goal is to fully satisfy every demand of every customer by the highest standard of product quality in the most efficient way.
Application
| Sowing the Commercial Digital Signage Market : Next Trend in 4K/8K Digital demand Design for enabling UHD 4K/8K multi-screen display walls designed to attract, inform and engage audiences or foster collaborative interaction and decision making. Such configurations include: • Advertising & Point-of-Sale (e.g. digital billboards, posters and digital menus) • Command & Control, Operations or Process Control Centers (e.g. utilities, emergency services, security) • Conferences & Presentations (e.g. auditoriums, convention centers, conference rooms) • Entertainment/Infotainment & Events (e.g. sports arenas, movie theaters, concerts) • Informational Displays • Simulation & Training (e.g. flight, automobile or ship’s bridge simulators) • Video Conferencing with multi-audio conferencing. • UHD 4K, 3D Gaming and Entertainment Powerful, flexible and affordable multi-display graphics product the display wall market besides gaming entertainment, has been waiting for–offering the lowest TCO for powering display walls comprised of multi-screens, 6 x high display density and long-lasting, high quality multimedia performance.
|
| Support Multi-monitor Management Software enables you to tailor your display formation to the way you work and playback video contents, so you can manage increased amounts of information, video contents and improve your productivity.
Flexible and easy to use : Managing independent monitor display features for work and commercial sector :
Increase your work productivity for multi-Monitors display :
|
Discrete Digital Multi-Point Audio (DDMA). Max 6x Independent Audio for DP/HDMI output. | See more. Do more. Flexibly to tailor to your needs ! AMD Eyefinity technology enables you to run up to four independent and simultaneous displays with a single graphics card. By expanding your field of view across multiple high-resolution monitors, you can see more detail than ever, helping to increase your workflow productivity. You can manage multitasking more efficiently, and view more data, applications, and images at once. |
| HD Gaming and Entertainment Solution @ Direct2Easy Connect. Innovative graphics display capabilities enabling 3 times massive desktop workspaces and ultra-immersive visual environments for the ultimate HD Gaming and computing experience. |
| Bezel Compensation Utility Feature : Bezel Compensation Support : Driver level bezel correction allows you compensate for the dead space between your LCDs and converts this area into a blind spot, rather than a hard stop. Prior to introduction of bezel correction, textures would end on one monitor and abruptly start on the second, creating a very disjointed image. The bezel correction works by creating a custom resolution for your configuration and broadcasting this as the native setting for all your apps. Bezel correction is an optional step when setting up a new Eyefinity group in the Catalyst control center, so make sure you don’t miss it. You might not notice it in a racing game when looking at the grass or sky, but it will stick out like a sore thumb when you’re looking at a face that has been incorrectly split in two by a 4-inch bezel. |
