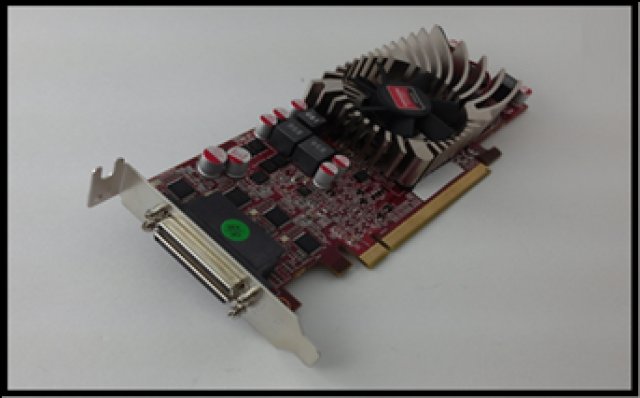

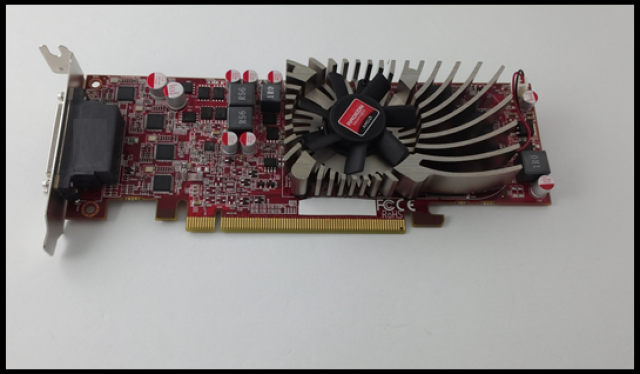

SFF 77MVHLG5-F65 , 1GB GDDR5, EDID Caching, 6x UHDs 1080p Edition (Tailored for 6x1, 1x6, 1x4, 2x3 Landscape Formation Video Wall)
|
| Specification | |
| GPU | 77M GPU-Based Graphics / Video Controller |
| GPU Core Clock | 700Mhz core clock |
| Video Memory | 1GB GDDR5 (128-bit) |
| Memory Clock / Bandwidth | 1125Mhz GDDR5 (5 Gbps GDDR5) |
| APIs supported | OpenGL 4.2 OpenCL 1.2 DirectX 11.1 |
| BUS | PCI Express x16 Gen 3.0 |
| Cooler | Discreet active FAN cooler (Single slot, Copper Core, Temp-control FAN speed) |

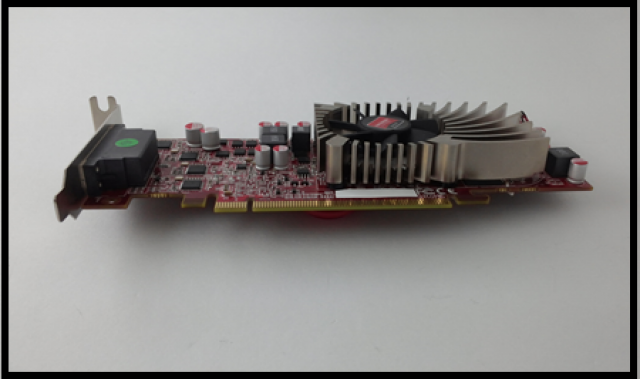

| Board Size | SFF (Low Profile) 20.9cm (length) * 11cm (height); SFF size Single-slot, fits into 2U Rack mount / 4U, half-height / full-height, full-length chassis |
| Display Output | 6x UHD Ports (No dongle required) / Direct2Display x6 for one 4K video wall displaying. |

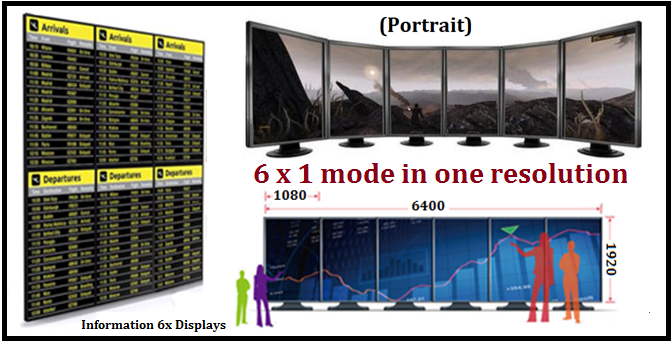

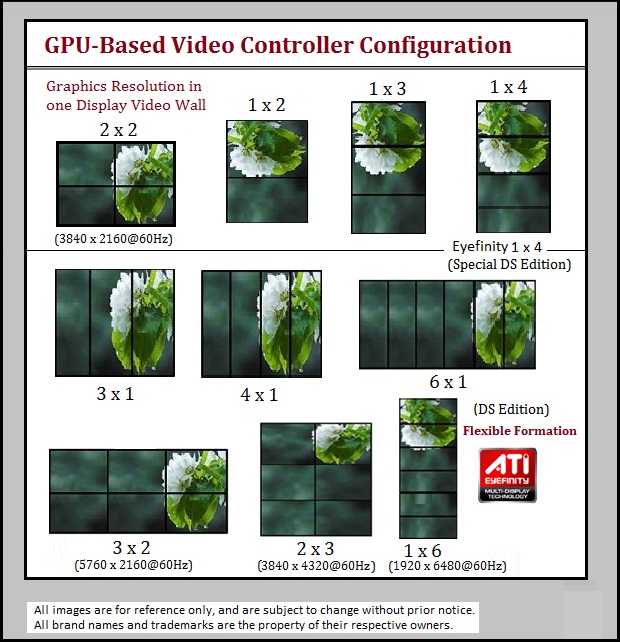

Maximum Resolution | 9600 x 1200 resolution Surround Viewing. (Eyefinity 5x1 mode) 5760 x 2400 resolution (6* 1920x1200 DVI monitors) Eyefinity 2x2 / 3x2 mode / 2x3 / 4x1 / 1x4 landscape / 5x1 / 1x5 / 6x1 / 1x6 Landscape or Portrait. Independent 6 x Clone or Extend Mode in Landscape or Portrait supported. No dongles required. |
| Power Consumption (loaded) | < 65 Watts (No external power input required) System Power Supply requirement : 500 watts or above. |
| Accessory | 2 x 6 UHDs cables |
| O/S support | - Windows® 10 - Windows 8.1 32/64-bit - Windows 7 32/64-bit - Windows Embedded Standard 7 32-bit - Windows Embedded Standard 7 64-bit - Windows Server® 2012 R2 64-bit - Windows Server 2008 R2 64-bit - Linux® / Ubuntu Linux |
| Remark | Direct2Display6x EyeFinity (No dongles) AMD Eyefinity multi-display technology
**This Card only outputs DVI-D (does not supply VGA signal)
|
| Additional Feature | Soft EDIDs Emulation and force EDIDs caching feature. *Bezel Compensation and Software Projector Overlapping features.
Bezel Compensation : Stretches display resolutions to prevent bezel interference and image distortion when displaying a single large image across multiple display. Projector Overlap Support Easily refine display alignment settings when configuring multiple, high resolution display devices or projectors. Full 30-bit Display Pipeline Supports a full 30-bit display pipeline producing more than one billion colors (10-bit per RGB component) is ideally suited for applications that benefit from accurate color reproduction and superior visual quality. Software support for Flexible Monitors Formation (One display wall) designed for the Digital Signage :
|
Software for Configurable Commercial Popular Monitor Formation
Support EDID emulation caching / Force EDIDs feature :
Supports EDID management with the display driver installation. EDID reports monitors’ capabilities, including its available resolutions, refresh rates, and display timings. When there is a missing EDID or bad signal communication due to a disconnected display, the feature saves the monitor’s EDID, keeping your configuration intact. You can alternatively force an EDID on a graphics card output, with benefits in a wide variety of usage scenarios with multi-displays installation.
Software Setting for Projectors Overlapping Supported:
Option Digital Signage software :
Digital Signage Software displaying for 6x ~ 12x monitors for commercial displaying individually or as one video wall : Flexible configuration @ low cost
Recommended Hardware System configuration for Multi-video’s playback :
(For Reference only)
Processor : Intel Xeon CPU E3-1231 v3 @3.40GHz 3.40 GHz or Intel Xeon E3-1585 v5, Xeon E5-2670 @2.6GHz or E3 1500 v5 CPU (Major required CPU)
- Installed System Memory : 16.0 GB or above
- Operating System : Windows 7 / 8.1 / 10 64-bit O/S
- Motherboard : GA-H97M-D3H or Server Boards similar
- Power Supply : 500 watts PSU or above
****************************************************************************************
All images are for reference only, and are subject to change without prior notice.
All brand names and trademarks are the property of their respective owners.
