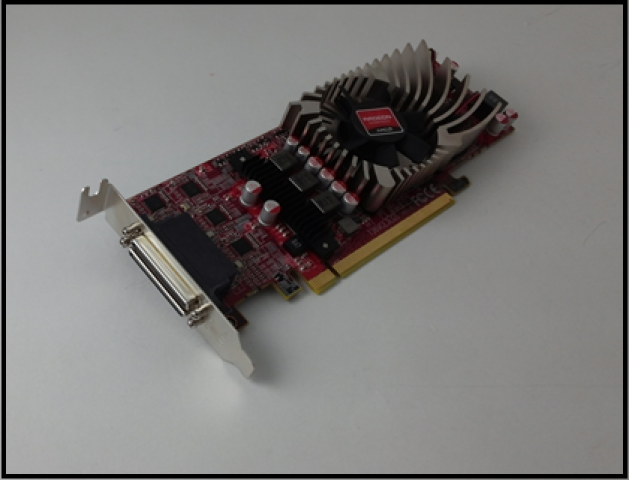

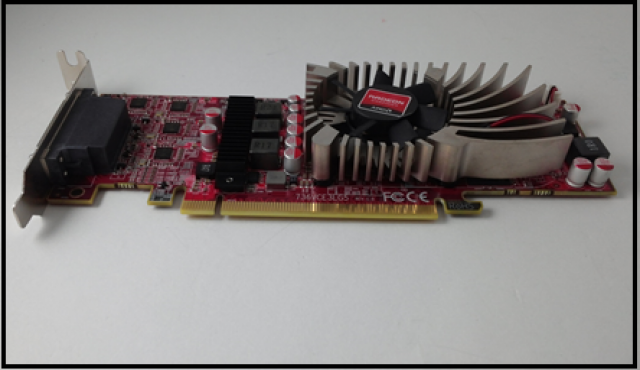

R7360VC(H)LG5, EDID Caching, 4GB GDDR5, 6x UHDs @VSR 2560x1440 GREEN Edition.
|
GPU | AMD Radeon™ R7 360 |
GPU Core Clock | 800Mhz core clock |
Video Memory | 4GB GDDR5 graphics memory |
Stream Processors | 768 SP |
Memory Clock/Bandwidth | 1250Mhz GDDR5 (5Gbps clock / 128-bit) |
APIs supported | DirectX® 12, OpenGL® 4.5, Vulkan™, Mantle, Open CL 1.2 |
BUS Interface | PCIe® 3.0 compliant, x16 |
Dimension / Size | 191.14mm x 68.9mm (Low Profile SFF size) Single-slot, fits into 2U Rack mount / 4U, half-height / full-height, full-length chassis PCs. |
FAN Cooler | Discreet active FAN cooler (Single slot, Copper Core, Temp-control FAN speed) |
Display Output | 6x DVI 1920x1200 (1080p) displays output. VSR 1920x1080 to 2560x1440 @60Hz WQHD resolution. Support 4 sets of 3840x2160 @60hz resolution (high speed HDMI 2.0) + 2x 1080p Supports 6x UHD @VSR 2560x1440 WQHD resolution. *Support commercial custom resolution displaying digital signage* |
Maximum Resolution | Maximum 1920 x1200 resolution at 60Hz. Eyefinity resolution supported : 7680 x 2880 resolution 60Hz (VSR 2560x1440 @Eyefinity 3x2 mode) 5760 x 2160 resolution 60Hz (Eyefinity 3x2 mode) 9600 x 1200 resolution 60Hz (Eyefinity 5x1 mode) 7680 x 4320 resolution 60Hz (Eyefinity 2x2 mode) (4K HDMI 2.0@60Hz x 4 ports) *Supports Curved UltraWide (21:9) QHD displays @3440x1440, 2560x1080 resolution Wide screen displaying* (HDMI) Support Commercial custom resolution displays or more :
|
Power Consumption | > 60 watts (full load) (No external power input required) |
Accessories | CD Driver, 2 sets of VHDCI to 3x high speed UHD output cable. Quick Installation Manual. |
O/S support | - Windows® 8.1 32/64-bit |
Feature Summary | Image quality enhancement technology
AMD Eyefinity multi-display technology
AMD App Acceleration
AMD HD Media Accelerator Unified Video Decoder (UVD)
Video Codec Engine (VCE)
Enhanced Video Quality features
Advanced video color correction
Advanced audio capabilities (AMD True Audio Technology) (HDMI)
AMD PowerPlay Management technology
AMD Project FreeSync Support (DDR) Project FreeSync (DDR) is an AMD effort to leverage industry standards, like DisplayPort Adaptive-Sync, to deliver dynamic refresh rates. Dynamic refresh rates synchronize the refresh rate of a compatible monitor to the framerate of a user’s AMD Radeon™ R7 360 graphics to maximally reduce input latency and reduce or fully eliminate stuttering/juddering/tearing during gaming and video playback. Bezel Compensation : Stretches display resolutions to prevent bezel interference and image distortion when displaying a single large image across multiple display.
|
Additional Features | Support EDID caching for no monitors loss on commercial Digital Signage, Video Wall, Infotainment etc.... No Video Tearing effect supported: EDID caching feature
on display such as Monitor, TV or projector.
which may reconfigure your displays.
Provide consistent EDID cached info. to ensure video is displayed correctly even when monitors is dis-connected or defected. |
.
Flexible Configuration Setting
.
.
Virtual Super Resolution
This technology allows a user to improve visual quality in games and other content by rendering at a high resolution (1920x1080 up to 2560x1440 WQHD) and then displaying that content at a lower resolution, which is natively supported by the monitor.
When this feature is enabled, Virtual Super Resolutions beyond the native resolution of the display device will be available in a wide variety of games and applications, including the Windows® desktop. Effectively, VSR provides a Super Sampling Anti-Aliasing (SSAA) feature for the games and applications that do not natively support that functionality.
Example : 2x displays (1920x1080) VSR@2560x1440 60Hz (WQHD)
Eyefinity 2x1 mode @ 5120x1440 60Hz
Low Cost Digital Signage for bundling : Single GPU for multi standalone digital signage or one UHD resolution Video Wall
Recommended Hardware System configuration for Multi-video’s playback :
(For Reference only)
- Processor : Intel Xeon CPU E3-1231 v3 @3.40GHz 3.40 GHz or Intel Xeon E3-1585 v5, Xeon E5-2670 @2.6GHz or E3 1500 v5 CPU (Major required CPU)
- Installed System Memory : 16.0 GB or above
- Operating System : Windows 7 / 8.1 / 10 64-bit O/S
- Motherboard : GA-H97M-D3H or Server Boards similar
- Power Supply : 500 watts PSU or above
****************************************************************************************
All images are for reference only, and are subject to change without prior notice.
All brand names and trademarks are the property of their respective owners.
