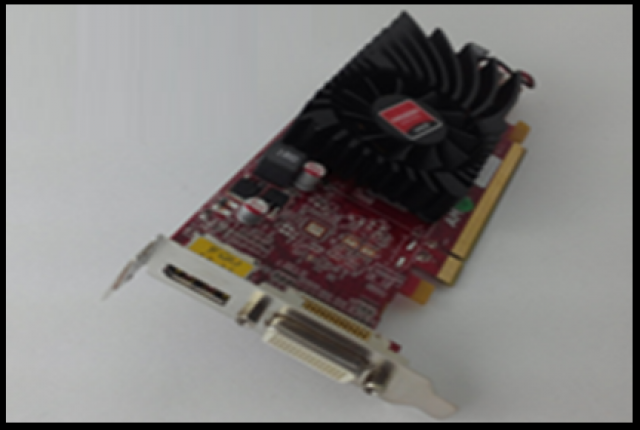

DSS3170 1GB DDR3, Low Power, IPC, Commercial Displaying
|
| GPU | DSS3170 |
| GPU Core Clock | 600Mhz core clock |
| Video Memory | 1GB DDR3 |
| Memory Clock / Bandwidth | 1333Mhz DDR3 (128-bit) (600Mhz) |
| BUS | PCI Express x16 2.0 |
| Cooler | FAN sink Cooler (Single Slot) |
| Board Size | 20.9cm (length) * 11cm (height) * 1.9cm (thick) ; SFF size Single-slot, fits into 2U Rack mount / 4U, half-height / full-height, full-length chassis PCs. |

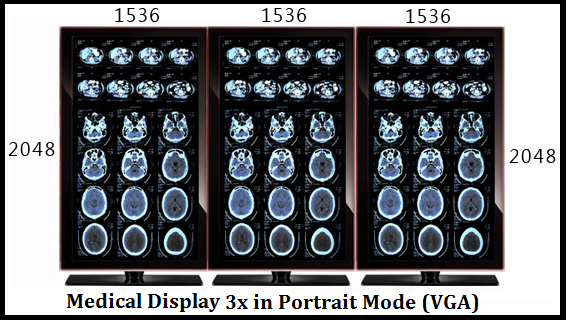

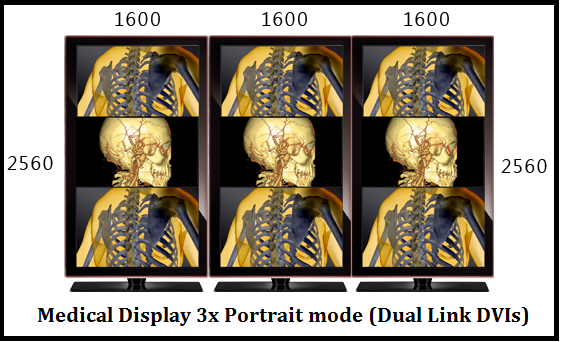

| Display Output | DMS 59 output 2 Dual link DVI / VGA Ports 3rd Displays output DP require DP to DVI or VGA dongle. Important to note : Monitors recommened to be the same models and resolution type for VGA or DVI displays. Do not support VGA + DVI combination for Eyefinity mode. Dual Link DVIs supports QSXGA (Quad Super Extended Graphics Array) display resolution of 2560x2048 pixels with a 5:4 aspect ratio Grayscale monitors primarily for medical use
|
| Power Consumption (loaded) | < 40 Watts (No external power input required) |

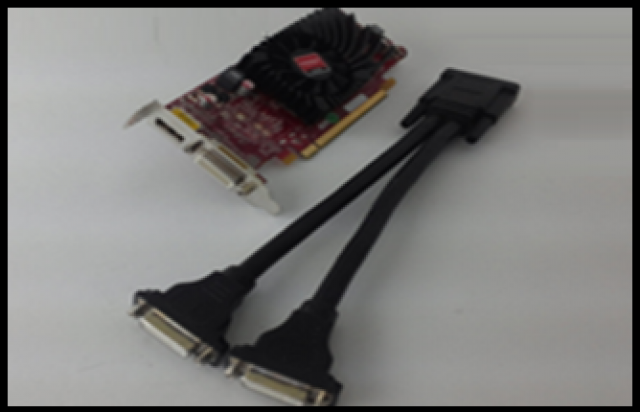

| Accessory | CD Driver, Quick Installation Manual, DMS59 cables |
| O/S support | - Windows®10 32/64-bit |

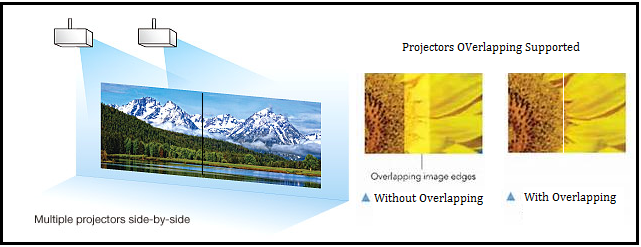

| Remark | Projector Overlap Support Easily refine display alignment settings when configuring multiple, high resolution display devices or projectors. . Full 30-bit Display Pipeline Supports a full 30-bit display pipeline producing more than one billion colors (10-bit per RGB component) is ideally suited for applications that benefit from accurate color reproduction and superior visual quality. EDID Emulation for no monitors loss when power-off or disconnection running application for Video Wall or Production Monitoring avoiding reset to Windows default Direct2Display3x EyeFinity AMD Eyefinity multi-display technology
|
.
All images are for reference only, and are subject to change without prior notice.
All brand names and trademarks are the property of their respective owners.
Established as an OEM/ODM design center and service by a group of experienced engineers of over 15 years in the graphics solution for the IPC business, GXore Inc. Group has integrated the resources and competencies of Hong Kong, Taiwan and China. With its logistic subsidiary in Hong Kong, GXore Inc. group is empowered with a flexible global logistics. Leveraging the sales & finance strength of Taiwan, it has also established R&D Design House; Partner's manufacturing facilities (ROHS), QA center & After-sale RMA service center in China. Since its inception, GXore Inc. group has been specializing in IPC graphics design and manufacturing, providing the ODM as well as the customized OEM services to US, Europe, Japan and Korea. GXore Inc. group’s goal is to fully satisfy every demand of every customer by the highest standard of product quality in the most efficient way.

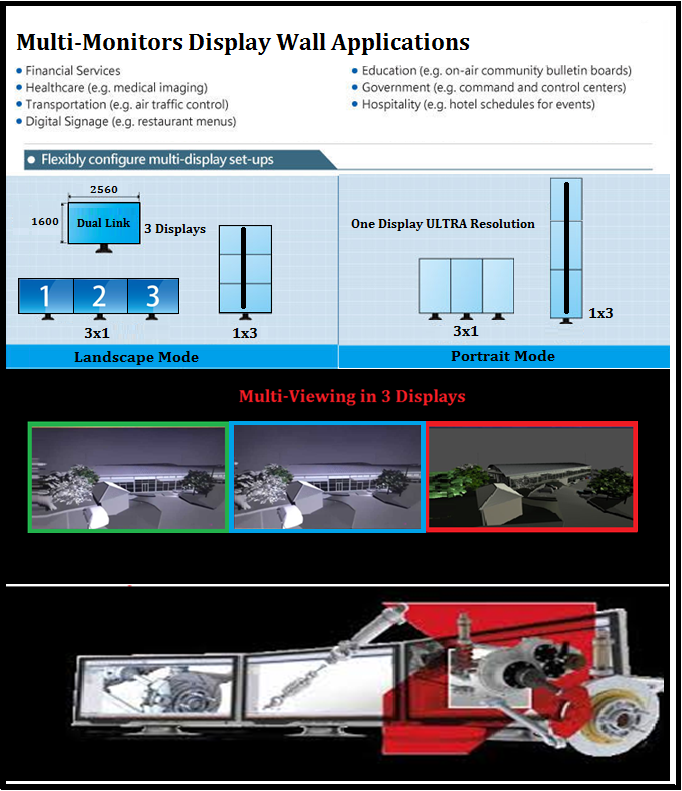

Application
