DSM5000 2GB DDR3
|
| GPU | DSM5000 |
| GPU Core Clock | 650Mhz core clock |
| Video Memory | 2GB DDR3 |
| Memory Clock / Bandwidth | 1333Mhz DDR3 (128-bit) |
| APIs supported | OpenGL 4.2 OpenCL 1.2 DirectX 11.1 |
| BUS | PCI Express x16 |
| Cooler | FAN sink Cooler (Single Slot) |
| Board Size | SFF (Low Profile) 2U |
| Display Output | 2 x DVI Ports (DVI-I) (VHDCI cable) 3 x SL DVIs - 1920 x 1080 resolution |
Maximum Resolution | 5760 x 1080 resolution (3* 1920x1080 monitors) (3x1 Eyefinity) Eyefinity 3x1, 1x3 mode Independent 3 x Clone or Extend Mode in Landscape or Portrait supported. |
| Power Consumption (loaded) | < 60 Watts (No external power input required) |

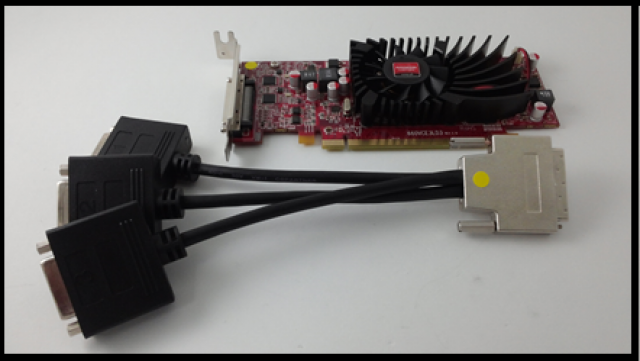

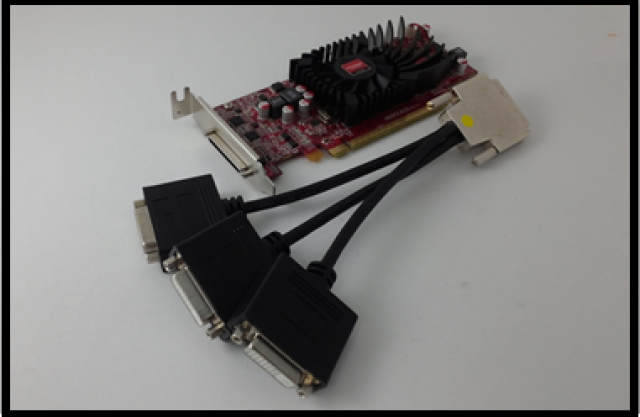

| Accessory | CD Driver, Quick Installation Manual, VHDCI 3x DVIs port cables |
| O/S support | Windows Vista/7/8/10, Windows XP. Ubunta Linux |

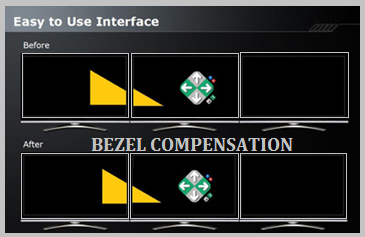

| Additional | EDID emulation, 3D Application Setting, Projector Overlapping features EDID Emulation for no monitors loss when power-off or disconnection running application for Video Wall or Production Monitoring avoiding reset to Windows default. * Designed to support "No Video Tearing Effect" in one Eyefinity UHD Video Wall. *Bezel Compensation and Software Projector Overlapping features.
* Support software 10-bits per color channel (or 30-bits per pixel) video output. Transform and send 10-bit data to corresponding displays for an unprecedented level of color support, representing images and data with incredible sharpness and clarity. |
| Remark | Direct2Display3x EyeFinity AMD Eyefinity multi-display technology
|
Supports Portrait mode and Landscape mode in 3x Medical Displays
(SL-Link DVIs resolution)
All images are for reference only, and are subject to change without prior notice.
All brand names and trademarks are the property of their respective owners.
Established as an OEM/ODM design center and service by a group of experienced engineers of over 15 years in the graphics solution for the IPC business, GXore Inc. Group has integrated the resources and competencies of Hong Kong, Taiwan and China. With its logistic subsidiary in Hong Kong, GXore Inc. group is empowered with a flexible global logistics. Leveraging the sales & finance strength of Taiwan, it has also established R&D Design House; Partner's manufacturing facilities (ROHS), QA center & After-sale RMA service center in China. Since its inception, GXore Inc. group has been specializing in IPC graphics design and manufacturing, providing the ODM as well as the customized OEM services to US, Europe, Japan and Korea. GXore Inc. group’s goal is to fully satisfy every demand of every customer by the highest standard of product quality in the most efficient way.
Application
