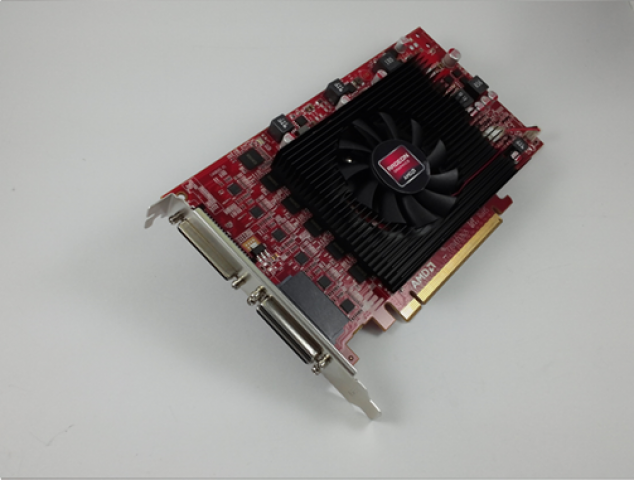

DS7812MPlus, GPU-based Video Controller, 4GB GDDR5, 12x UHD outputs (4x3, 12x1, 2x6 mode), EDID caching Edition
|
| Specification | |
| Model | DS-7812M (Single GPU) |
| GPU Core Clock | 700Mhz core clock |
| Video Memory | 4GB GDDR5 graphics memory on-board. |
| Memory Clock/Bandwidth | 1125Mhz memory clock (5Gbps GDDR5) (128-bit) |
| APIs supported | OpenGL 4.5 / OpenCL 1.2 / DirectX 12 / AMD Mantle / Shader model 5.0 |
| BUS Interface | PCIe® 3.0 compliant, x16 |
| Form Factor | Full Height, ATX size |
| Cooler | Temp. control FAN sink Cooler (single slot) Temperature Control FAN keeps the noise level absolutely minimal and only increases the speed to improves the air flow and facilitates a highly efficient ventilation supports the cooling of the graphics card work load. |
| Display Output | 12 x UHD ports @1920x1080 full HD or 6 sets (12) of 3840 x 1080 resolution display Supports 6x, 8x , 10x UHD ports @1920 x 1080 resolution. (Extend mode) |
| Maximum Resolution | HDMIs resolution display for clone, extend mode and 12 displays in one Eyefinity mode configuration @7680x3240 resolution in 4x3 monitors formation.
|
| Power Consumption | < 75 Watts |
| Additional | Support EDID caching for no monitors loss on commercial Digital Signage, Video Wall, Infotainment etc.... EDID caching feature EDID is information about supported display resolutions and modes that is stored on display such as Monitor, TV or projector.

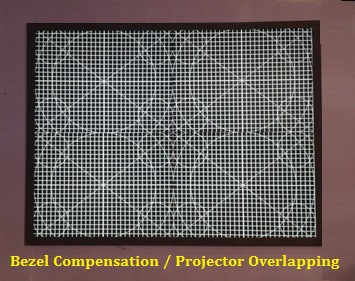

* Designed to support "No Video Tearing Effect" in one Eyefinity UHD Video Wall. *Bezel Compensation and Software Projector Overlapping features.
Projector Overlap Support Easily refine display alignment settings when configuring multiple, high resolution display devices or projectors. Full 30-bit Display Pipeline Supports a full 30-bit display pipeline producing more than one billion colors (10-bit per RGB component) is ideally suited for applications that benefit from accurate color reproduction and superior visual quality. Support 3D Applications - 3D Rendering Engine |

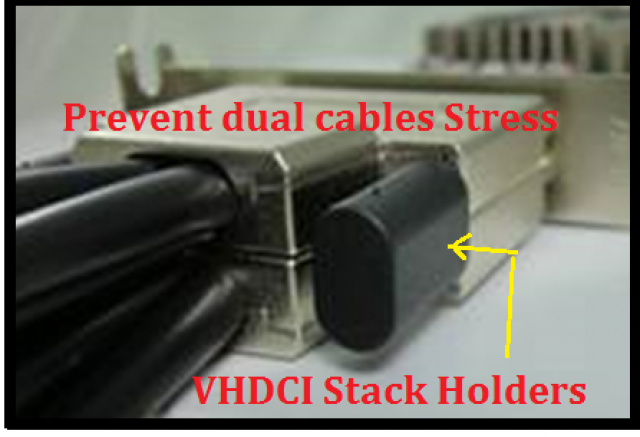

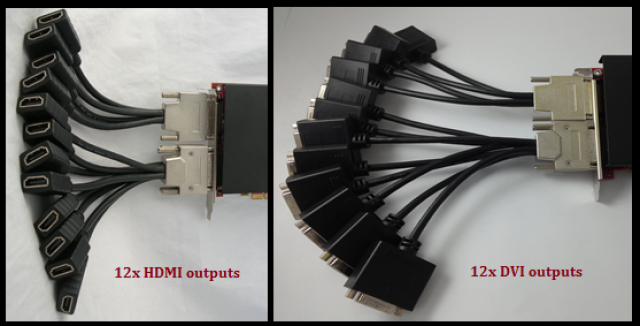

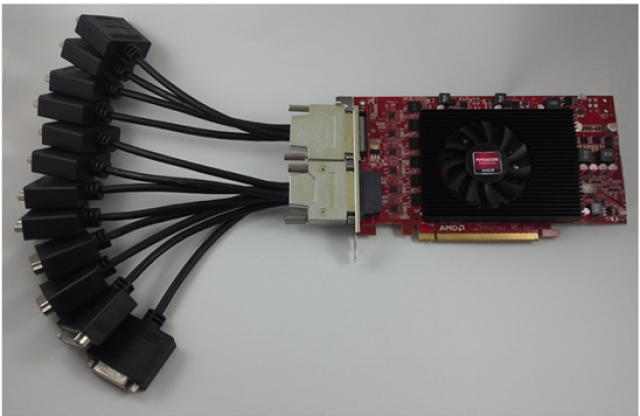

| Accessory | CD Driver, Quick Installation Manual. 3 sets x 4 UHD port cables |
| O/S support | - Windows® 10 - Windows 8.1 32/64-bit - Windows 7 32-bit - Windows 7 64-bit - Windows Embedded Standard 7 32-bit - Windows Embedded Standard 7 64-bit - Windows Server® 2012 R2 64-bit - Windows Server 2008 R2 64-bit - Linux® / Ubuntu Linux |

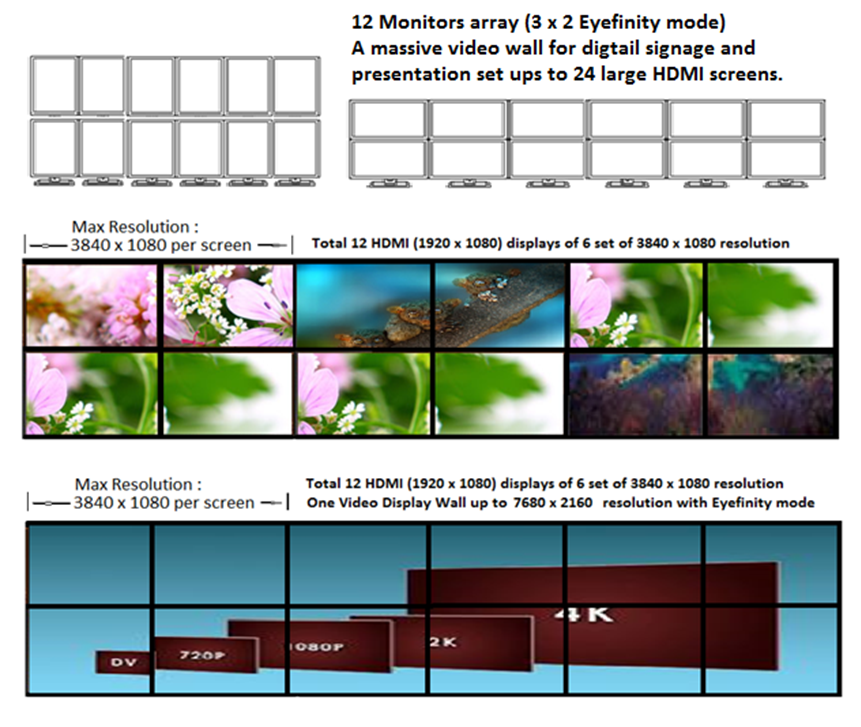

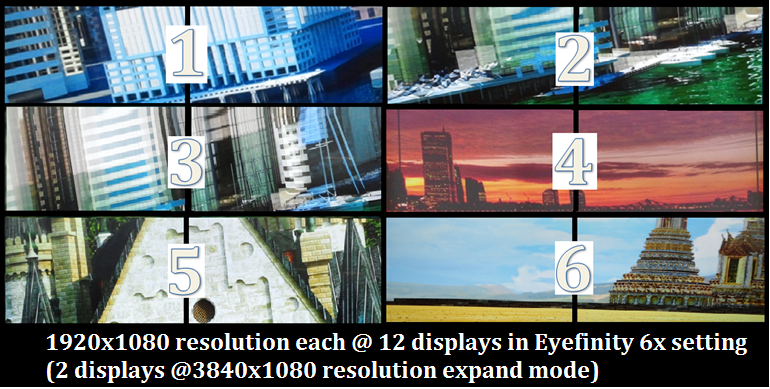

| Remark | Multi-display technology EyeFinity mode with 12x 1920x1080 for 7680x3240 UHD resolution one display Wall. Eyefinity mode 6x, 8x, 10x displays in Nx1 mode (row) supported. Displays not configured in the Eyefinity mode can be set as independent "Extend mode" displaying. Independent resolutions, refresh rates, color controls, Display Grouping in 6 pairs (12) of 3840x1080 resolution. (2 monitors combination per extend split screen of 1920x1080 display) Combine multiple displays to behave like a single large display in Eyefinity or 6x 3840x1080 extend mode. (2 monitors as a pair resolution combined) Discrete Digital Multi-Point Audio (DDMA) x 6 channels (left/right) per card (HDMI audio monitors)
 |

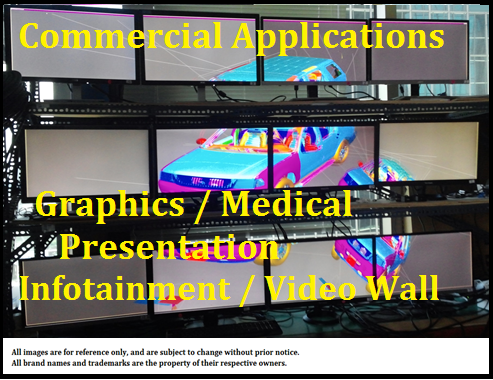

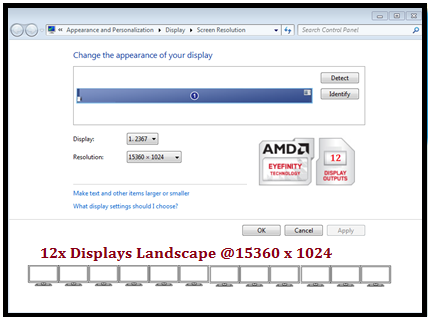

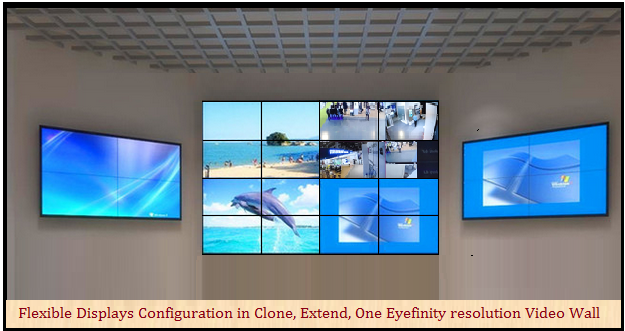

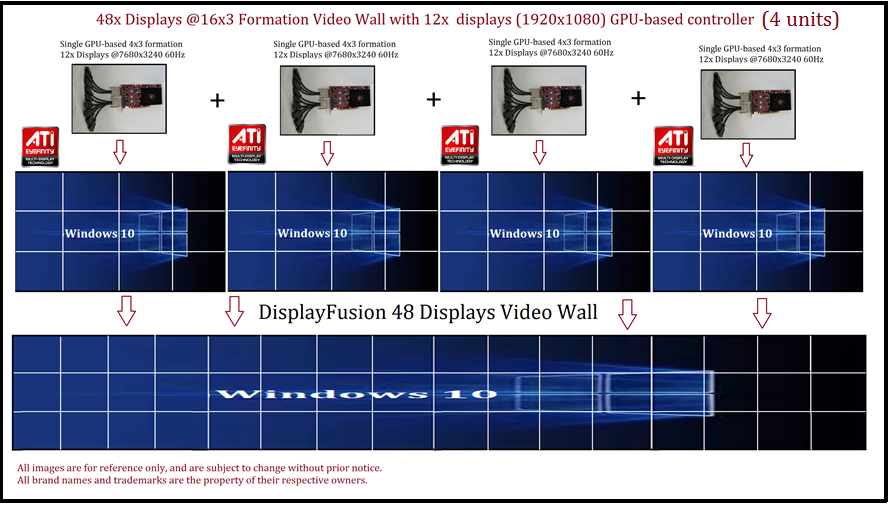

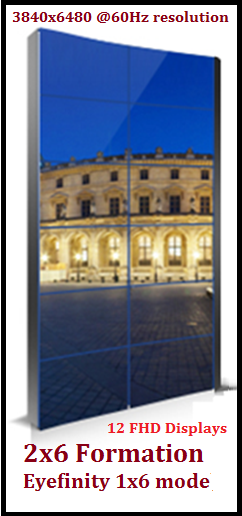

12 displays digital signage ~ One Video Wall in 4x3 Displays (Eyefinity mode @7680x3240 resolution ) Total 12x displays@ each output 1920x1080 full HD resolution.

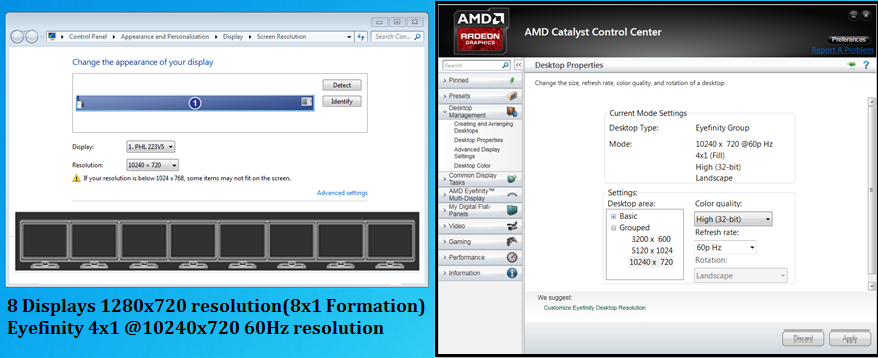

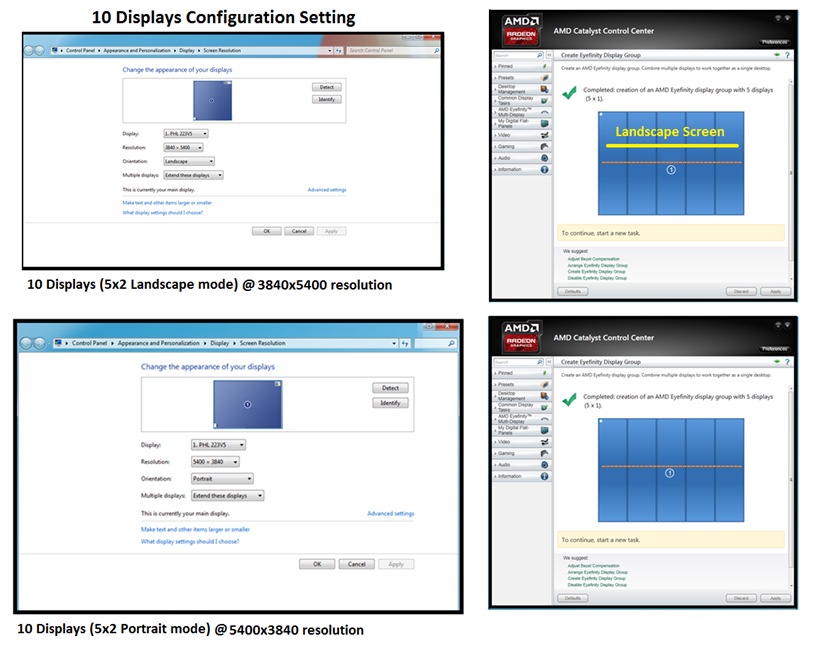

Supports other Flexible Displays Configuration : 6x / 8x / 10x 1920x1080 in row displays

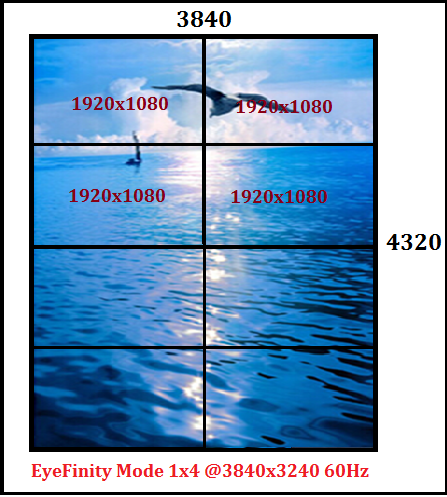

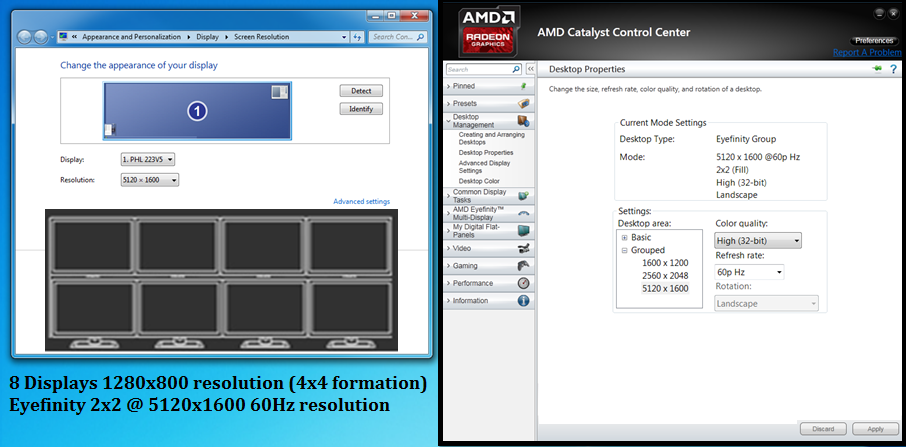

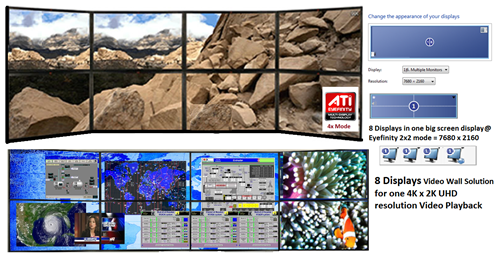

or 8x 1920x1080 displays (4x2) in formation Eyefinity mode.

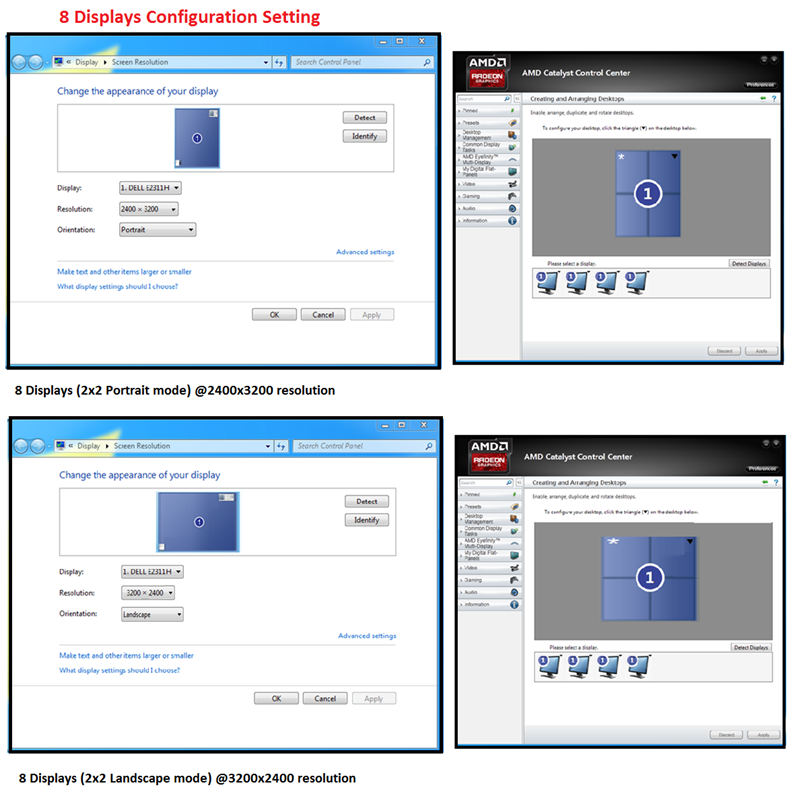

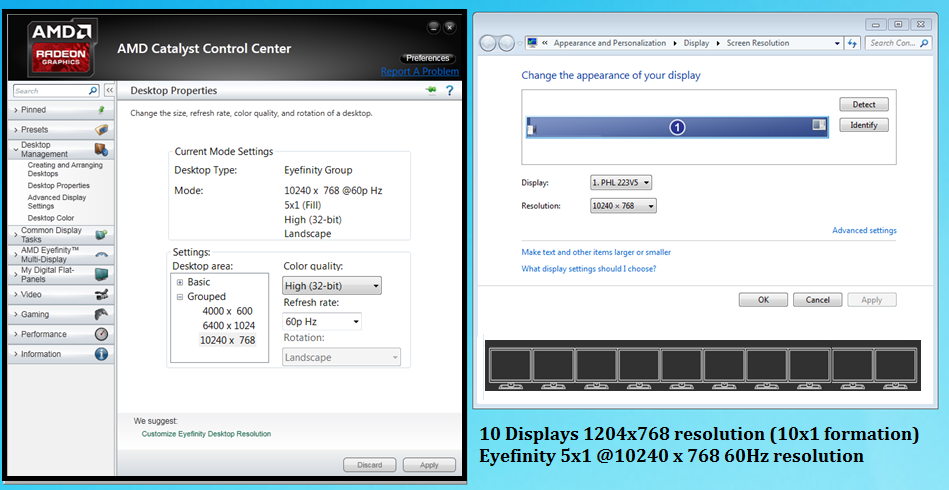

Other Flexible Displays Configuration : 6x / 8x / 10x 1920x1080 in row displays or 8x 1920x1080 displays (4x2) in formation Eyefinity mode.

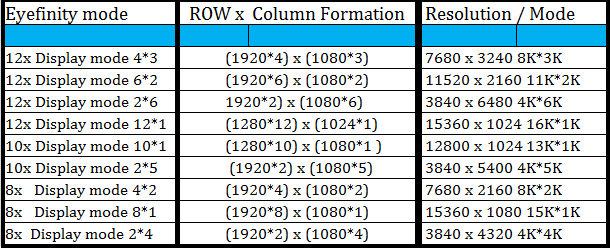

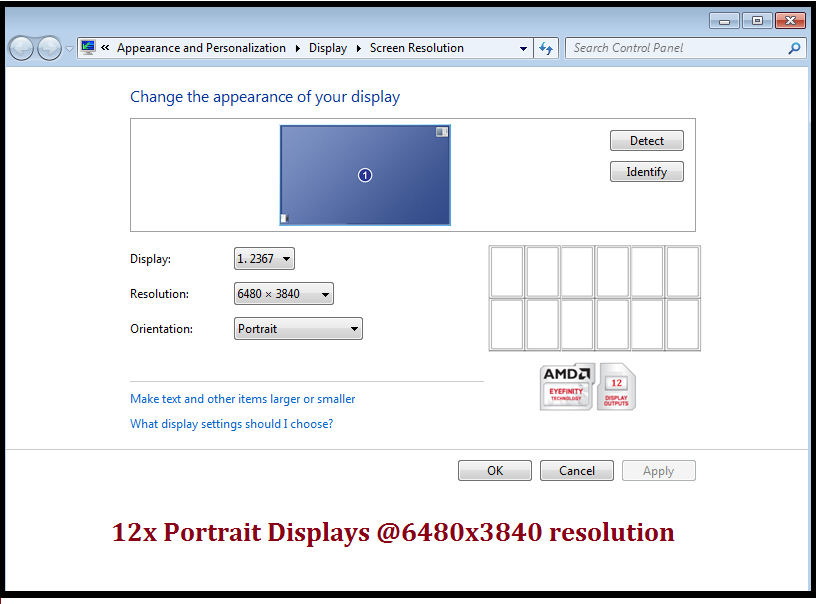

Other Customized Resolutions reference for Multi-Displays as below :
EDID caching feature
- EDID is information about supported display resolutions and modes that is stored on display such as Monitor, TV or projector.
- In Windows 7, 8, 10 if you unplug a display that will trigger a hot plug event which may reconfigure your displays.
- With the EDID cached info., the OS will always think the display is attached.
- Provide consistent EDID cached info. to ensure video is displayed correctly even when monitors is dis-connected or defected
Flexible 8,10,12 displays Formation in one Eyefinity resolution Video Wall
Low cost effective Digital Signage software bundle @ <$99 retail : One stop shopping for easy to use and maintenance for commercial VARs / retailers...
Simple to Installation, Cost Effective Digital Signage software bundle (Option)
No Video Tearing feature in one 12x displays Video Wall.

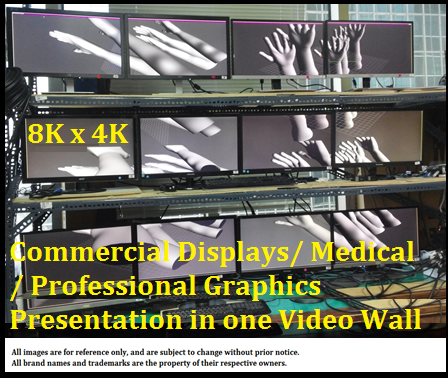

12x Displays in 3D Presentation Video Wall

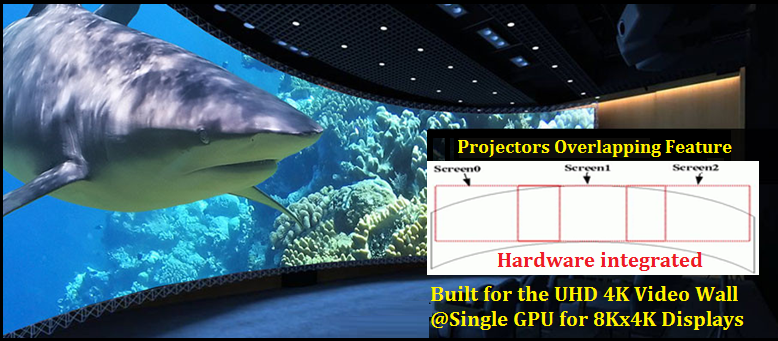

Supports software Projector Overlapping features

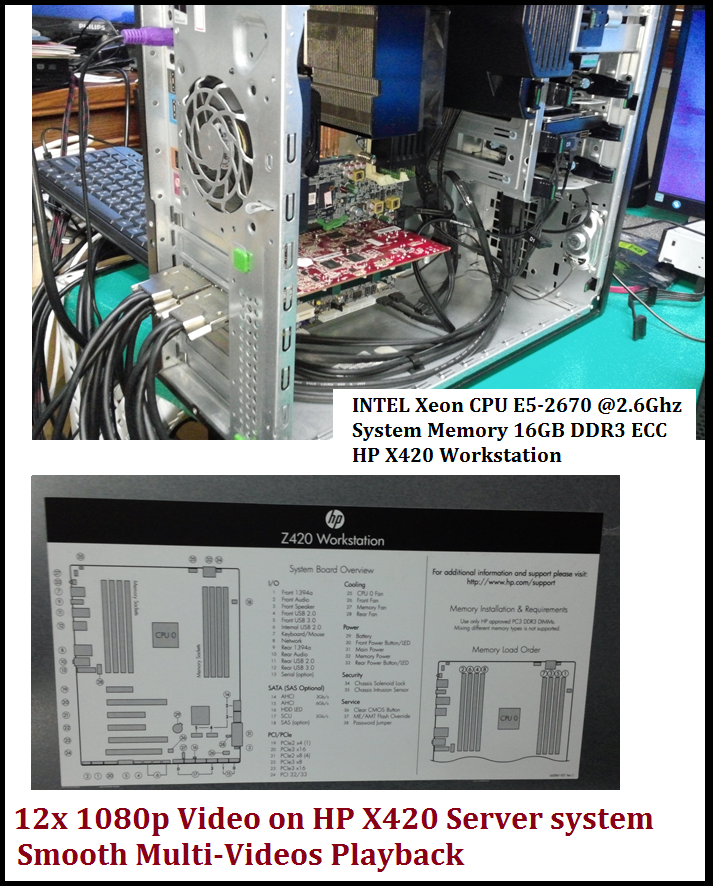

Recommended Hardware System configuration for Multi-video’s playback :
(For Reference only)
- Processor : Intel Xeon CPU E3-1231 v3 @3.40GHz 3.40 GHz or
Intel Xeon E3-1585 v5 or E3 1500 v5 CPU (Major required CPU)
- Installed System Memory : 16.0 GB or above
- Operating System : Windows 7 / 8.1 / 10 64-bit O/S
- Motherboard : GA-H97M-D3H or similar
- Power Supply : 500 watts PSU or above
****************************************************************************************
All images are for reference only, and are subject to change without prior notice.
All brand names and trademarks are the property of their respective owners.
