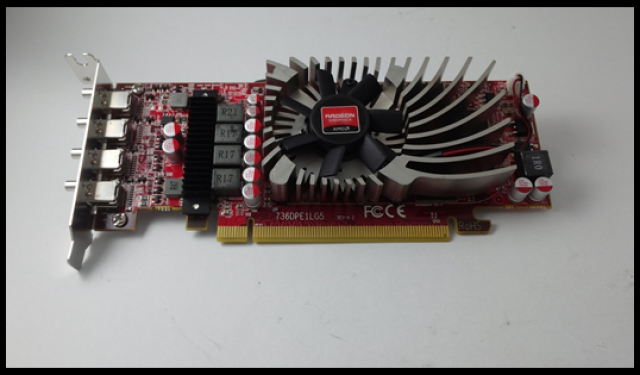

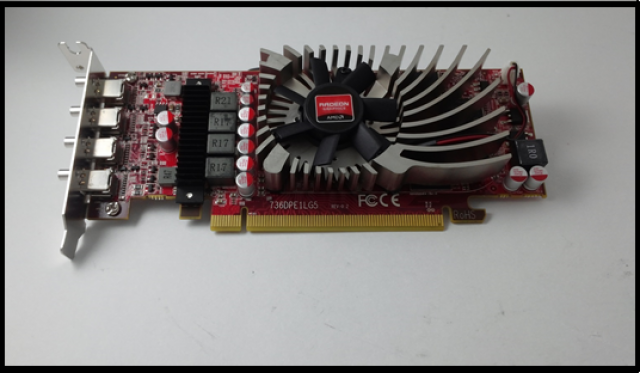

SFF R736ADPLG5-J4, 4GB GDDR5, EDID Caching, 4x mDP 1.2 output, HDR , VSR Edition

product type

PCI-E

Description

Dedicated to provide Flexibility, better performance, High Dynamic Range (10-bit HDR) bringing higher resolution to elevate user experience and improving efficiency to ensure output 8K UHD quality brings a wide range of possibilities to the commercial screens, creates the eye catching effects users seek with UHD displays digital signage. Tailored to fit for video walls or multi-display on budget, also feature EDID caching (No monitor loss), No Video Tearing effect, video wall offers a higher cost performance ratio than other Video Processors by allowing 4 clone, extend and Eyefinity large screen in Portrait and Landscape formation displays.

Specifications
Detail
Inquiry

GPU	AMD Radeon™ R7 360
GPU Core Clock	800Mhz core clock
Video Memory	4GB GDDR5 graphics memory
Stream Processors	768 SP
Memory Clock/Bandwidth	1250Mhz GDDR5 (5Gbps clock / 128-bit)
APIs supported	DirectX® 12, Mantle, OpenGL 4.4, OpenCL 2.0
BUS Interface	PCIe® 3.0 compliant, x16
Form Factor	Dimension : 15.4 x 10.2 x 3.8 inches 20.9cm (length) * 11cm (height) * 1.9cm (thick) ; Low Profile SFF size Single-slot, fits into 2U Rack mount / 4U, half-height / full-height, full-length chassis PCs.
FAN Cooler	Temperature Control FAN Sink cooler (Single slot, Copper Core, Temp-control Low Dbs FAN speed) Temperature Control FAN keeps the noise level absolutely minimal and only increases the speed to improves the air flow and facilitates a highly efficient ventilation supports the cooling of the graphics card work load.

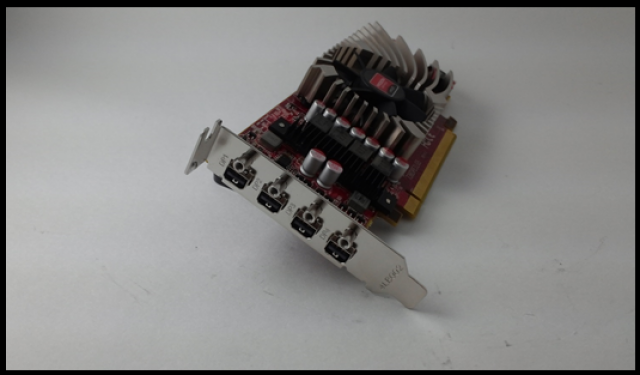

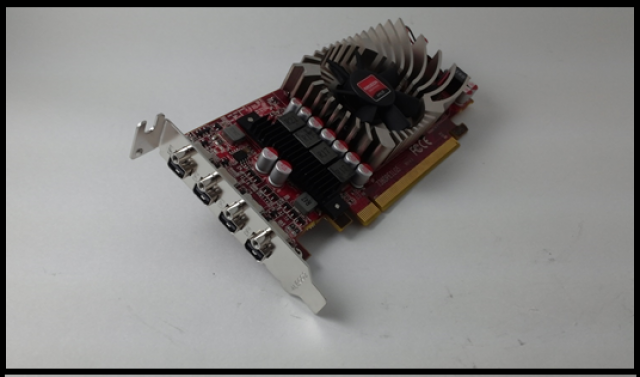

Display Ports Output	4x mDisplayPort 1.2 output @4096x2160 60Hz (cable lock) supports 4x Discrete Digital Multi-Point Audio capability. (4 x DDMAs). Additional 3.3V power circuitry to support external dongles driving compatibility. DPs support up to 4x Curved UltraWide (21:9) QHD displays @3440x1440, 2560x1080 resolution wide screen displaying*
Maximum Resolution	Maximum DisplayPort 1.2 resolution of 4096 x 2160, 24 bits per pixel at 60Hz. Eyefinity resolution supported : 7680 x 4320 resolution 60Hz (Eyefinity 2x2 mode) (4K x 4) 11520 x 2160 resolution 60Hz (Eyefinity 4x1 mode) Supports Eyefinity 4x1 Surround mode with 4x Curved UltraWide (21:9) QHD displays @3440x1440, 2560x1080 resolution Wide screen displaying Support Custom Resolution 3840 x 600@60Hz or more : Supports 4x 1920x1080 VSR@2560x1440 WQHD resolution
Power Consumption	> 65 watts (full load) (No external power input required)
Accessories	CD Driver, Quick Installation Manual.
O/S support	- Windows® 10 - Windows 8.1 32/64-bit - Windows 7 32-bit - Windows 7 64-bit - Windows Embedded Standard 7 32-bit - Windows Embedded Standard 7 64-bit - Windows Server® 2012 R2 64-bit - Windows Server 2008 R2 64-bit - Linux® / Ubuntu Linux
Feature Summary	Support EDID caching for no monitors loss on commercial Digital Signage, Video Wall, Infotainment etc.... Hardware EDID caching feature EDID is information about supported display resolutions and modes that is stored on display such as Monitor, TV or projector. In Windows 7, 8, 10 if you unplug a display that will trigger a hot plug event which may reconfigure your displays. With the EDID cached info., the OS will always think the display is attached. Provide consistent EDID cached info. to ensure video is displayed correctly even when monitors is dis-connected or defected. No Video Tearing effect supported: Image quality enhancement technology Up to 24x multi-sample anti-aliasing Adaptive anti-aliasing Enhanced Quality Anti-Aliasing (EQAA) Morphological Anti-Aliasing (MLAA 2) DirectX® 9/10/11 Super Sample Anti-Aliasing (SSAA) Automatic LOD adjustment (Requires AMD CatalystTM 12.4 or higher) 16x angle invariant anisotropic texture filtering AMD Eyefinity multi-display technology Up to 4x 4K displays supported (UHD 4K resolution) Independent resolutions, refresh rates, color controls, and video overlays Display grouping (Combine multiple displays to behave like a single large display) AMD App Acceleration Supports OpenCL 1.2, DirectCompute 11 & Microsoft C++ AMP Double Precision Floating Point AMD HD Media Accelerator Unified Video Decoder (UVD) H.264 VC-1 MPEG-2 (SD & HD) MVC (Blu-ray 3D) MPEG-4 Part 2 (DivX/Xvid) Adobe Flash DXVA 1.0 & 2.0 support WMV HD Video Codec Engine (VCE) Multi-stream hardware H.264 encoder Full-fixed mode: 1080p @ 60 FPS encoding Hybrid mode: Stream Processor-assisted encoding Enhanced Video Quality features Advanced post-processing and scaling Deblocking Denoising Automatic deinterlacing Mosquito noise reduction Edge enhancement 3:2 pull-down detection Advanced video color correction Brighter whites processing (Blue Stretch) Independent video gamma control Flesh tone correction Color vibrance control Dynamic contrast Dynamic video range control AMD HD3D technology Stereoscopic 3D display/glasses support Blu-ray 3D support Stereoscopic 3D gaming 3rd party Stereoscopic 3D middleware software support Cutting-edge integrated DisplayPort support mDisplayPort 1.2 Max resolution: 4096x2160 @ 60 Hz per display Multi-Stream 21.6 Gbps bandwidth (HBR2) High bit-rate audio Quad HD/4K/UHDTV display support 1080p60 Stereoscopic 3D Advanced audio capabilities (AMD True Audio Technology supported) DDM Audio 7.1-channel audio bitstreaming via HDMI® or DisplayPort Supports LPCM, AC-3, AAC, Dolby TrueHD and DTS Master Audio formats AMD PowerPlay Management technology Automatic power management with low power idle states AMD Project FreeSync Support (DDR) Project FreeSync (DDR) is an AMD effort to leverage industry standards, like DisplayPort Adaptive-Sync, to deliver dynamic refresh rates. Dynamic refresh rates synchronize the refresh rate of a compatible monitor to the framerate of a user’s AMD Radeon™ R7 360 graphics to maximally reduce input latency and reduce or fully eliminate stuttering/juddering/tearing during gaming and video playback. Bezel Compensation : Stretches display resolutions to prevent bezel interference and image distortion when displaying a single large image across multiple display.

2x2mode4K

Curved Displays

4mDP 2U

Virtual Super Resolution

This technology allows a user to improve visual quality in games and other content by rendering at a high resolution (1920x1080 up to 2560x1440 WQHD) and then displaying that content at a lower resolution, which is natively supported by the monitor.

When this feature is enabled, Virtual Super Resolutions beyond the native resolution of the display device will be available in a wide variety of games and applications, including the Windows® desktop. Effectively, VSR provides a Super Sampling Anti-Aliasing (SSAA) feature for the games and applications that do not natively support that functionality.

VSR

Example : 2x displays (1920x1080) VSR@2560x1440 60Hz (WQHD)

Eyefinity 2x1 mode @ 5120x1440 60Hz

VSR Eyefinity

VSR

DSS

2x2

Landscape 16 Displays formation

Flexible Displays

Bar type Displays 2U size

All images are for reference only, and are subject to change without prior notice.
All brand names and trademarks are the property of their respective owners.
