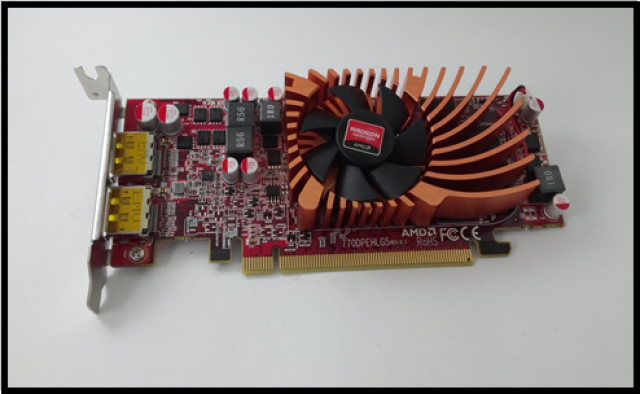

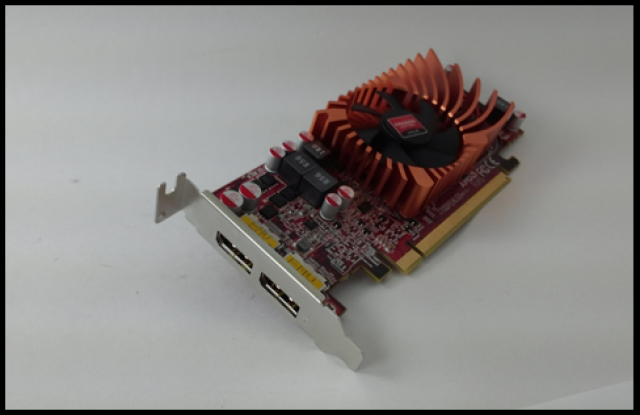

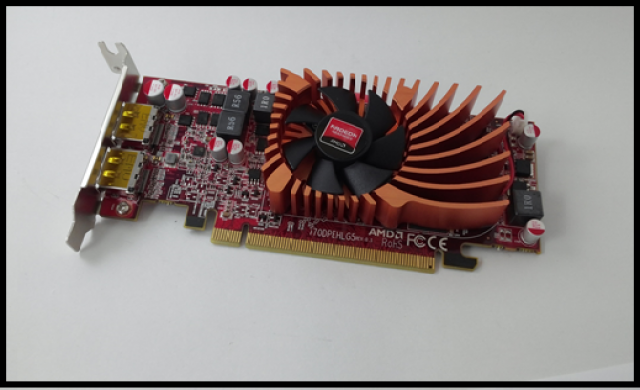

7750BDPLG5, 2GB GDDR5, DisplayPort 1.2, SFF Edition
|
| Specification | |
| GPU | AMD Radeon™ HD7750 (512 Stream Processors) |
| GPU Core Clock | 800Mhz core clock |
| Video Memory | 2GB GDDR5 |
| Memory Clock / Bandwidth | 1125Mhz GDDR5 (128-bit) |
| APIs supported | OpenGL 4.2 OpenCL 1.2 DirectX 11.1 |
| BUS | PCI Express x16 Gen 3.0 |
| Cooler | Single slot FAN sink Cooler |
| Board Size | 20.9cm (length) * 11cm (height) * 1.9cm (thick) ; SFF size Single-slot, fits into 2U Rack mount / 4U, half-height / full-height, full-length chassis PCs. |
| Display Output | 2x DisplayPort 1.2 outputs (4K resolution) @60Hz |

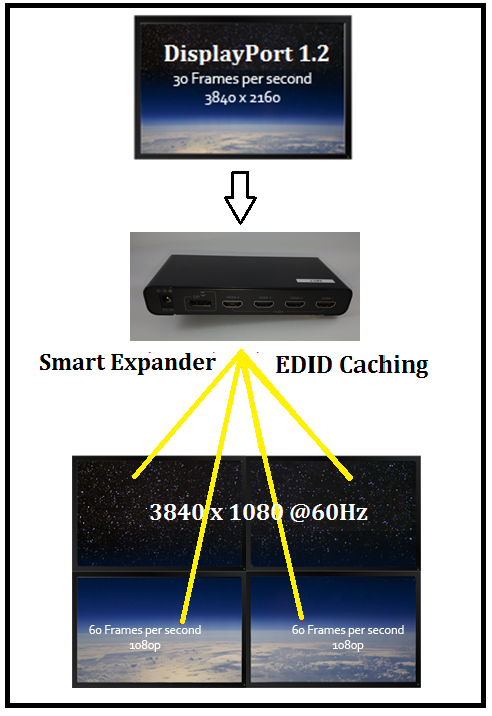

Maximum Resolution | 7680 x 2160 resolution @60Hz (2* 4K monitors) Eyefinity 1x2 / 2x1 mode Independent 2 x Clone or Extend Mode in Landscape or Portrait supported. |
| Power Consumption (loaded) | < 70 Watts (No external power input required) |
| Accessory | CD Driver, Quick Installation Manual |
| O/S support | - Windows® 10 32-bit / 64-bit - Windows 8.1 32-bit / 64-bit - Windows 7 32-bit - Windows 7 64-bit - Windows Embedded Standard 7 32-bit - Windows Embedded Standard 7 64-bit - Windows Server® 2012 R2 64-bit - Windows Server 2008 R2 64-bit - Linux® / Ubuntu Linux |
| Remark | Direct2Display2x EyeFinity AMD Eyefinity multi-display technology
Bezel Compensation : Stretches display resolutions to prevent bezel interference and image distortion when displaying a single large image across multiple display.
|
Low Cost Digital Signage for bundling : Single GPU for multi standalone digital signage or one UHD resolution Video Wall
