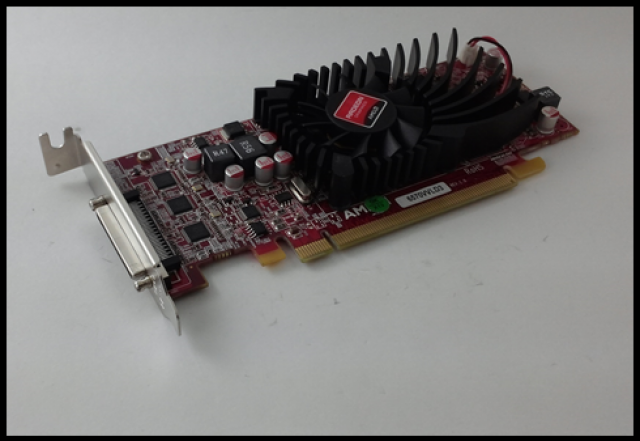

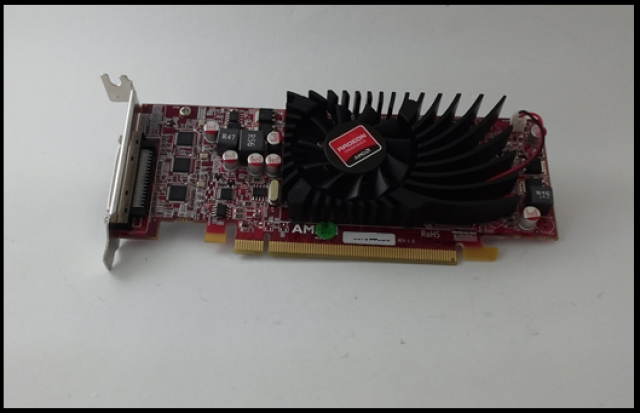

DS66MVVLD3, EDID caching, 4x VGAs @1x4 Landscape mode, 3D Signage Edition
|
| GPU | DS66MVVLD3 GPU-based VGA Edition |
| GPU Core Clock | 650Mhz core clock |
| Video Memory | 1GB DDR3 (Option 2GB) |
| Memory Clock / Bandwidth | 1333Mhz DDR3 (128-bit) |
| APIs supported | OpenGL 4.3, OpenCL 1.2, DirectX 11.1, Shader model 5.0 |
| BUS | PCI Express x16 |
| Cooler | Temp. FAN control Sink Cooler (Single Slot) Temperature Control FAN keeps the noise level absolutely minimal and only increases the speed to improves the air flow and facilitates a highly efficient ventilation supports the cooling of the graphics card work load. |

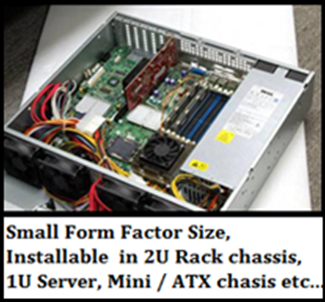

| Board Size | 20.9cm (length) * 11cm (height) * 1.9cm (thick) ; SFF size Single-slot, fits into 2U Rack mount / 4U, half-height / full-height, full-length chassis PCs. |
| Display Output | 4 x VGA Ports @1920x1080 60Hz resolution or 4x VGA Ports @2048x1536 resolution. |

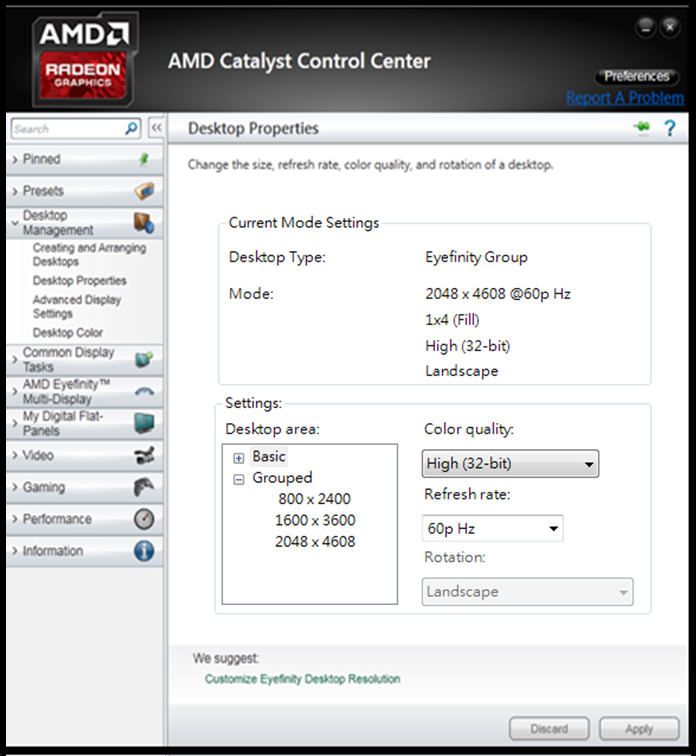

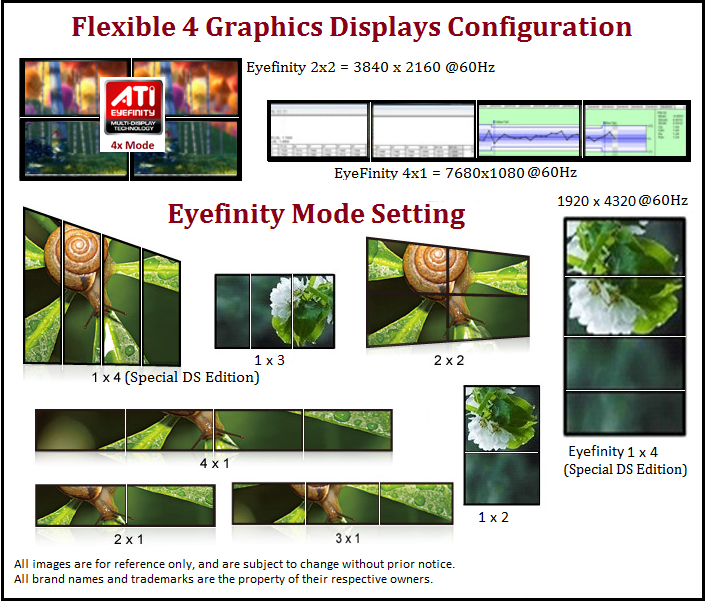

Maximum Resolution | 8192 x 1536 resolution (4* 2048 x 1536 monitors) (4x1 Landscape mode) 4096 x 3072 resolution (4* 2048 x 1536 monitors) (2x2 Landscape mode) 1920 x 4320 resolution (4* 1920x1080 monitors) (1x4 Landscape mode) Eyefinity 1x4 (Landscape), 4 x1 (Landscape) , 2x2 mode Independent 4 x Clone or Extend Mode in Landscape or Portrait supported. |
| Power Consumption (loaded) | < 60 Watts (No external power input required) |

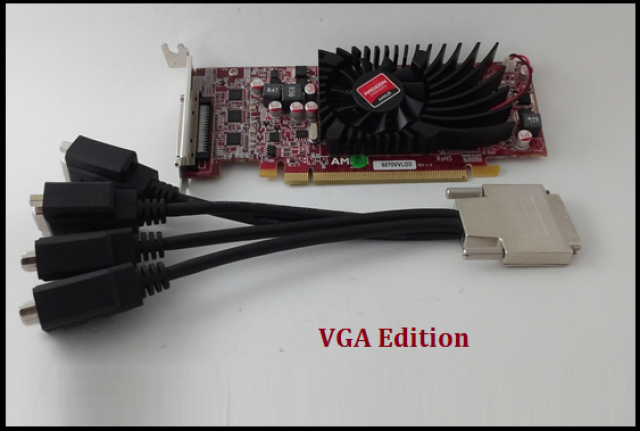

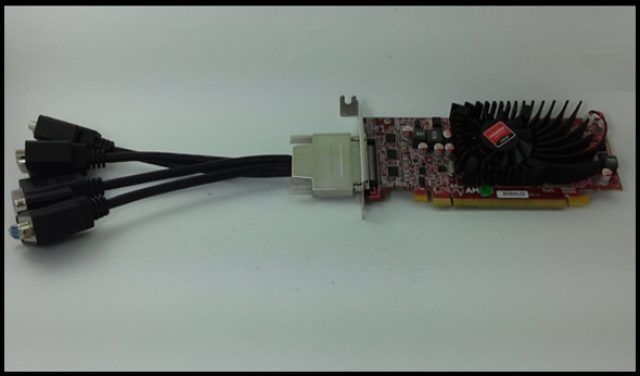

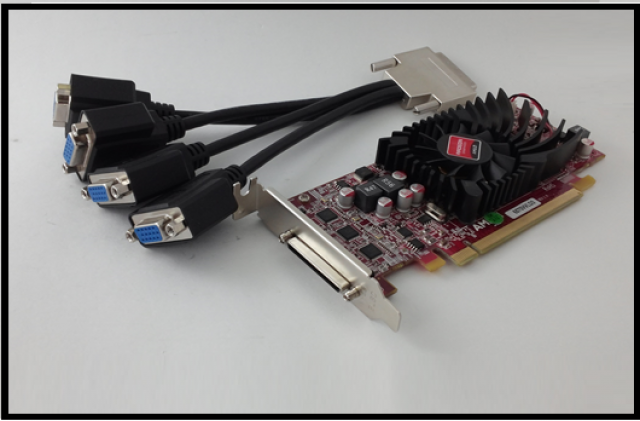

| Accessory | CD Driver, Quick Installation Manual, VHDCI 1 x 4 VGA port cables |
| O/S support | - Windows® 10 32-bit / 64-bit |
| Remark | Direct2Display4x EyeFinity AMD Eyefinity multi-display technology

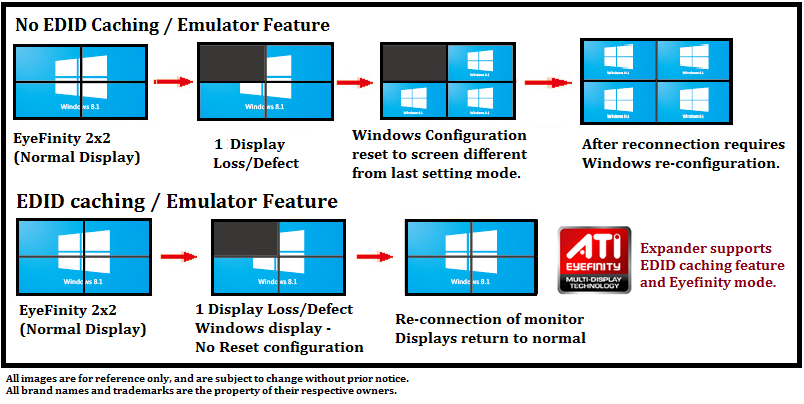

Full 30-bit Display Pipeline Supports a full 30-bit display pipeline producing more than one billion colors (10-bit per RGB component) is ideally suited for applications that benefit from accurate color reproduction and superior visual quality. Force EDID Emulation Feature Force EDID Emulation for no monitors loss when power-off or disconnection running application for Video Wall or Production Monitoring avoiding reset to Windows default
|
All images are for reference only, and are subject to change without prior notice.
All brand names and trademarks are the property of their respective owners.
Recommended Hardware System configuration for Multi-video’s playback :
(For Reference only)
Processor : Intel Xenon CPU E3-1231 v3 @3.40GHz 3.40 GHz or Intel Xeon E3-1585 v5 or E3 1500 v5 CPU (Major required CPU)
- Installed System Memory : 16.0 GB or above
- Operating System : Windows 7 / 8.1 / 10 64-bit O/S
- Motherboard : GA-H97M-D3H or similar
- Power Supply : 500 watts PSU or above
****************************************************************************************
Established as an OEM/ODM design center and service by a group of experienced engineers of over 15 years in the graphics solution for the IPC business, GXore Inc. Group has integrated the resources and competencies of Hong Kong, Taiwan and China. With its logistic subsidiary in Hong Kong, GXore Inc. group is empowered with a flexible global logistics. Leveraging the sales & finance strength of Taiwan, it has also established R&D Design House; Partner's manufacturing facilities (ROHS), QA center & After-sale RMA service center in China. Since its inception, GXore Inc. group has been specializing in IPC graphics design and manufacturing, providing the ODM as well as the customized OEM services to US, Europe, Japan and Korea. GXore Inc. group’s goal is to fully satisfy every demand of every customer by the highest standard of product quality in the most efficient way.

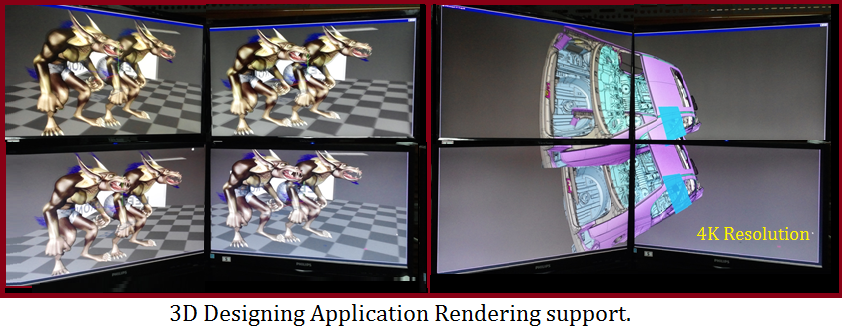

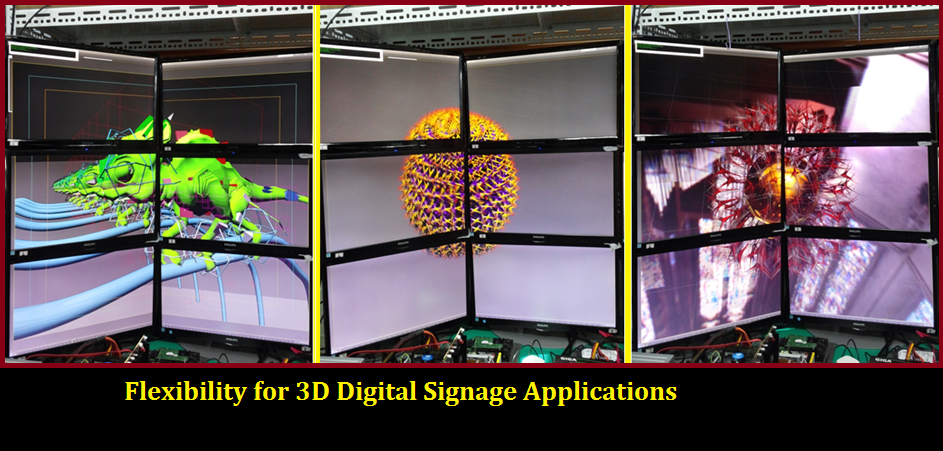

3D Designing Applications
.
