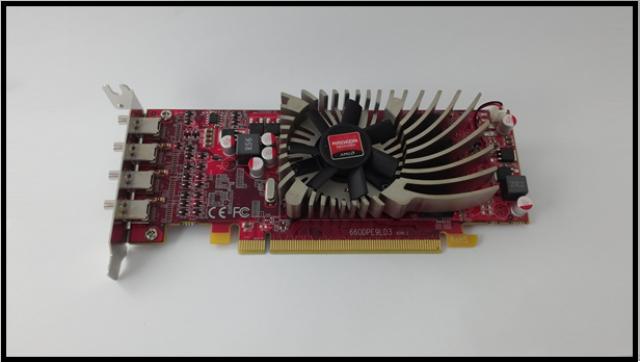

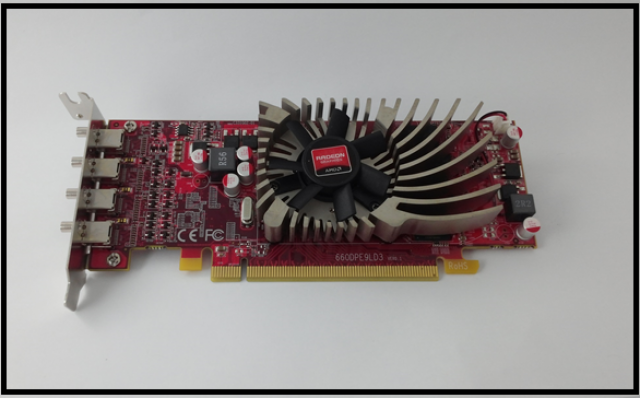

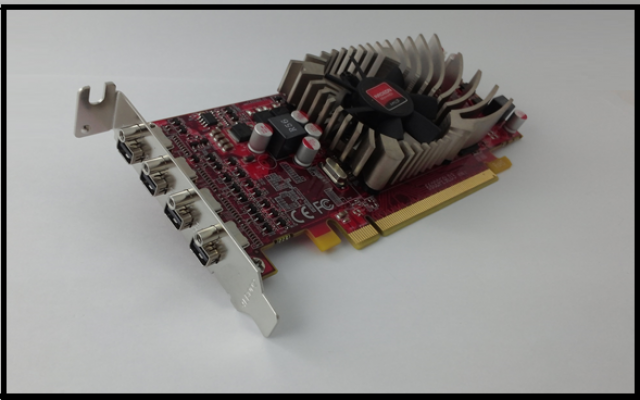

M5KDPLD3, 2GB DDR3, EDID Caching, 4x mDPs output (4K@30Hz), SFF size, 1x4 Landscape mode, 3D Digital Signage Edition
|
| Model | M5KDPLD3 GPU-based Video Edition |
| GPU Core Clock | 600Mhz core clock 400 Streaming Processing Units. |
| Video Memory | 2GB DDR3 memory |
| Memory Clock / Bandwidth | 1333Mhz DDR3 (128-bit) |
| APIs supported | OpenGL 4.3 , OpenCL 1.2, DirectX 11 , Shader model 5.0. |
| BUS | PCI Express x16 |
| Cooler | Temp. control FAN sink Cooler (Single Slot, Low dbs noise) Temperature Control FAN keeps the noise level absolutely minimal (low Dbs) and only increases the speed to improves the air flow and facilitates a highly efficient ventilation supports the cooling of the graphics card work load Passive Heat sink (Special request) |
| Board Size | 20.9cm (length) * 11cm (height) * 1.9cm (thick) ; SFF size Single-slot, fits into 2U Rack mount / 4U, half-height / full-height, full-length chassis PCs. |

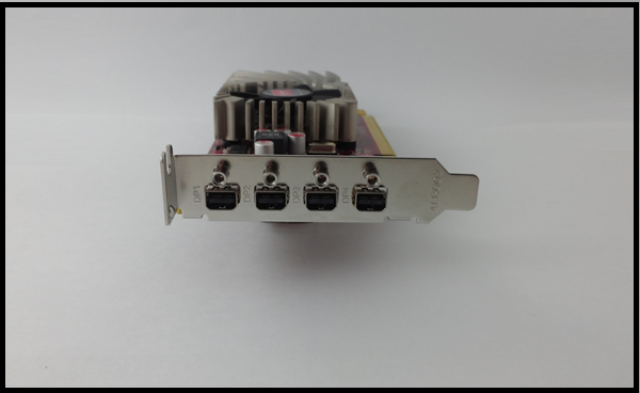

| Display Output | 4 x mDisplayPorts 1.1 @2560x1600@60Hz or 4x mDisplayPorts @3840x2160 30Hz |

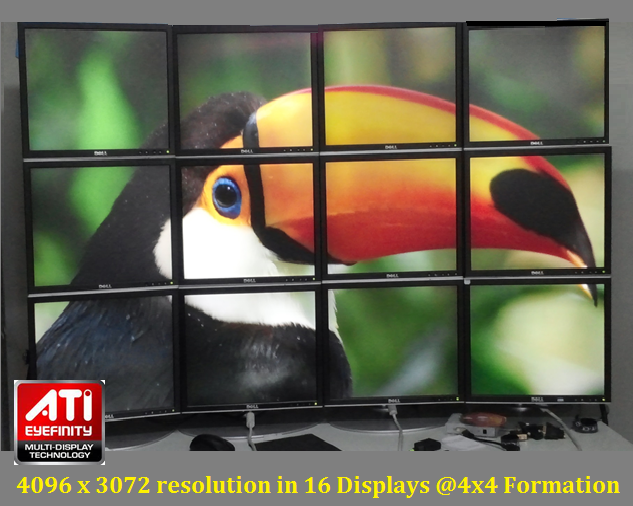

Maximum Resolution | Max resolution : 2560 x 1600 @60Hz / 3840 x 2160@30Hz per display. 1920 x 4320 resolution (4* 1920x1080 monitors) (1x4 Landscape mode) Eyefinity 1x4 (Landscape), 4 x1 (Landscape) , 2x2 mode Independent 4 x Clone or Extend Mode in Landscape or Portrait supported. |
| Power Consumption | < 55 Watts (No external power input required) |
| Accessory | CD Driver, Quick Installation Manual |
| O/S support | - Windows® 10 32-bit / 64-bit |
| Remark | Direct2Display4x EyeFinity AMD Eyefinity multi-display technology
. * UVD3 video decoder supports the decoding of MPEG-4 AVC/H.264, VC-1, MPEG-2, Flash and now also Multi-View Codec (MVC) and MPEG-4 part 2 (DivX, xVid) HD videos on the graphics card.
* Integrates a HD audio controller to transmit HD Audio (TrueHD or DTS Master Audio) over HDMI and DisplayPort (e.g. für Blu-Ray videos).
Image Quality Enhancement Technology -Up to 24x multi-sample and super-sample anti-aliasing modes -Adaptive anti-aliasing -Morphological anti-aliasing (MLAA) -16x angle independent anisotropic texture filtering -128-bit floating point HDR rendering *Bezel Compensation and Software Projector Overlapping features.
Projector Overlap Support Easily refine display alignment settings when configuring multiple, high resolution display devices or projectors. . Full 30-bit Display Pipeline Supports a full 30-bit display pipeline producing more than one billion colors (10-bit per RGB component) is ideally suited for applications that benefit from accurate color reproduction and superior visual quality. Hardware EDID caching – Auto-enabled feature to cache the EDID settings and connection type of the monitors currently connected to your Graphics hardware even monitor defect or monitor “loss” or power off connectivity. This feature prevent the Windows setting to reset to “Default” mode setting causing abnormal reset to application setup running condition. No Video Tearing Effect support:
|
All images are for reference only, and are subject to change without prior notice.
All brand names and trademarks are the property of their respective owners.
Recommended Hardware System configuration for Multi-video’s playback :
(For Reference only)
Processor : Intel Xenon CPU E3-1231 v3 @3.40GHz 3.40 GHz or Intel Xeon E3-1585 v5 or E3 1500 v5 CPU (Major required CPU)
- Installed System Memory : 16.0 GB or above
- Operating System : Windows 7 / 8.1 / 10 64-bit O/S
- Motherboard : GA-H97M-D3H or similar
- Power Supply : 500 watts PSU or above
**********************************************************************************
