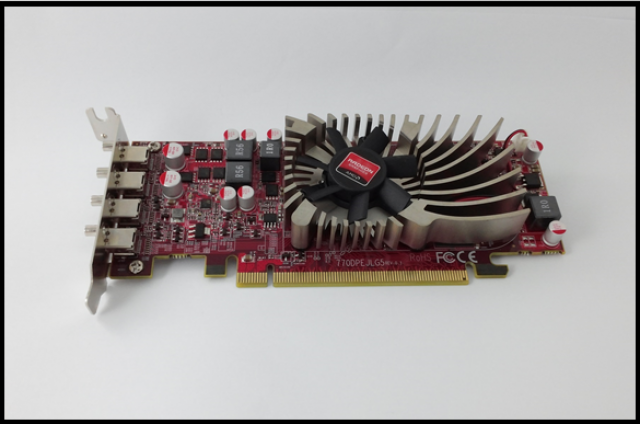

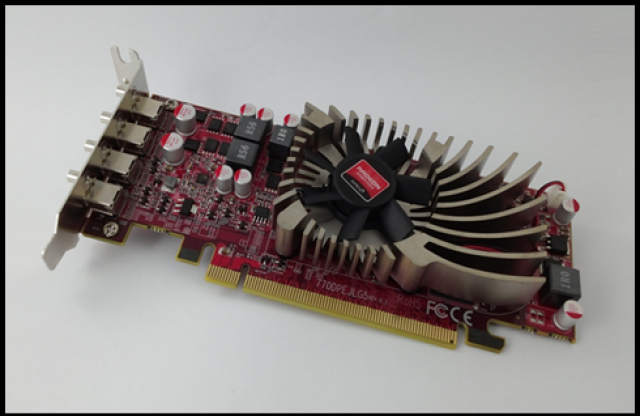

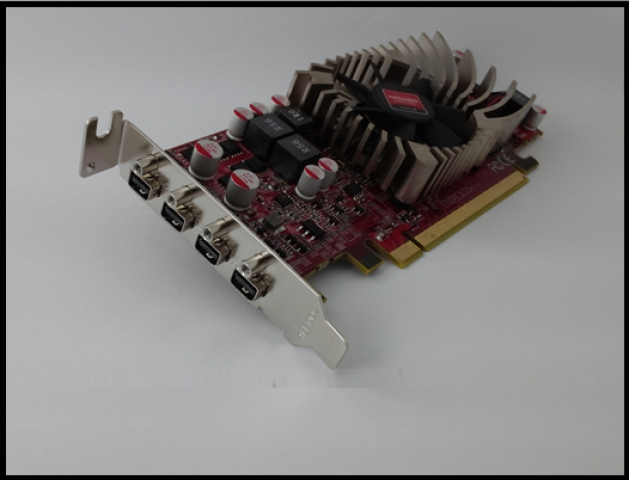

SFF 77MCDPLG5 2GB GDDR5 (4GB) Quad 4k mDisplayPort 1.2, EDID caching @1x4, 4x1, 2x2 formation Commercial 3D Media Signage Edition.
|
| Specification | |
| GPU | 77M GPU-Based Graphics / Video Controller |
| GPU Core Clock | 700Mhz core clock |
| Video Memory | 2GB GDDR5 (4GB Option) |
| Memory Clock / Bandwidth | 1125Mhz GDDR5 (128-bit) |
| APIs supported | OpenGL 4.5, OpenCL 1.2, Directx12, Shader model 5.0 |
| BUS | PCI Express x16 Gen 3.0 |
| Cooler | Temp. control FAN sink Cooler (Single Slot, Low dbs noise) Temperature Control FAN, Copper-based cooler keeps the noise level absolutely minimal (low Dbs) and only increases the speed to improves the air flow and facilitates a highly efficient ventilation supports the cooling of the graphics card work load. |
| Board Size | 20.9cm (length) * 11cm (height) * 1.9cm (thick) ; SFF size Single-slot, fits into 2U Rack mount / 4U, half-height / full-height, full-length chassis PCs. |

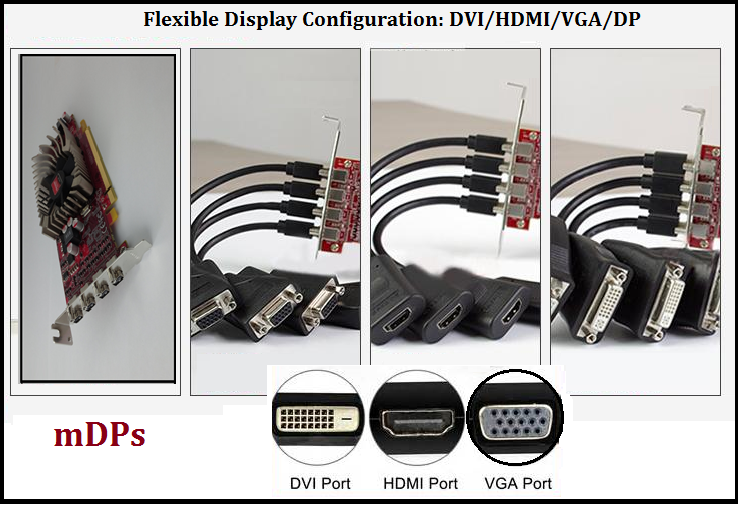

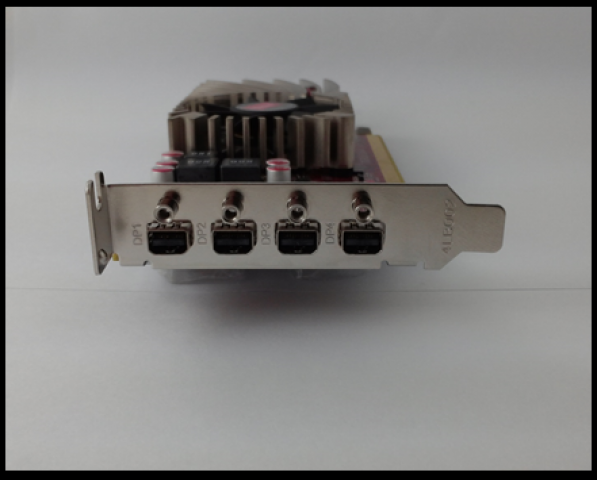

| Display Output | 4x Mini DisplayPort 1.2 outputs (4K resolution) @60Hz 4x independent Audio channels (DDMAs) |

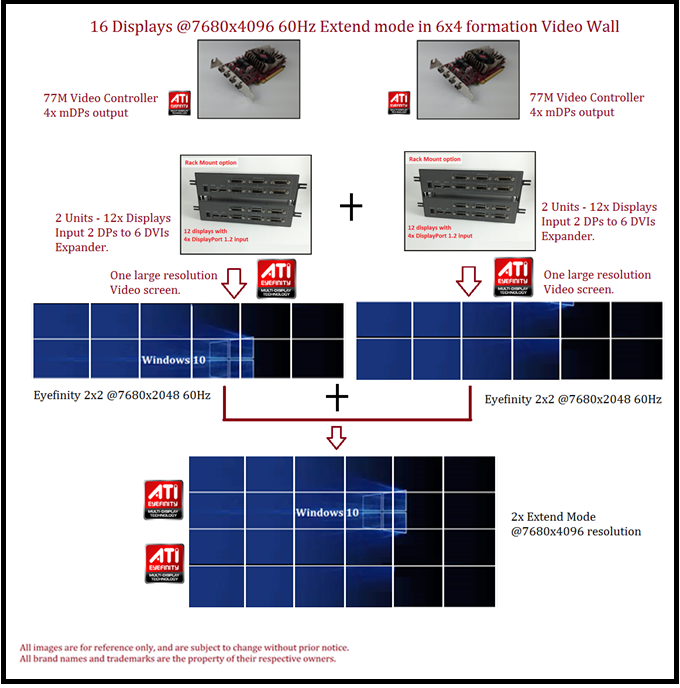

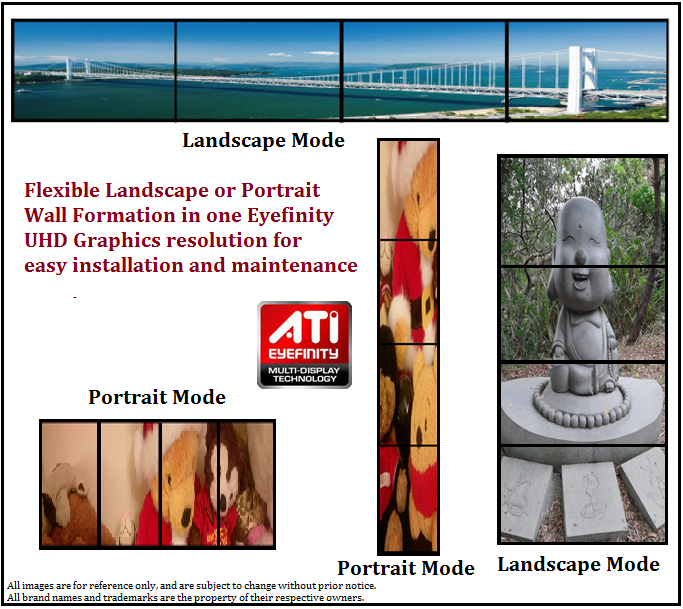

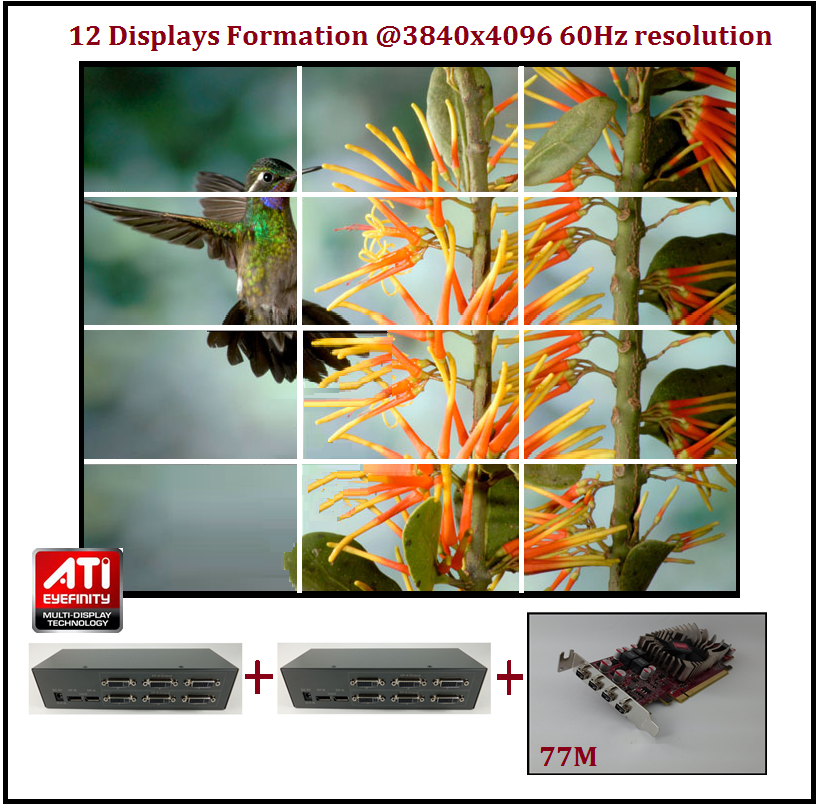

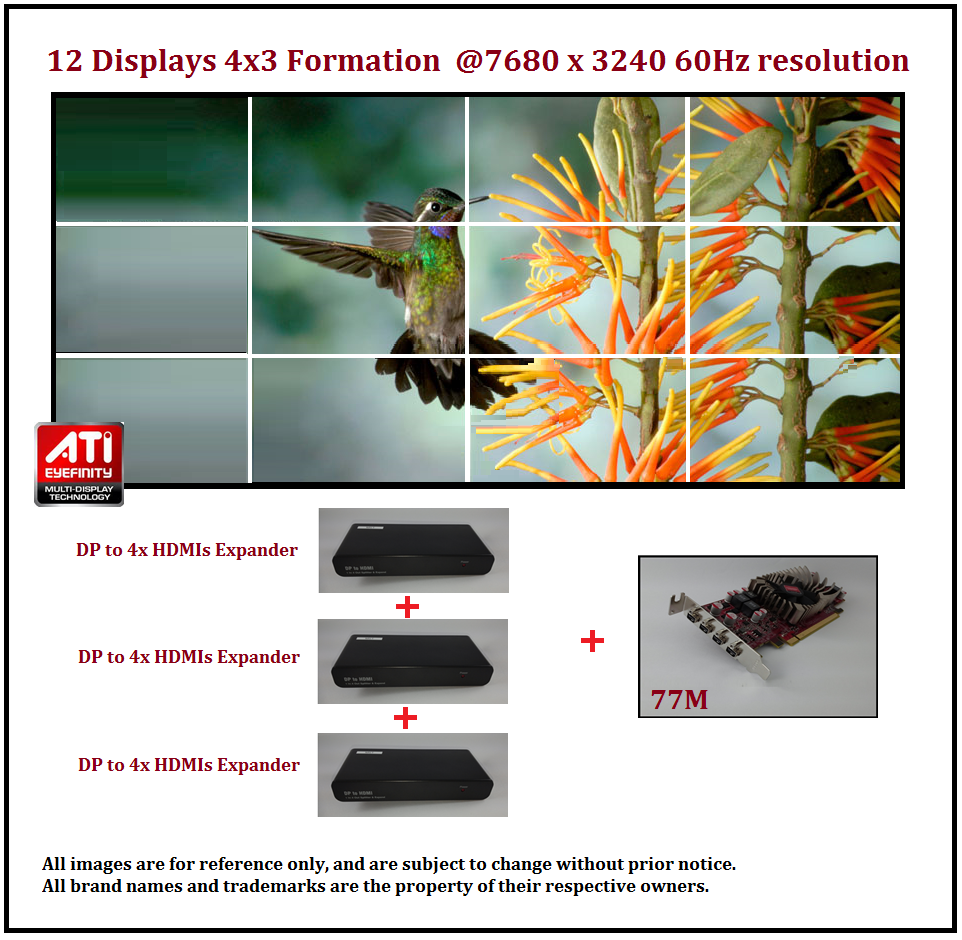

Maximum Resolution | 7680 x 2160 resolution (4* 4K monitors) Eyefinity 2x2 mode Independent 4 x Clone or Extend Mode in Landscape or Portrait supported. |
| Power Consumption (loaded) | < 65 Watts (No external power input required) |
| Accessory | CD Driver, Quick Installation Manual |
| O/S support | - Windows® 10 32-bit / 64-bit - Windows 8.1 32 bit / 64-bit - Windows 7 32-bit - Windows 7 64-bit - Windows Embedded Standard 7 32-bit - Windows Embedded Standard 7 64-bit - Windows Server® 2012 R2 64-bit - Windows Server 2008 R2 64-bit - Linux® / Ubuntu Linux |
| Remark | Direct2Display4x EyeFinity AMD Eyefinity multi-display technology
. * UVD3 video decoder supports the decoding of MPEG-4 AVC/H.264, VC-1, MPEG-2, Flash and now also Multi-View Codec (MVC) and MPEG-4 part 2 (DivX, xVid) HD videos on the graphics card.
* Integrates a HD audio controller to transmit HD Audio (TrueHD or DTS Master Audio) over HDMI and DisplayPort (e.g. für Blu-Ray videos).
Image Quality Enhancement Technology -Up to 24x multi-sample and super-sample anti-aliasing modes -Adaptive anti-aliasing -Morphological anti-aliasing (MLAA) -16x angle independent anisotropic texture filtering -128-bit floating point HDR rendering *Bezel Compensation and Software Projector Overlapping features.
Projector Overlap Support Easily refine display alignment settings when configuring multiple, high resolution display devices or projectors. . Full 30-bit Display Pipeline Supports a full 30-bit display pipeline producing more than one billion colors (10-bit per RGB component) is ideally suited for applications that benefit from accurate color reproduction and superior visual quality. EDID caching Feature Hardware EDID caching – Auto-enabled feature to cache the EDID settings and connection type of the monitors currently connected to your Graphics hardware even monitor defect or monitor “loss” or power off connectivity. This feature prevent the Windows setting to reset to “Default” mode setting causing abnormal reset to application setup running condition. |
Processor : Intel Xeon CPU E3-1231 v3 @3.40GHz 3.40 GHz or Intel Xeon E3-1585 v5 or E3 1500 v5 CPU (Major required CPU)
- Installed System Memory : 16.0 GB or above
- Operating System : Windows 7 / 8.1 / 10 64-bit O/S
- Motherboard : GA-H97M-D3H or similar
- Power Supply : 500 watts PSU or above
**********************************************************************************
