DP4KDLDVi - DL DVI @4K

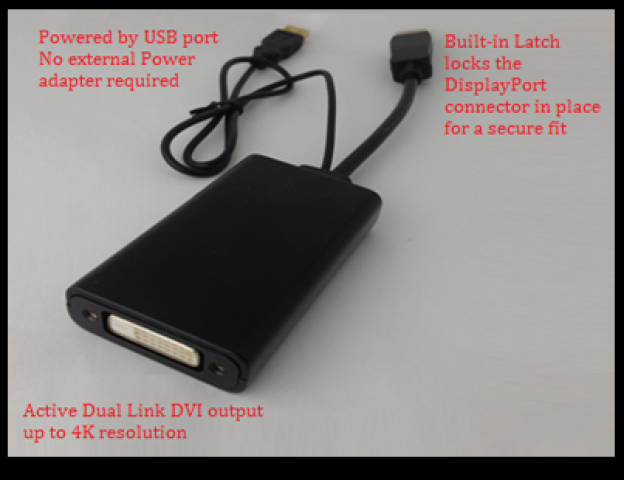

DP4KDLDVi -  DisplayPort to 4K DVI-D Dual-Link adapter with EDID caching feature lets you connect your DisplayPort video source (Macbook, Macbook Pro, Macbook Air, etc.) to any DVI-D display, including 4K DVI monitor, 4K TV and Apple Cinema Display HD, eliminating the expense of having to upgrade to a DisplayPort-capable monitor. The DisplayPort adapter offers an active conversion directly and is able to handle full  dual-link 4K resolutions (2560x1600@60Hz, 3840 x 2160 @30Hz or 1920x1080 @144Hz 3D wide monitor or HDMI 3840x2160 resolution display). Use it to mirror your display to another monitor, or extend your desktop to increase your workspace and support for the commercial digital signage or Infotainment.

Support for AMD Eyefinity Mode : Imagine expanding your gaming real estate across multiple displays in Full 4K HD for a completely immersive gaming experience. With the DisplayPort to Active DVI Dual Link cable, you can now use the award winning AMD Eyefinity™ Technology and create the best multi-display gaming experience you can imagine with 1920x1080 @144Hz refresh rate 3D monitors.

Key Features

• Integrates a Active DisplayPort receiver and DVI transmitter for video format   conversion with full compliance 2560x1600 30-bit 60Hz dual link DVI up to 3840 x 2160 @30Hz data link transmission and 1920x1080 @144Hz refresh rate 3D monitors.
• 3840x2160 @30Hz display supported for 4K video playback in HDMI video (HDMI converter required).
• RGB at 6/8/10/12 bpc (bits-per-component) supported.
• YCbCr 4:4:4 and YCbCr 4:2:2 8/10/12 bpc supported.
• Support on the latest generation Mac or PC computers with Display Port.
• Support AMD Eyefinity Technology for Multi 4K Dual link DVI displays with independent resolution.
• Plug and play, Easy to operate.
• USB Power input to DVI adapter drive output additional power adapter.

DisplayPort Receiver Capability

• DisplayPort 1.2 High Bit Rate (HBR) supports 4K resolution @30Hz
• Supports 1, 2, and 4 lanes at both 1.62 Gbps and 5.4 Gbps data rates
• Built-in automatic receiver equalization
• Supports both full link training and no link training operation
• Video input formats: RGB up to 12 bpc, YCbCr4:4:4 -4:2:2 up to 12 bpc
• Supports reduced blanking or reduced refresh rate timing modes
• Supports DisplayPort Spread Spectrum Clocking

DVI Transmitter Capability  (HBR 4K resolution support)

• DVI transmitter, supporting for full compliance Dual Link DVI 2560x1600 30-bit 60Hz, 4k x 2k resolution at a full 30Hz frame rate with 30 bits-per-pixel color or 1920 x 1080 144Hz 3D monitors.
• High Bitrate (HBR) data link with 5.4 GT/s via to 4K Dual Link DVI.
• Fully TMDS/iTMDS compliant, while fully interoperable in the DVI 1.0 environment.
• Video output formats: RGB up to 12 bpc, YCbCr4:4:4 -4:2:2 up to 12 bpc.
• Supports Dual-Link High Bitrate 2 interface for increased bandwidth.
• Supports Dual-Link High-bandwidth Digital Content Protection (HDCP) transmission secured Content Protection with HDCP on DVI.

EDID caching mode

Also implementing hardware EDID caching for no monitor loss prevent Windows display default configuration to reset during monitor disconnection for the digital signage and commercial infotainment.

All images are for reference only, and are subject to change without prior notice.
