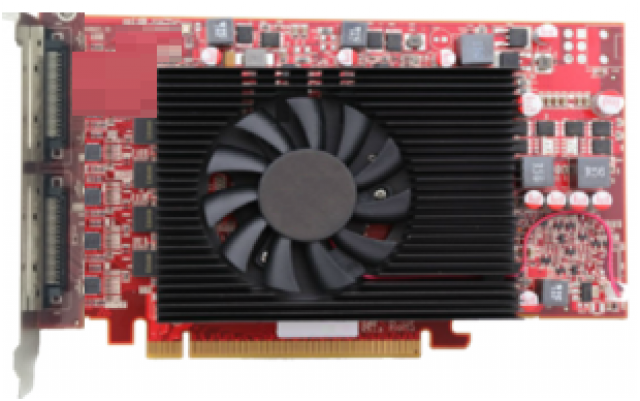

775C2VHG5-G8 8x UHD Displays (New Edition)
|
2
GPU | AMD Radeon™ HD7750 (512 stream Processors) |
GPU Core Clock | 800Mhz core clock |
Video Memory | 2GB GDDR5 |
Memory Clock / Bandwidth | 1125Mhz GDDR5 (4.5Gbps GDDR5) (128-bit) |
APIs supported | OpenGL® 4.2 OpenCL® 1.2 DirectX® 11.1 |
BUS | PCI Express x16 |
Power Consumption | < 70 Watts |
Board Size | ATX Profile |
Display Output | 8 x UHDs Port |
Max Resolution | 8 x UHD - 1920 x 1080 resolution (Windows 7/8/10) |
Cooler | Cooler FAN sink (single slot) Temperature Control FAN keeps the noise level absolutely minimal and only increases the speed to improves the air flow and facilitates a highly efficient ventilation supports the cooling of the graphics card work load. |
Accessories | CD Driver, Quick Installation Manual, 2 VHDCI cables with 4 UHDs port each. |
O/S support | - Windows® 10 32-bit / 64-bit Windows XP limited. |
Remark | Direct2Display 8x in clone/extend mode for up to 8 x 1920 x 1080 DVI monitors. Eyefinity mode in 2x2 monitor Landscape formation (7680 x 2160 resolution) for up to 8 DVIs monitor and 8 Extend/Clone mode supported Video Walls. *Eyefinity mode in 2x2 monitor Portrait formation (4320x3840 @60Hz resolution) *Eyefinity mode in 4x1 monitor Landscape formation (15360x1080) in 8 displays in a row formation High Speed 2GB GDDR5 for performance quality commercial display. Limited 4 DVI Displays output configuration for Windows XP Operating System. No Video Tearing effect supported:
Bezel Compensation : Stretches display resolutions to prevent bezel interference and image distortion when displaying a single large image across multiple display.
|
8 Displays Video Wall Formation
Work Productivity / Commercial
Easy Installation, Cost Effective Digital Signage Software bundle (Option)
Eyefinity 8x1 Display Formation @ 15360 x 1080 60Hz resolution
Recommended Hardware System configuration for Multi-video’s playback :
(For Reference only)
Processor : Intel Xeon CPU E3-1231 v3 @3.40GHz 3.40 GHz or Intel Xeon E3-1585 v5, Xeon E5-2670 @2.6GHz or E3 1500 v5 CPU (Major required CPU)
- Installed System Memory : 16.0 GB or above
- Operating System : Windows 7 / 8.1 / 10 64-bit O/S
- Motherboard : GA-H97M-D3H or Server Boards similar
- Power Supply : 500 watts PSU or above
****************************************************************************************
