775BVCG5 3x3 formation Xpanders, EDID caching , 4Kx 3K (or 3840x2160 60Hz full screen) resolution.
|

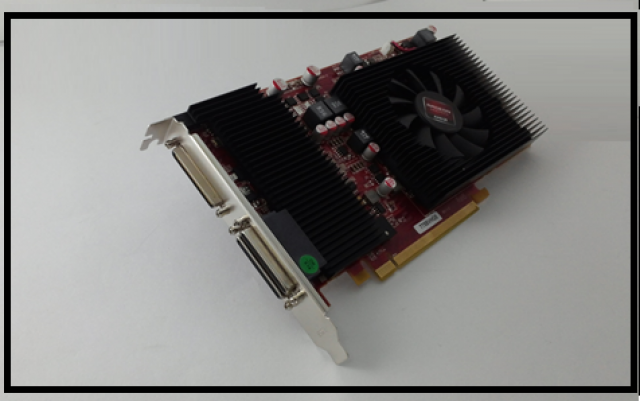

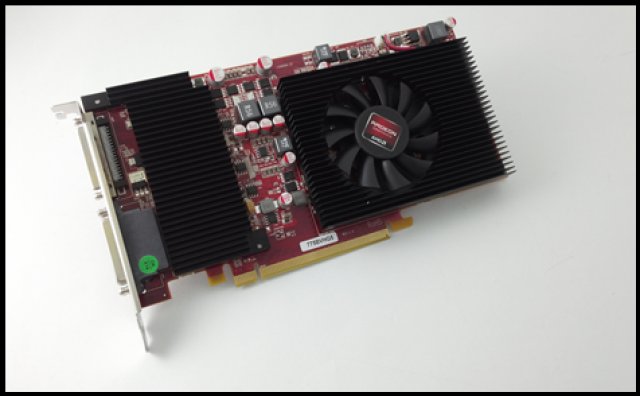

Specification | |
GPU | AMD Radeon™ HD7750 (Single GPU) |
GPU Core Clock | 800Mhz core clock |
Video Memory | 2GB GDDR5 graphics memory on-board (4GB GDDR5 option) |
Memory Clock | 1125Mhz memory clock (4.5Gbps GDDR5) (128-bit) |
APIs supported | OpenGL 4.5 / OpenCL 1.2 / DirectX 12 / Shader model 5.0 |
BUS Interface | PCIe® 3.0 compliant, x16 |
Form Factor | Full Height, ATX size |
Cooler | FAN sink Cooler (single slot) Temperature Control FAN keeps the noise level absolutely minimal and only increases the speed to improves the air flow and facilitates a highly efficient ventilation supports the cooling of the graphics card work load. |
Display Output | 9 x UHD ports @1080p or 3 group sets of 3840 x 1024 resolution (9) display @60Hz. * Eyefinity 1x3 mode landscape 3x3 formation @3840 x 3072 resolution (or @3840x2160 60Hz full screen * Supports Monitors or display panel resolution of 1280x1024, 1600x1200 or 1920x1080 for video wall. Each VHDCI group set of displays (3) requires total minimum of 3840x1024 resolution. Note : * No support for 4K resolution monitors / 4K TV (requires emulators) or 120Hz refresh rate. ** All displays must run at the same resolution in stretched desktop mode. ** Maximum horizontal resolution cannot exceed 16Kx16K under Windows. ** Total resolution display in 9x1 stretch desktop mode Eyefinity 9x1 @11520 x 1024 60Hz is the highest resolution limitation for AMD GPUs with 12kx12k resolution.
** Individual displays cannot be pivoted; Need to pivot group of three displays. |

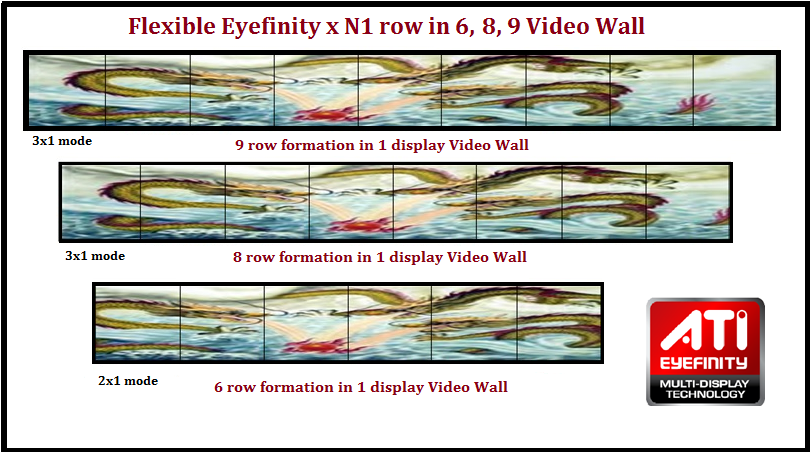

Maximum Resolution | UHD resolution display for clone, extend mode or 9 displays in one Eyefinity 1x3 mode landscape @3840 x 3072 resolution or 3x1 mode portrait. |
Power Consumption | System power supply 500 watts or above is required. |

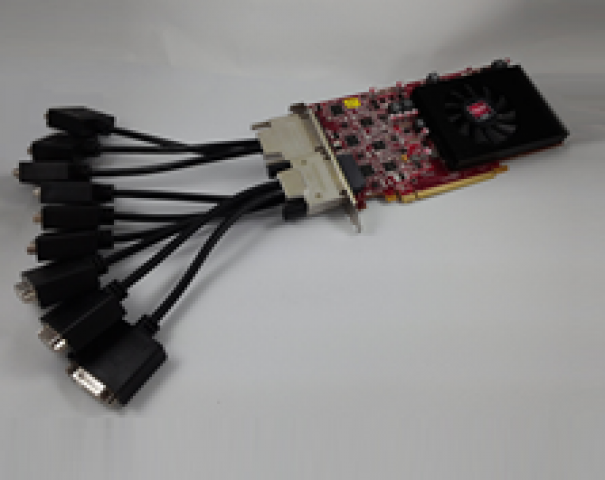

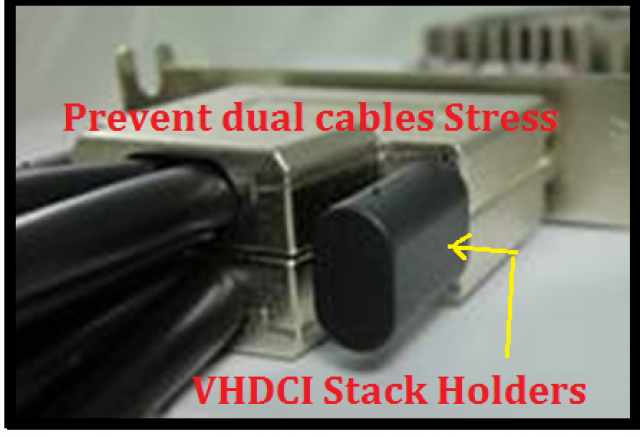

Accessory | CD Driver, Quick Installation Manual. 3 x 3 UHD output cables |
O/S support | - Windows® 10 - Windows 8.1 32/64-bit - Windows 7 32/64-bit - Windows Embedded Standard 7 32/64-bit - Windows Server® 2012 R2 64-bit - Windows Server 2008 R2 64-bit - Linux® / Ubuntu Linux |
Remark | Multi-display technology Eyefinity mode 3 displays supported only. (9 HDMI/DVI Displays) Independent resolutions, refresh rates, color controls, Display Grouping in 3 pairs of 3840x1024 resolution. (3 monitors combination per extend split screen display) Combine multiple displays to behave like a single large display in extend mode. Discrete Digital Multi-Point Audio (DDMA) x 3 channels per card Flexible Monitors Formation (Eyefinity) - 1x3 mode or 3x1 mode formation. Best Solution for 9 Displays in one Video Playback for UHD resolution Video Wall. Support EDID caching for no monitors loss on commercial Digital Signage, Video Wall, Infotainment etc.... EDID caching feature
- Supports No "Video Tearing" Effect in one UHD 4K Video Wall. Transmission based on Gauge of Wire : 0 to 15M over HDMI cable requirement : - HDMI (24AwG) cable can transmit the maximum distance up to 30m and support the resolution 720P, 1080I or 1080P; - HDMI (28AwG) cable can transmit the maximum distance up to 15m and support the resolution 720P, 1080I or 1080P; - HDMI (30AwG) cable can transmit the maximum distance up to 10m and support the resolution 720P, 1080I or 1080P DVI/HDMI Cable length - In general, cable lengths up to 15 feet (4.6 m) will work for display resolutions up to 1920 × 1200 For greater distances, the use of a DVI/HDMI booster – a signal repeater which may use an external power supply – is recommended to help mitigate signal degradation. |
*All displays must run at the same resolution in stretched desktop mode. Maximum horizontal resolution cannot exceed 16K under Windows.
** Stretched desktop mode available across displays attached to one card @12800x1024 60Hz resolution.
Only by special request : Configure Eyefinity resolution 3x3 mode setting at custom resolution setting @3840x2160 running 4Kx2K Video content to fit in full screen mode for one video wall displaying avoiding using "stretching" option in Video player as shown below :
Support EDID caching feature :

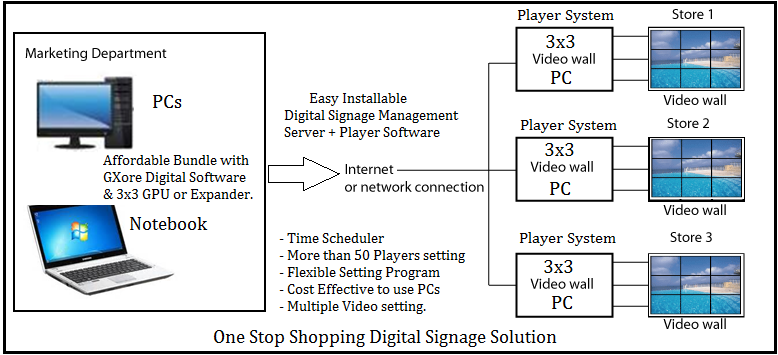

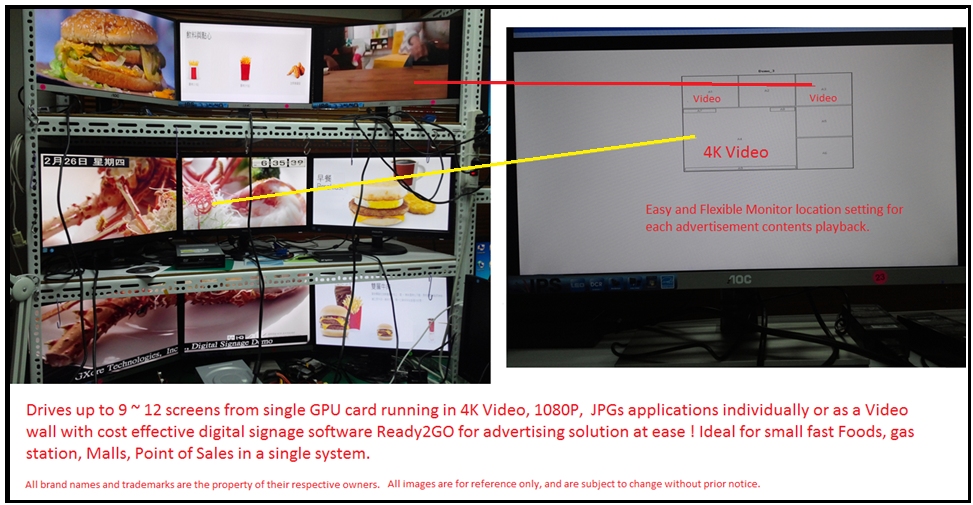

Option Low cost effective Digital Signage software bundle : One stop shopping for easy to use and maintenance for commercial VARs / retailers etc....

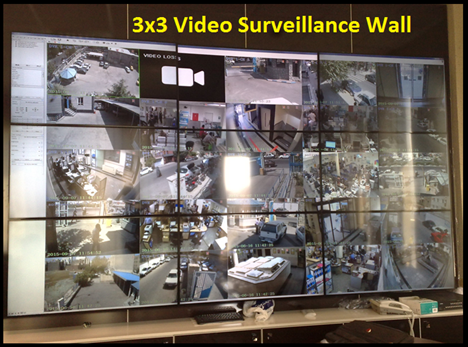

Application : Eyefinity 3x3 mode setting @3840x3072 resolution 60Hz Video Wall
.
Recommended Hardware System configuration for Multi-video’s playback :
(For Reference only)
- Processor : Intel Xeon CPU E3-1231 v3 @3.40GHz 3.40 GHz or Intel Xeon E3-1585 v5, Xeon E5-2670 @2.6GHz or E3 1500 v5 CPU (Major required CPU)
- Installed System Memory : 16.0 GB or above
- Operating System : Windows 7 / 8.1 / 10 64-bit O/S
- Motherboard : GA-H97M-D3H or Server Boards similar
- Power Supply : 500 watts PSU or above
****************************************************************************************
All images are for reference only, and are subject to change without prior notice.
All brand names and trademarks are the property of their respective owners.
Established as an OEM/ODM design center and service by a group of experienced engineers of over 15 years in the graphics solution for the IPC business, GXore Inc. Group has integrated the resources and competencies of Hong Kong, Taiwan and China. With its logistic subsidiary in Hong Kong, GXore Inc. group is empowered with a flexible global logistics. Leveraging the sales & finance strength of Taiwan, it has also established R&D Design House; Partner's manufacturing facilities (ROHS), QA center & After-sale RMA service center in China. Since its inception, GXore Inc. group has been specializing in IPC graphics design and manufacturing, providing the ODM as well as the customized OEM services to US, Europe, Japan and Korea. GXore Inc. group’s goal is to fully satisfy every demand of every customer by the highest standard of product quality in the most efficient way.
Sowing the Commercial Digital Signage Market : Next Trend in 4K/8K Digital demand Design for enabling UHD 4K/8K multi-screen display walls designed to attract, inform and engage audiences or foster collaborative interaction and decision making. Such configurations include: • Advertising & Point-of-Sale (e.g. digital billboards, posters and digital menus) • Command & Control, Operations or Process Control Centers (e.g. utilities, emergency services, security) • Conferences & Presentations (e.g. auditoriums, convention centers, conference rooms) • Entertainment/Infotainment & Events (e.g. sports arenas, movie theaters, concerts) • Informational Displays • Simulation & Training (e.g. flight, automobile or ship’s bridge simulators) • Video Conferencing with multi-audio conferencing. • UHD 4K, 3D Gaming and Entertainment Powerful, flexible and affordable multi-display graphics product the display wall market besides gaming entertainment, has been waiting for–offering the lowest TCO for powering display walls comprised of multi-screens, 6 x high display density and long-lasting, high quality multimedia performance. | |

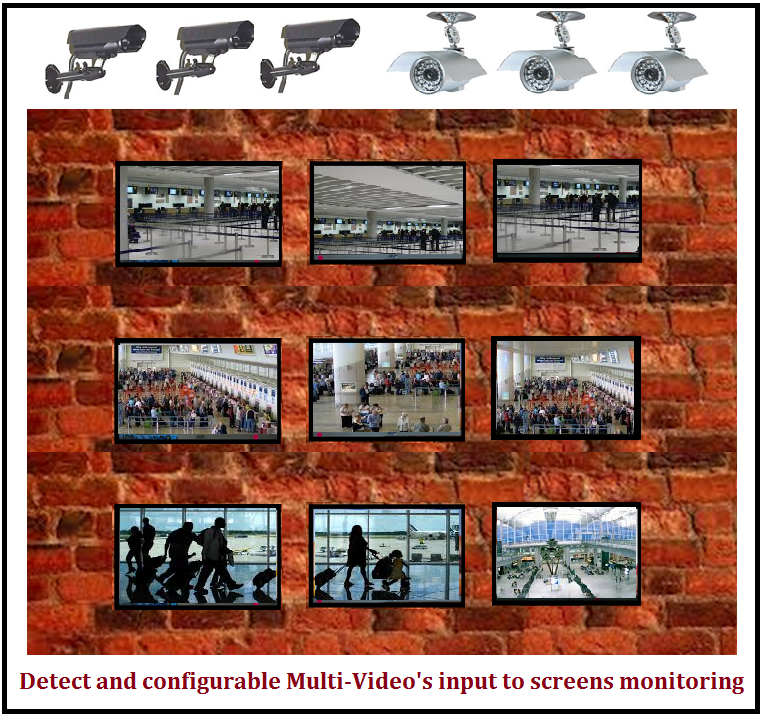

Support Multi-monitor Management Software enables you to tailor your display formation to the way you work and playback video contents, so you can manage increased amounts of information, video contents and improve your productivity.
Flexible and easy to use : Managing independent monitor display features for work and commercial sector :
Increase your work productivity for multi-Monitors display :
| |
Discrete Digital Multi-Point Audio (DDMA). Max 6x Independent Audio for HDMI output. | See more. Do more. Flexibly to tailor to your needs ! AMD Eyefinity technology enables you to run up to four independent and simultaneous displays with a single graphics card. By expanding your field of view across multiple high-resolution monitors, you can see more detail than ever, helping to increase your workflow productivity. You can manage multitasking more efficiently, and view more data, applications, and images at once. |
HD Gaming and Entertainment Solution @ Direct2Easy Connect. Innovative graphics display capabilities enabling 3 times massive desktop workspaces and ultra-immersive visual environments for the ultimate HD Gaming and computing experience. | |
Bezel Compensation Utility Feature : Bezel Compensation Support : Driver level bezel correction allows you compensate for the dead space between your LCDs and converts this area into a blind spot, rather than a hard stop. Prior to introduction of bezel correction, textures would end on one monitor and abruptly start on the second, creating a very disjointed image. The bezel correction works by creating a custom resolution for your configuration and broadcasting this as the native setting for all your apps. Bezel correction is an optional step when setting up a new Eyefinity group in the Catalyst control center, so make sure you don’t miss it. You might not notice it in a racing game when looking at the grass or sky, but it will stick out like a sore thumb when you’re looking at a face that has been incorrectly split in two by a 4-inch bezel. |
