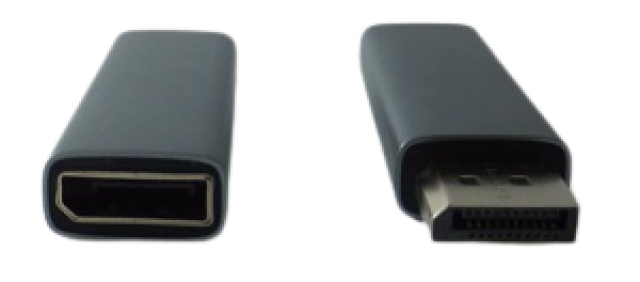

GX-EDID DP 4K EDID Emulator

Features:

• DisplayPort V1.2
• Supports resolutions up to 3840x2160 @60Hz, 2560x1600 , 2560x1440, and 1920x1080 @144Hz.
• Bandwidth up to 5.4 Gbps per channel (21.6 Gbps total)
• HDCP compliant.
• No need external power - powered by source.

Specifications:

• Connectors:

Input: Male DisplayPort

Output: Female DisplayPort

• Power: By DP Source
• Dimensions : WxDxH: 20.8x65.7x11mm

Note:

1.     Monitor must be connected before using EDID emulator, not support headless

2.    Not support MST Mode – Not allow next stage DP device connected
