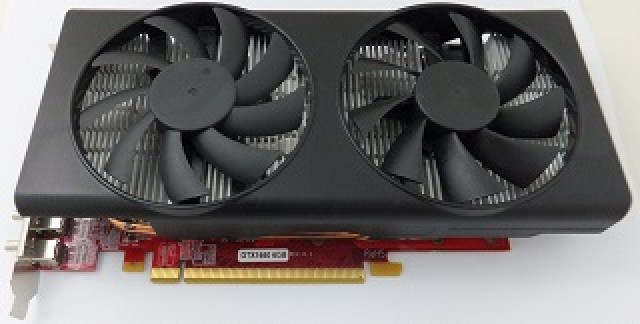

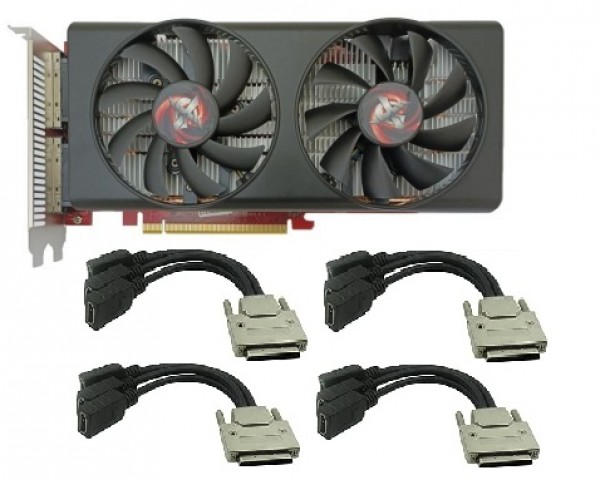

GTX1660 Super 12 x UHD

GPU

 NVIDIA GTX 1660 Super

GPU Core Clock

 1,785 Mhz core clock

Video Memory

 6GB GDDR5 graphics memory

Stream Processors

1408 SP

Memory Clock/Bandwidth

14Gbps GDDR5 /192-bit

APIs supported

DirectX® 12,Supports NVIDIA NVENC Turing Encoder

BUS Interface

PCIe® 3.0 compliant, x16

Form Factor

204.75 x 111.15 mm; ATX size , Dual-slot,

FAN Cooler

Discreet active FAN cooler , (Dual slot, Copper Core, Temp-control FAN speed)

Display Ports Output

12 x UHD output @5760x1080 60Hz , supports 4x  Discrete Digital Multi-Point Audio capability. (4 x DDMAs).

Additional 3.3V power circuitry to support external dongles driving compatibility.

Features 12 X UHD with hardware EDID caching, low power

Maximum Resolution

One set maximum resolution of 5760X1080 60Hz. (@1902X1080)

Surround resolution supported :

5760x4320 60Hz resolution  (Surround 1x4 mode)

5760x3240 60Hz resolution(Surround 1x3 mode)

11520 x 2160 resolution 60Hz (Surround 2x2 mode)

User define resolution 60Hz (Surround 4x1 mode)

*Supports 4x1,3x1,2x2,1x3,1x4 Surround mode

Support Custom Resolution

Power Consumption

 < 125W (8-pin external power input required)

Accessories

CD Driver, Quick Installation Manual.

O/S support

- Windows® 10
- Windows 8.1 32/64-bit
- Windows 7 32-bit
- Windows 7 64-bit
- Windows Embedded Standard 7 32-bit
- Windows Embedded Standard 7 64-bit
- Windows Server® 2012 R2 64-bit
- Windows Server 2008 R2 64-bit
- Linux® / Ubuntu Linux

Feature Summary

 No Video Tearing effect supported:

 Nvidia Surround multi-display technology

• Up to 4x 4K displays supported (UHD 4K resolution)

• Independent resolutions, refresh rates, color controls, and video overlays

• Display grouping (Combine multiple displays to behave like a single large display)
• Nvidia App AccelerationSupports NVIDIA NVENC Turing Encoder

• DisplayPort 1.2

• Max resolution: 5760x1080 @ 60 Hz per set ( 3 monitors )
• Multi-Stream

• High bit-rate audio

• Quad HD/4K/UHDTV display support

• 1080p60 Stereoscopic 3D
