RX6600_6xUHD(Dual Slot)

AMD Radeon™ RX 6600 (7 nm ,RDNA™ 2 GPU Video Controller for Digital Signage / Video Wall

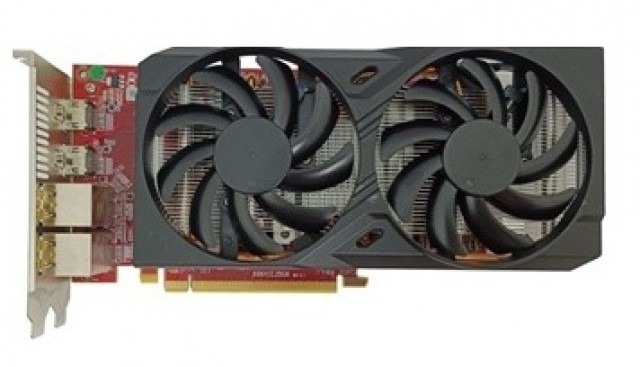

 Temp. control FAN sink Cooler with 2 heatpipe (Dual slot)

 Temperature Control FAN with Heatpipes keeps the noise level absolutely minimal (low Dbs) and only   increases the speed to improves the air   flow and facilitates a highly efficient ventilation   supports the cooling of the graphics card work load.

Display Ports Output

4 output 4K2K 60Hz. , 2 output 1920x1080 60Hz

* Eyefinity  landscape in 3x2 formation @5760X2160 resolution ( @1920x1080 60Hz)

* Supports Monitors or display panel resolution of 1920x1080 or 3840x2160 for video wall.

** All displays must run at the same resolution in stretched desktop mode.

**  Maximum horizontal resolution cannot exceed 16Kx16K under Windows.

** 60Hz is the highest resolution limitation for AMD GPUs with 16kx16k resolution.

** Individual displays cannot be pivoted; Need to pivot group of three displays.

Maximum Resolution

 Eyefinity resolution supported :

 Eyefinity  mode landscape @5760X2160 resolution ( @1920x1080 60Hz)

 Eyefinity 3x2 mode @5760X2160 resolution ( @1920x1080   60Hz) resolution Landscape formation.

Power Consumption

110 watts (full load) (8-pin external power input required)

Accessories

CD Driver, Quick Installation Manual.

O/S support

- Windows® 10 32/64-bit
- Windows 8.1 32/64-bit
- Windows 7 32/64-bit
- Windows Embedded Standard 7 32-bit
- Windows Embedded Standard 7 64-bit
- Windows Server® 2012 R2 64-bit
- Windows Server 2008 R2 64-bit
- Linux® / Ubuntu Linux

Feature Summary

 AMD Eyefinity 2.0

• Easy multi-display setup and customization
• Virtually unlimited number of display devices
• Stereo 3D-multi-display stereoscopic 3D support via DisplayPort 1.2
• 16K * 16K maximum display group resolution-output up to 268 megapixels per GPU.

Full 30-bit Display Pipeline

• With a full 30-bit display pipeline producing more than one billion colors (10-bit per RGB component). It is ideally suited for applications that benefit from accurate color reproduction and superior visual quality especially from medical, Professional Imaging and CAD/CAM sector.

High Efficiency Video Coding (HEVC) is a video compression standard which offers double the data compression ratio at the same or higher level of video quality and the same bit rate as the AVC technique. High Efficiency Video Coding supports resolutions up to 8192×4320, which includes 8K ultra-high definition.

Whether you are streaming a video, video chatting with a friend, playing a clip via Windows media player, or watching DVD/Blu-ray, you are most probably leveraging AMD’s Unified Video Decoder (UVD) seamlessly. The HD content became popular with the rise of Blu-ray and HD-DVD. It came with huge amounts of data to be compressed, which led to the development of computationally extensive standards such as H.264 and VC1. UVD is a dedicated hardware video decoding block that facilitates the full, bit-accurate decoding of VC-1 .

Frame Rate Target Control (FRTC)

• Frame Rate Targeting Control is a feature that enables users the ability to set a maximum target frame rate when playing an application in full screen exclusive mode. The benefits that this may allow a user to experience are reduced GPU power consumption (great for games running at frame rates much higher than the display refresh rate) and reduce heat generation and as a result of that, lower fan speed/noise on the graphics card.

AMD LiquidVR™ Technology

•  AMD LiquidVR™ technology – the benefits are applicable to a broad spectrum of VR applications, including interactive cinema, education, simulation, telepresence, social media, medical, real estate e-commerce, simulation training and much more.

AMD TrueAudio / Discrete Digital Multi-Point Audio (3x DDMAs)

• AMD High Definition Audio Device signal is passed through the HDMI and DisplayPort (including mini DisplayPort) connections on the graphics card supports Discrete Digital Multi-Point Audio (DDMA) technology which can simultaneously output up to six independent audio streams with video at a time to multiple devices.

AMD FreeSync™ technology

• Allows a compatible graphics card and monitor to dynamically change frame rates for the optimum display quality without tearing or stuttering.

Support Hardware EDID caching feature :

Supports EDID management with the display driver installation. EDID reports monitors’ capabilities, including its available resolutions, refresh rates, and display timings. When there is a missing EDID or bad signal communication due to a disconnected display, the feature saves the monitor’s EDID, keeping your configuration intact. You can alternatively force an EDID on a graphics card output, with benefits in a wide variety of usage scenarios with multi-displays installation.

- Supports No "Video Tearing" Effect in one UHD 4K Video Wall.

  Bezel Compensation :

Stretches display resolutions to prevent bezel interference and image distortion when displaying a single large image across multiple display.

  Connectivity Requirement :

Transmission based on Gauge of Wire : 0 to 15M over HDMI cable requirement :

- HDMI (24AwG) high speed cable can transmit the maximum distance up to 30m and support the resolution 720P, 1080I or 1080P;

- HDMI (28AwG) high speed cable can transmit the maximum distance up to 15m and support the resolution 720P, 1080I or 1080P;

- HDMI (30AwG) cable can transmit the maximum distance up to 10m and support the resolution 720P, 1080I or 1080P

DVI/HDMI  Cable length - In general, cable lengths up to 15 feet (4.6 m) will work for display resolutions up to 1920 × 1200

For greater distances, the use of a DVI/HDMI booster – a signal repeater which may use an external power supply – is recommended to help mitigate signal degradation.

**Note: HDR content requires that the system be configured with a fully HDR-ready content chain, including: graphics card,  monitor/TV, graphics driver and application.
