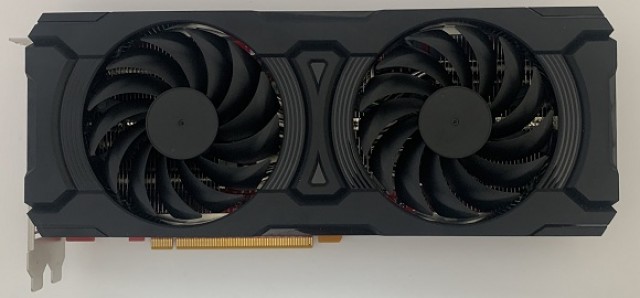

RTX3070HIG6-L7

GPU

 NVIDIA RTX 3070

GPU Core Clock

Base : up to 1500 MHz Boost : up to 1725 MHz

Video Memory

 8GB GDDR6 graphics memory

Cuda Cores

 5888

Memory Clock/Bandwidth

14Gbps GDDR6 /256-bit

APIs supported

NVIDIA ampere streaming multiprocessors

BUS Interface

PCIe® 3.0 compliant, x16

Form Factor

270  x 125 mm; ATX size , Dual-slot,

FAN Cooler

Discreet active FAN cooler , (Dual slot, Copper Core, Temp-control FAN speed)

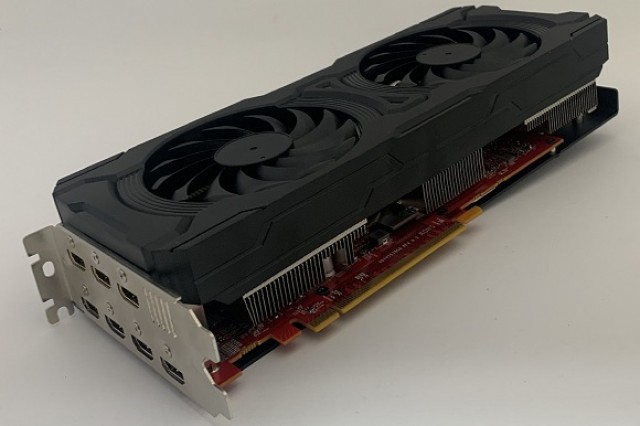

Display Ports Output

6 x UHD+ UHD(monitor) ,output 3 sets @3840x1080 60Hz , supports

Features 6X UHD with hardware EDID caching, low power

Maximum Resolution

One set maximum resolution of 3840X1080 60Hz. (@1902X1080)

Surround resolution supported :

3840x3240 60Hz resolution(Surround Landscape 1x3 mode)

11520x1080 60Hz resolution(Surround Landscape 3x1 mode)

*Supports 3x1,1x3 Surround mode

Support Custom Resolution

Power Consumption

 < 220W (8+8-pin external power input required)

Accessories

CD Driver, Quick Installation Manual.

O/S support

- Windows® 10
- Windows 8.1 32/64-bit
- Windows 7 32-bit
- Windows 7 64-bit
- Windows Embedded Standard 7 32-bit
- Windows Embedded Standard 7 64-bit
- Windows Server® 2012 R2 64-bit
- Windows Server 2008 R2 64-bit
- Linux® / Ubuntu Linux

Feature Summary

 No Video Tearing effect supported:

 Nvidia Surround multi-display technology

• Independent resolutions, refresh rates, color controls, and video overlays

• Display grouping (Combine multiple displays to behave like a single large display)
• NVIDIA ampere streaming multiprocessors

• Max resolution: 3840x1080 @ 60 Hz per set ( 2 monitors )
• Multi-Stream

• High bit-rate audio

• Quad HD/4K/UHDTV display support

• 1080p60 Stereoscopic 3D
