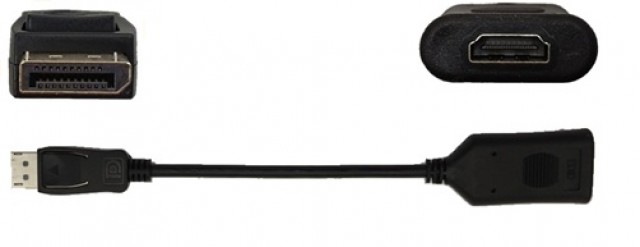

GX- DP2HM110 (DP to HDMI 4K@60 EDID Emulator)

product type	PCI-E
Description	4K HDMI 2.0b EDID Emulator, supports hardware smart EDID caching for no display loss in displaying on commercial Digital Signage, Video Wall and Infotainment etc. Supports resolutions up to 3840x2160 @60Hz , 2560x1600 , 2560x1440, and 1920x1080 @144Hz.

Feature :

- HDMI 2.0b.

- Supports resolutions up to 3840x2160 @60Hz, 2560x1600 , 2560x1440, and 1920x1080 @144Hz.

- Bandwidth up to 4.5Gbps per channel (18 Gbps)

- HDCP 2.2 compliant.

- No need external power - powered by source.

- No need external HDMI 2.0 EDID emulator

Specifications:

- Connectors:

- Input: Male DisplayPort

- Output: Female HDMI

- Power: By DP Source

- Dimensions : LxWxH : 249 x 33 x 8 mm

Note:

- Monitor must be connected before using EDID emulator.

- Not support MST Mode .

- Not support next stage DP devices without power supported.

Gxore DP2HM110 : DP-HDMI 2.0 with EDID Emulator

Advantage : Max. resolution 3840X2160 60Hz

Advantage : low cost

Advantage : No need external HDMI 2.0 EDID emulator

Advantage : Small size ( Dimensions : LxWxH : 249 x 33 x 8 mm )

Compatitor product

(1) DP-HDMI 2.0 Active dongle + HDMI 2.0 EDID

Advantage : Max. resolution 3840X2160 60Hz

Disadvantage : High cost, Larger size and in-conveinent

Disadvantage : Need external HDMI 2.0 EDID emulator

(2) DP-HDMI 1.4 (or 2.0) Active dongle + HDMI 1.4 EDID

Advantage : lower cost, larger size and in-conveinent

Disadvantage : Need external HDMI 1.4 EDID emulator

Disadvantage : Max. resolution 3840X2160 30Hz /1920X1080 60Hz


: : : :
