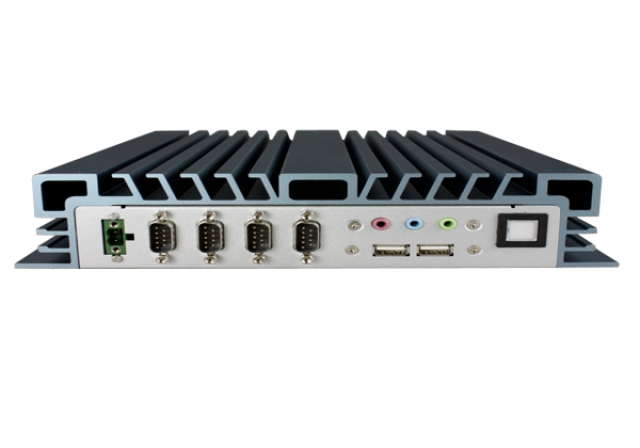

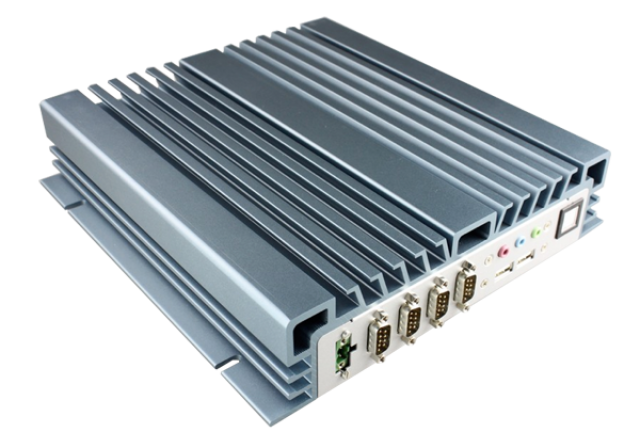

IPC-T56N
|
Fan-less Box PC is ideal for embedded and automation applications. This embedded hardware platform is designed with AMD® T56N processor, which is designed to support DDR3 SDRAM and runs at a faster speed of 1.65 GHz while still maintaining the same low power consumption and attractive price point. Also, IPC-T56N provides high reliability rugged case not only for great protection from EMI, cold and heat, but also integrated with passive cooling design for quiet fan-less operation such as Transportation, Surveillance and Automation.
- Design based on AMD® T56N Processor (1M Cache, 1.65GHz)
- Memory support DDR3 1333 MHz SODIMM up to 4GB
- 2 x GbE support, HD Audio, Rich I/O interface with 6 x USB, 4 x COMs,
- 1 x mini PCIe for expansion
- Display configuration : VGA and HDMI display output.
- Support 1x 2.5” SATA HDD and 1x CFast slot
- Environment from -20° C ~ +60° C wide operating temperature
- Simple, elegant ID design with IP54 front panel protection
Established as an OEM/ODM design center and service by a group of experienced engineers of over 15 years in the graphics solution for the IPC business, GXore Inc. Group has integrated the resources and competencies of Hong Kong, Taiwan and China. With its logistic subsidiary in Hong Kong, GXore Inc. group is empowered with a flexible global logistics. Leveraging the sales & finance strength of Taiwan, it has also established R&D Design House; Partner's manufacturing facilities (ROHS), QA center & After-sale RMA service center in China. Since its inception, GXore Inc. group has been specializing in IPC graphics design and manufacturing, providing the ODM as well as the customized OEM services to US, Europe, Japan and Korea. GXore Inc. group’s goal is to fully satisfy every demand of every customer by the highest standard of product quality in the most efficient way.
| Specification | |
| CPU | AMD T56N (1M Cache, 1.65Ghz) |
| Processor System Chipset | AMD G-Series + A50M FCH |
| System Memory | Support 1 x 204-pin SODIMM 4GB DDR3 1066MHz |
| Display | VGA: Up to 2048 x 1536 resolution HDMI: Supports 1920 x 1080p at 60 Hz, 36 bpp. Dual Display: Yes (VGA+LVDS or VGA + HDMI or HDMI + LVDS) DirectX® 11 graphics with UVD 3.0 2D Acceleration, 3D Acceleration Motion Video Acceleration Supports DVD, Blu-ray*Hardware decode (UVD 3):H.264, VC-1 and MPEG2 |

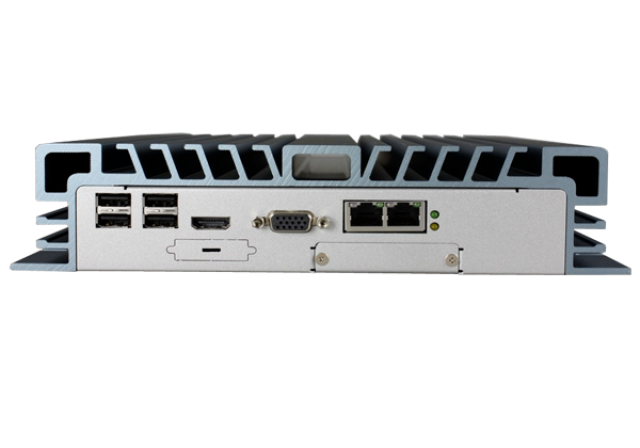

| LAN supported | Enternet LAN : 10/100/1000Mbps Controller: GbE1: Realtek RTL8111E-VB-GR 10/100/1000Mbps, GbE2: Realtek RTL8111E-VB-GR 10/100/1000Mbps Connector: 2 RJ45 on Rear I/O |
| Audio | Realtek ALC892, High Definition Audio(HD),Line-in, Line out, Mic-in |
| Storage Devices | ● mSATA: (Supports either mSATA or full size miniPCIe, selected by BIOS, default support miniPCIe) ● SATA: 1 x SATA II (Max. Data Transfer Rate 300 MB/s) |
| Power Input | Single 12V DC power input |
| Environment Condition | ●Operational -20 ~ 60° C (-4 ~ 140° F) (Operational humidity: 40° C @ 95% RH Non-Condensing) ● Non-Operational -40° C ~ 85° C and 60° C @ 95% RH Non-Condensing |
Dimension | 238x245x55 (mm) |
Remark | |
All images are for reference only, and are subject to change without prior notice.
All brand names and trademarks are the property of their respective owners.
