IPC-2000A Fanless, Dual Core, E-System
|
Model : IPC-2000A
A Fan-less Box PC is ideal for embedded and automation applications. This embedded hardware platform is designed with Intel ATOM N2600 Dual Core 1.6Ghz processor, which is designed to support 1x 204-pin DIMM with up to 4GB DDR3 SDRAM and runs at a faster speed of 800Mhz while still maintaining the same low power consumption and attractive price point. Also, IPC-2000A provides high reliability rugged case not only for great protection from EMI, cold and heat, but also integrated with passive cooling design for quiet fan-less operation such as Transportation, Surveillance and Automation.
Features :
•Based on Intel Atom N2600 processor. compared with last generation, with power saving and performance upgraded. Support full HD decoder and solution for embedded system.
Established as an OEM/ODM design center and service by a group of experienced engineers of over 15 years in the graphics solution for the IPC business, GXore Inc. Group has integrated the resources and competencies of Hong Kong, Taiwan and China. With its logistic subsidiary in Hong Kong, GXore Inc. group is empowered with a flexible global logistics. Leveraging the sales & finance strength of Taiwan, it has also established R&D Design House; Partner's manufacturing facilities (ROHS), QA center & After-sale RMA service center in China. Since its inception, GXore Inc. group has been specializing in IPC graphics design and manufacturing, providing the ODM as well as the customized OEM services to US, Europe, Japan and Korea. GXore Inc. group’s goal is to fully satisfy every demand of every customer by the highest standard of product quality in the most efficient way.
Specification | |
Product Number | IPC-2000 |
Processor | Intel Atom N2600 1.6GHz Dual Core |
System Chipset | Intel NM10 |
Memory | Support 1 x 204-pin DDR3 SO-DIMM - 800MHz (Max up to 4GB) |
Graphic Chipset | Intel integrated graphics GMA3600, support 3D, 2D, and video capabilities , DX10. |
Display | • HDMI: up to 1920 x 1200 resolution • VGA: 1920 x 1200 |
Storage | Support 2.5” SATA HDD/SSD |
Ethernet | 2x Realtek 8111E (10/100/1000 Mbps) |
AUDIO | Realtek ALC662 6-channel HD audio CODEC |
PWR | •Input Voltage: 12V (DC in ) |
OS Support | Windows 7 / Windows 8 / XP. Linux |
Dimension | 210 x 139 x 41mm |
I/O Interface

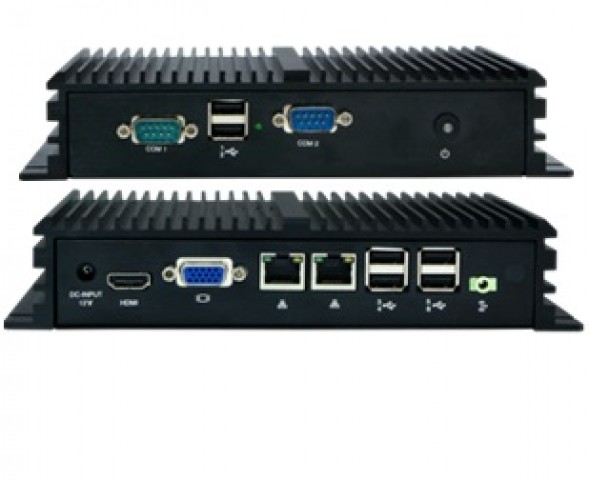

Front view :
- 2 x com port
- 2x USB 2.0/1.1 port
- Power Button
Back View :
- 1x DJ Jack
- 1x HDMI
- 1 x D-SUB
- 2 x GigaLan (RJ-45)
- 4x USB2.0/1.0 port
- 1x audio-out
Internal Expansion :
All brand names and trademarks are the property of their respective owners.
