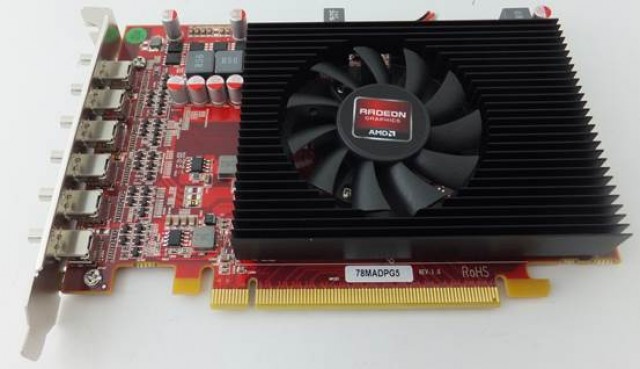

78MADPG5-G6 6x mDP 1.2, 2GB GDDR5 Edition
|
| Specification | |
| GPU | AMD Radeon™ HD7800 |
| GPU Core clock | 800Mhz core clock |
| Video Memory | 2GB - GDDR5 |
| Memory Clock / Bandwidth | 1125Mhz GDDR5 (5.0Gbps clock / 128-bit) |
| APIs supported | OpenGL 4.2 OpenCL 1.2 DirectX 11.1 |
| BUS | PCIe® 3.0 compliant, x16 |
| Board Size / Ventilation | FAN sink Cooler (Single slot) Temperature Control FAN keeps the noise level absolutely minimal and only increases the speed to improves the air flow and facilitates a highly efficient ventilation supports the cooling of the graphics card work load. |
| Display Output | 6 x Mini DisplayPort 1.2 @4096 x 2160, at 60Hz, per display with Mini DisplayPort output (6 x DDMAs supported). Delivers high bit rate audio, higher data bandwidth and multi-streaming audio capabilities Supports 1920x1080 HDMI Displays VSR @ 2560x1440 60Hz. |
| Maximum Resolution | 9600 x 1200 resolution Surround Viewing. (Eyefinity 5x1 mode) 5760 x 2400 resolution (6* 1920x1200 DVI monitors) Eyefinity 2x2 / 3x2 mode / 2x3 / 4x1 / 1x4 landscape / 5x1 / 1x5 / 6x1 / 1x6 Landscape or Portrait. Independent 6 x Clone or Extend Mode in Landscape or Portrait supported. No dongles required. |
| Power Consumption (loaded) | < 65 Watts (No external power input required) System Power Supply requirement : 500 watts or above. |
| Accessory | CD Driver, Quick Installation Manual. |
| O/S support | - Windows® 10 - Windows 8.1 32/64-bit - Windows 7 32-bit - Windows 7 64-bit - Windows Embedded Standard 7 32-bit - Windows Embedded Standard 7 64-bit - Windows Server® 2012 R2 64-bit - Windows Server 2008 R2 64-bit - Linux® / Ubuntu Linux |
| Remark | High dynamic-range (HDR) rendering, integrated HD Audio controller, AMD HD3D Technology, AMD CrossFireX Technology, AMD App Acceleration, Adaptive Anti-Aliasing, Morphological Anti-Aliasing (MLAA), Super-Sample Anti-Aliasing (SSAA), AMD Eyefinity Technology 2.0, AMD HD Media Accelerator. Bezel Compensation : Stretches display resolutions to prevent bezel interference and image distortion when displaying a single large image across multiple display.
Enhanced color gamut remapping for wide color gamut displays in UHD display. High Density Video Wall : Combine multiple R9280DPG5 graphics cards and drive 12 or more displays. Bezel Compensation : Stretches display resolutions to prevent bezel interference and image distortion when displaying a single large image across multiple display.
No Video Tearing effect supported:
|
Soft EDIDs Emulation and force EDIDs caching feature.
*Bezel Compensation and Software Projector Overlapping features.
Bezel Compensation :
Stretches display resolutions to prevent bezel interference and image distortion when displaying a single large image across multiple display.
Projector Overlap Support
Easily refine display alignment settings when configuring multiple, high resolution display devices or projectors.
Full 30-bit Display Pipeline
Supports a full 30-bit display pipeline producing more than one billion colors (10-bit per RGB component) is ideally suited for applications that benefit from accurate color reproduction and superior visual quality.
Software support for Flexible Monitors Formation (One display wall) designed for the Digital Signage :
Recommended Hardware System configuration for Multi-video’s playback :
(For Reference only)
- Processor : Intel Xeon CPU E3-1231 v3 @3.40GHz 3.40 GHz or Intel Xeon E3-1585 v5, Xeon E5-2670 @2.6GHz or E3 1500 v5 CPU (Major required CPU)
- Installed System Memory : 16.0 GB or above
- Operating System : Windows 7 / 8.1 / 10 64-bit O/S
- Motherboard : GA-H97M-D3H or Server Boards similar
- Power Supply : 500 watts PSU or above
****************************************************************************************
All images are for reference only, and are subject to change without prior notice.
All brand names and trademarks are the property of their respective owners.
Established as an OEM/ODM design center and service by a group of experienced engineers of over 15 years in the graphics solution for the IPC business, GXore Inc. Group has integrated the resources and competencies of Hong Kong, Taiwan and China. With its logistic subsidiary in Hong Kong, GXore Inc. group is empowered with a flexible global logistics. Leveraging the sales & finance strength of Taiwan, it has also established R&D Design House; Partner's manufacturing facilities (ROHS), QA center & After-sale RMA service center in China. Since its inception, GXore Inc. group has been specializing in IPC graphics design and manufacturing, providing the ODM as well as the customized OEM services to US, Europe, Japan and Korea. GXore Inc. group’s goal is to fully satisfy every demand of every customer by the highest standard of product quality in the most efficient way.
| Sowing the Commercial Digital Signage Market : Next Trend in 4K/8K Digital demand Design for enabling UHD 4K/8K multi-screen display walls designed to attract, inform and engage audiences or foster collaborative interaction and decision making. Such configurations include: • Advertising & Point-of-Sale (e.g. digital billboards, posters and digital menus) • Command & Control, Operations or Process Control Centers (e.g. utilities, emergency services, security) • Conferences & Presentations (e.g. auditoriums, convention centers, conference rooms) • Entertainment/Infotainment & Events (e.g. sports arenas, movie theaters, concerts) • Informational Displays • Simulation & Training (e.g. flight, automobile or ship’s bridge simulators) • Video Conferencing with multi-audio conferencing. • UHD 4K, 3D Gaming and Entertainment Powerful, flexible and affordable multi-display graphics product the display wall market besides gaming entertainment, has been waiting for–offering the lowest TCO for powering display walls comprised of multi-screens, 6 x high display density and long-lasting, high quality multimedia performance.
|
| Support Multi-monitor Management Software enables you to tailor your display formation to the way you work and playback video contents, so you can manage increased amounts of information, video contents and improve your productivity.
Flexible and easy to use : Managing independent monitor display features for work and commercial sector :
Increase your work productivity for multi-Monitors display :
|
Discrete Digital Multi-Point Audio (DDMA). Max 6x Independent Audio for HDMI output. | See more. Do more. Flexibly to tailor to your needs ! AMD Eyefinity technology enables you to run up to four independent and simultaneous displays with a single graphics card. By expanding your field of view across multiple high-resolution monitors, you can see more detail than ever, helping to increase your workflow productivity. You can manage multitasking more efficiently, and view more data, applications, and images at once. |
| HD Gaming and Entertainment Solution @ Direct2Easy Connect. Innovative graphics display capabilities enabling 3 times massive desktop workspaces and ultra-immersive visual environments for the ultimate HD Gaming and computing experience. |
| Bezel Compensation Utility Feature : Bezel Compensation Support : Driver level bezel correction allows you compensate for the dead space between your LCDs and converts this area into a blind spot, rather than a hard stop. Prior to introduction of bezel correction, textures would end on one monitor and abruptly start on the second, creating a very disjointed image. The bezel correction works by creating a custom resolution for your configuration and broadcasting this as the native setting for all your apps. Bezel correction is an optional step when setting up a new Eyefinity group in the Catalyst control center, so make sure you don’t miss it. You might not notice it in a racing game when looking at the grass or sky, but it will stick out like a sore thumb when you’re looking at a face that has been incorrectly split in two by a 4-inch bezel. |
