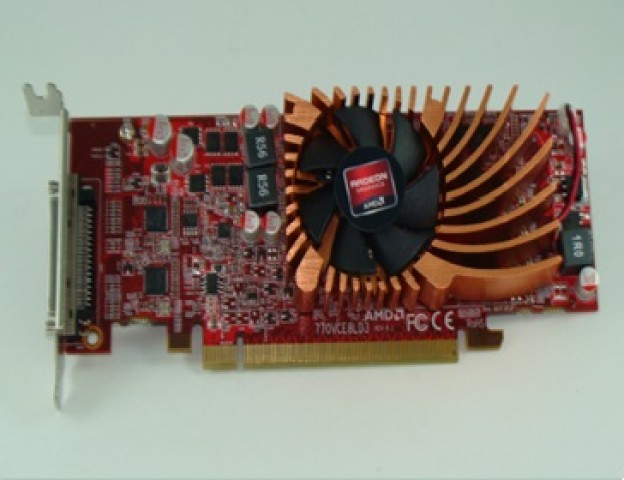

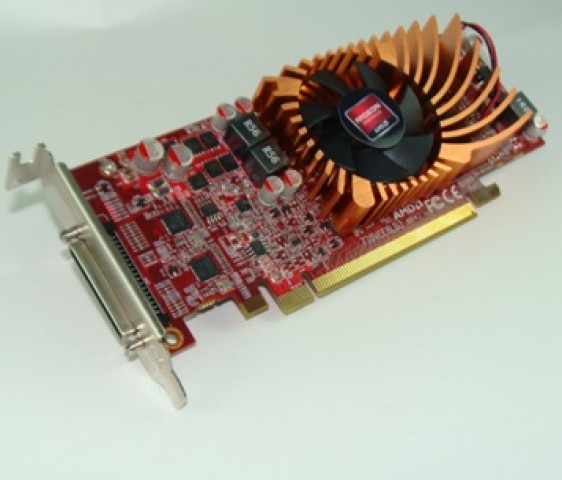

775AVULD3 Quad Dual link DVIs Edition

800Mhz DDR3 (128-bit) memory

• Active 4x Dual link DVIs@ per display output support 2560 x 1440 WQHD resolution 29" monitors or 4 x 2560 x 1600 16:9 aspec ratio new 30" monitors.
• Support for up to 4x 1920 x 1080 @120Hz fresh rate for 3D view.

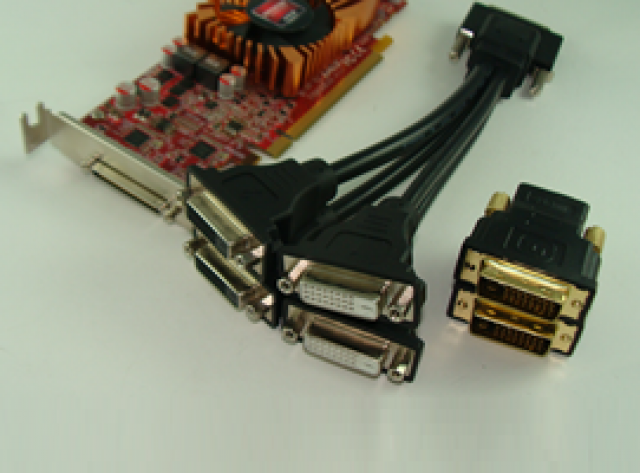

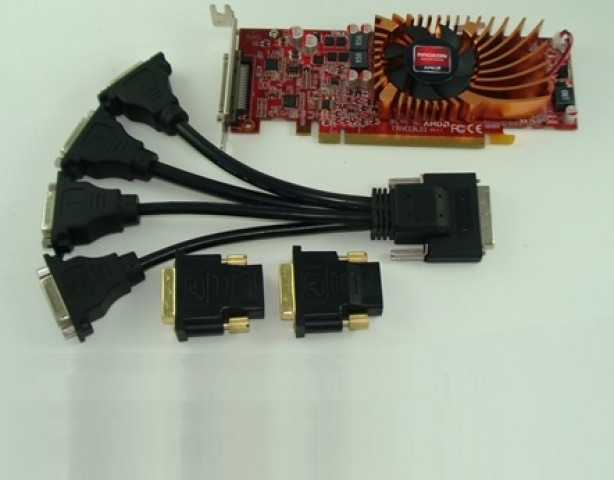

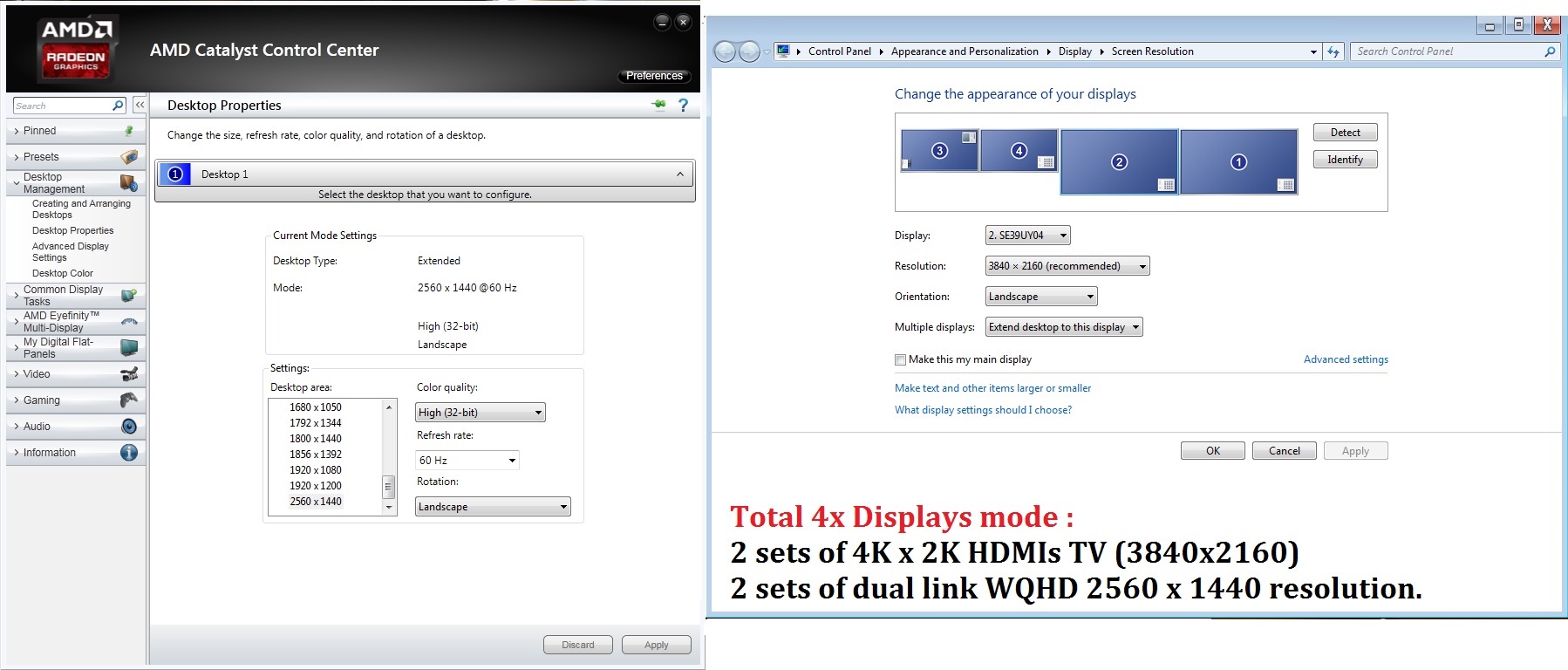

• Support for 2x Dual link DVIs resolution + 2 sets of 4K HDMI Ports (Bundled via 2 DVI to HDMI adapters)

Supports QSXGA (Quad Super Extended Graphics Array) display resolution of 2560x2048 pixels with a 5:4 aspect ratio Grayscale monitors primarily for medical use.

Supports Independent resolution per output - Clone or Extend Mode in Landscape or Portrait supported.

Flexible supported display configuration : Total 4 Displays

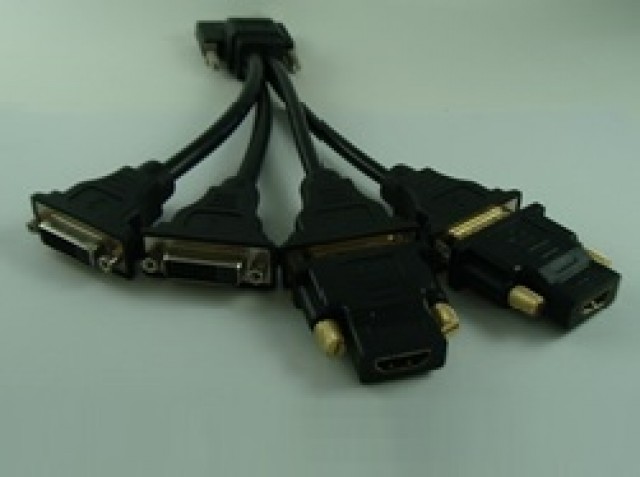

1> 1920 x 1080 via VHDCI DVIs cable

< 70 Watts (No external power input required)

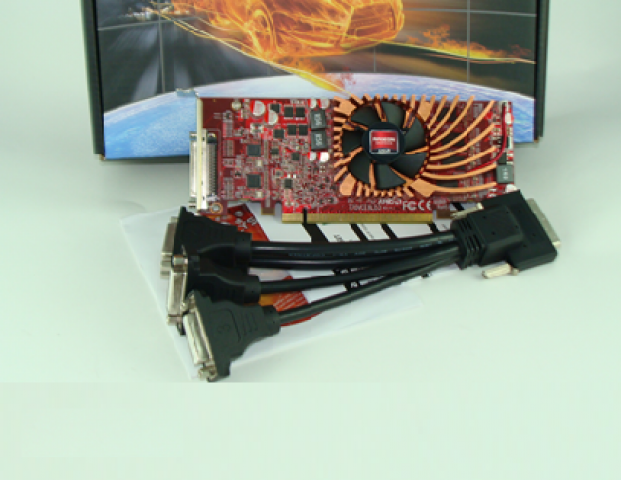

4 x WQHD DVIs port cables,

- Windows® 10 32-bit / 64-bit
- Windows 8.1 32-bit / 64-bit
- Windows 7 32-bit
- Windows 7 64-bit
- Windows Embedded Standard 7 32-bit
- Windows Embedded Standard 7 64-bit
- Windows Server® 2012 R2 64-bit
- Windows Server 2008 R2 64-bit
- Linux® / Ubuntu Linux

Windows XP limited to 2 Displays configuration

Direct2Display4X EyeFinity (No active dongles required)

AMD Eyefinity multi-display technology

• Up to 4 WQHD monitors supported (2560 x 1440 or 1920 x 1080 120Hz displays)
• Independent resolutions, refresh rates, color controls, & video overlays
• Display grouping
       - Combine multiple displays to behave like a single large display


**This Card only outputs DVI-D ( does not supply VGA signal)

Bezel Compensation :

Stretches display resolutions to prevent bezel interference and image distortion when displaying a single large image across multiple display.

Commercial Sector

• Many single and dual-monitor users today could derive real productivity benefits from using three or more monitors. Additional workspace and the ability to view multiple windows without constantly moving other windows from front to back can lead to faster project completion and much less user frustration.
• Today's existing two-card multiple-monitor solutions are often too complex for the average company to support. To move multiple-monitor solutions beyond a niche market, PC and monitor vendors must offer hardware and software packages that make multiple-monitor workstations easier to set up and manage for everyday users.
• Cost is a key factor. Most businesses today find themselves with large IT needs but small IT budgets. If they're going to embrace multiple monitors, the costs have to be reasonable and the return on investment needs to occur in the very near term.

Design for enabling multi-screen display designed to attract, inform and engage audiences or foster collaborative interaction and decision making. Such configurations include:

• Advertising & Point-of-Sale (e.g. digital billboards, posters and digital menus)

• Command & Control, Operations or Process Control Centers (e.g. utilities, emergency services, security)

• Conferences & Presentations (e.g. auditoriums, convention centers, conference rooms) • Entertainment/Infotainment & Events (e.g. sports arenas, movie theaters, concerts)

• Informational Displays • Simulation & Training (e.g. flight, automobile or ship’s bridge simulators)

• Video Conferencing

Powerful, flexible and affordable multi-display graphics product the display wall market besides gaming entertainment, has been waiting for–offering the lowest TCO for powering display comprised of 3 screens, high display density and long-lasting, high quality multimedia performance.

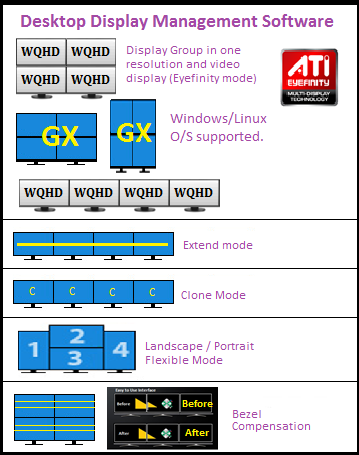

Support Multi-monitor Management Software enables you to tailor your display formation to the way you work and playback video contents, so you can manage increased amounts of information, video contents and improve your productivity.

• Breadth - increase your display work space supporting up to nine monitors.
• Depth - create multiple layers of display workspace with Multi-Desk for up to 4 x video playback content in one monitor.

Flexible and easy to use :

Managing independent monitor display features for work and commercial sector :

• Determine the behavior of pop-up windows and dialog boxes in different applications
• Switch between desktop with a mouse click or "Hot Key"
• Vary your settings from one application to the next
• Customize features to an application

Increase your work productivity for multi-Monitors display :

• Transparent windows and menus
• " Always-on-Top"
• Multi-Desk properties
• Cycle through desktops view
• Move To Monitor
• Internet Explorer extension

See more. Do more. Flexibly to tailor to your needs !

AMD Eyefinity technology enables you to run up to four independent and simultaneous displays with a single graphics card. By expanding your field of view across multiple high-resolution monitors, you can see more detail than ever, helping to increase your workflow productivity. You can manage multitasking more efficiently, and view more data, applications, and images at once.

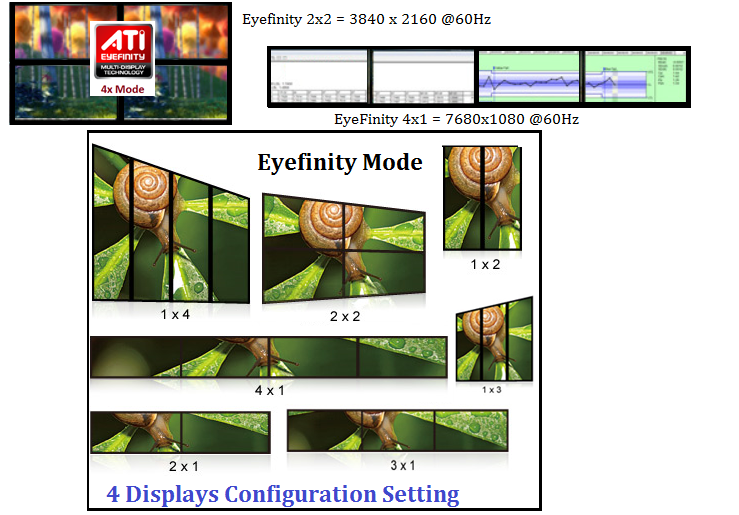

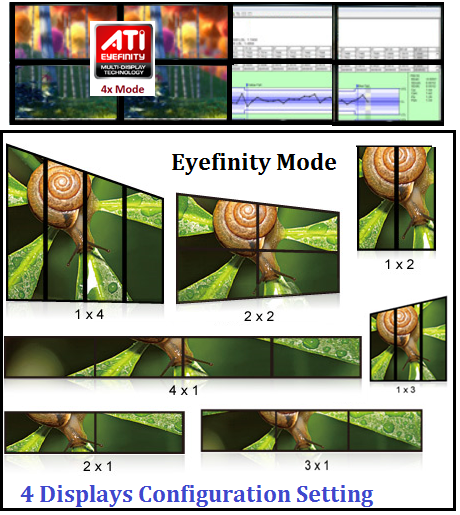

ATI Eyefinity will have the horsepower to drive monitors in just about any configuration an end user can imagine — from a standard 4x1 landscape orientation to more complex arrangements such as 2x2 portrait with a stack of 3 extended landscape monitors on the end.

HD Gaming and Entertainment Solution @ Direct2Easy Connect.

Innovative graphics display capabilities enabling 3 times massive desktop workspaces and ultra-immersive visual environments for the ultimate HD Gaming and computing experience.

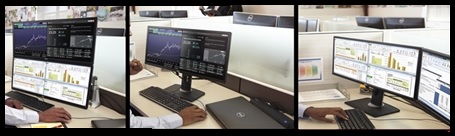

Cost effective 29"  (DELL U2913WM etc.) WQHD Monitors@

Work Productivity

Bezel Compensation Utility Feature :

Bezel Compensation Support : Driver level bezel correction allows you compensate for the dead space between your LCDs and converts this area into a blind spot, rather than a hard stop. Prior to introduction of bezel correction, textures would end on one monitor and abruptly start on the second, creating a very disjointed image. The bezel correction works by creating a custom resolution for your configuration and broadcasting this as the native setting for all your apps. Bezel correction is an optional step when setting up a new Eyefinity group in the Catalyst control center, so make sure you don’t miss it. You might not notice it in a racing game when looking at the grass or sky, but it will stick out like a sore thumb when you’re looking at a face that has been incorrectly split in two by a 4-inch bezel.
