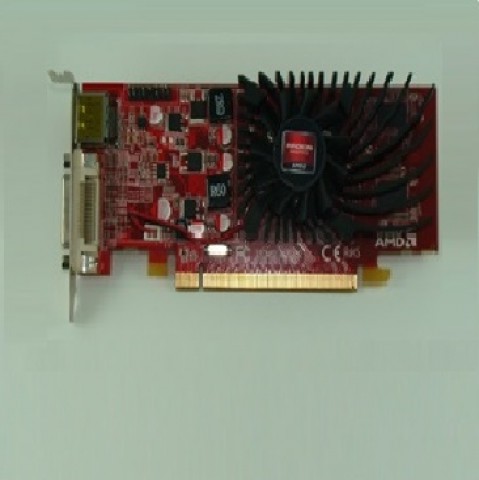

DMS59 5450, Dual Link edition

2 x Dual Link DVIs (or 2 x VGAs or 2 x UHD via dongle)

Dual Link DVIs supports QSXGA (Quad Super Extended Graphics Array) display resolution of 2560x2048 pixels with a 5:4 aspect ratio Grayscale monitors primarily for medical use .

2 x Dual Link DVIs - 2560 x 1600 resolution (10-bit color) or 1920 x 1080 @144Hz

2 x VGA ports - 2048 x 1536 resolution (Requires DVI to VGA dongle)

2x UHD ports (1920 x 1080)

On-board Active HDMI Port - 1920 x 1080 resolution (1080p)

Direct2Display Eyefinity 3X (No Active Dongle required)

5760 x 1080 resolution (3* 1920 x 1080 monitors) (1920 x 1080 @144Hz)

Eyefinity 3 x1, 1x3 mode

Independent 3 x Clone or Extend Mode in Landscape or Portrait supported.

Projector Overlap Support

Easily refine display alignment settings when configuring multiple, high resolution display devices or projectors.

.

Full 30-bit Display Pipeline

Supports a full 30-bit display pipeline producing more than one billion colors (10-bit per RGB component) is ideally suited for applications that benefit from accurate color reproduction and superior visual quality.

EDID Emulation for no monitors loss when power-off or disconnection running application for Video Wall or Production Monitoring avoiding reset to Windows default

Commercial Sector

• Many single and dual-monitor users today could derive real productivity benefits from using three or more monitors. Additional workspace and the ability to view multiple windows without constantly moving other windows from front to back can lead to faster project completion and much less user frustration.
• Today's existing two-card multiple-monitor solutions are often too complex for the average company to support. To move multiple-monitor solutions beyond a niche market, PC and monitor vendors must offer hardware and software packages that make multiple-monitor workstations easier to set up and manage for everyday users.
• Cost is a key factor. Most businesses today find themselves with large IT needs but small IT budgets. If they're going to embrace multiple monitors, the costs have to be reasonable and the return on investment needs to occur in the very near term.

Design for enabling multi-screen display designed to attract, inform and engage audiences or foster collaborative interaction and decision making. Such configurations include:

• Advertising & Point-of-Sale (e.g. digital billboards, posters and digital menus)

• Command & Control, Operations or Process Control Centers (e.g. utilities, emergency services, security)

• Conferences & Presentations (e.g. auditoriums, convention centers, conference rooms) • Entertainment/Infotainment & Events (e.g. sports arenas, movie theaters, concerts)

• Informational Displays • Simulation & Training (e.g. flight, automobile or ship’s bridge simulators)

• Video Conferencing

Powerful, flexible and affordable multi-display graphics product the display wall market besides gaming entertainment, has been waiting for–offering the lowest TCO for powering display comprised of 3 screens, high display density and long-lasting, high quality multimedia performance.

Support Multi-monitor Management Software enables you to tailor your display formation to the way you work and playback video contents, so you can manage increased amounts of information, video contents and improve your productivity.

• Breadth - increase your display work space supporting up to nine monitors.
• Depth - create multiple layers of display workspace with Multi-Desk for up to 4 x video playback content in one monitor.

Flexible and easy to use :

Managing independent monitor display features for work and commercial sector :

• Determine the behavior of pop-up windows and dialog boxes in different applications
• Switch between desktop with a mouse click or "Hot Key"
• Vary your settings from one application to the next
• Customize features to an application

Increase your work productivity for multi-Monitors display :

• Transparent windows and menus
• " Always-on-Top"
• Multi-Desk properties
• Cycle through desktops view
• Move To Monitor
• Internet Explorer extension

See more. Do more. Flexibly to tailor to your needs !

AMD Eyefinity technology enables you to run up to four independent and simultaneous displays with a single graphics card. By expanding your field of view across multiple high-resolution monitors, you can see more detail than ever, helping to increase your workflow productivity. You can manage multitasking more efficiently, and view more data, applications, and images at once.

ATI Eyefinity will have the horsepower to drive monitors in just about any configuration an end user can imagine — from a standard 3x1 landscape orientation to more complex arrangements such as 3x1 portrait with a stack of 3 extended landscape monitors on the end.

HD Gaming and Entertainment Solution @ Direct2Easy Connect.

Bezel Compensation Utility Feature :

Bezel Compensation Support : Driver level bezel correction allows you compensate for the dead space between your LCDs and converts this area into a blind spot, rather than a hard stop. Prior to introduction of bezel correction, textures would end on one monitor and abruptly start on the second, creating a very disjointed image. The bezel correction works by creating a custom resolution for your configuration and broadcasting this as the native setting for all your apps. Bezel correction is an optional step when setting up a new Eyefinity group in the Catalyst control center, so make sure you don’t miss it. You might not notice it in a racing game when looking at the grass or sky, but it will stick out like a sore thumb when you’re looking at a face that has been incorrectly split in two by a 4-inch bezel.
