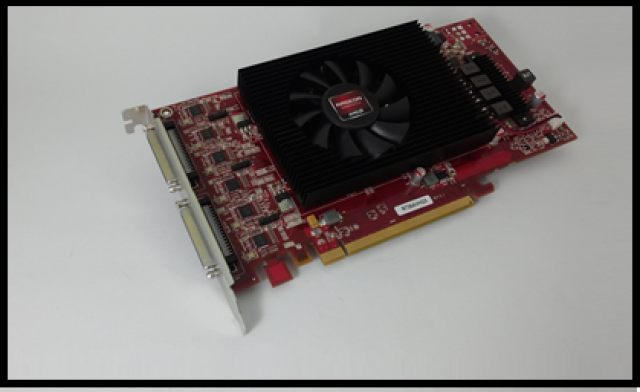

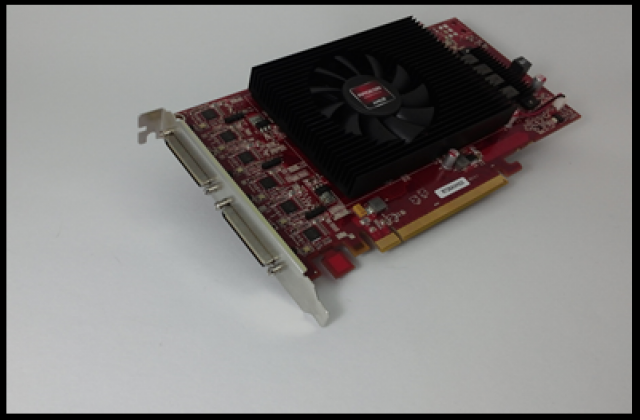

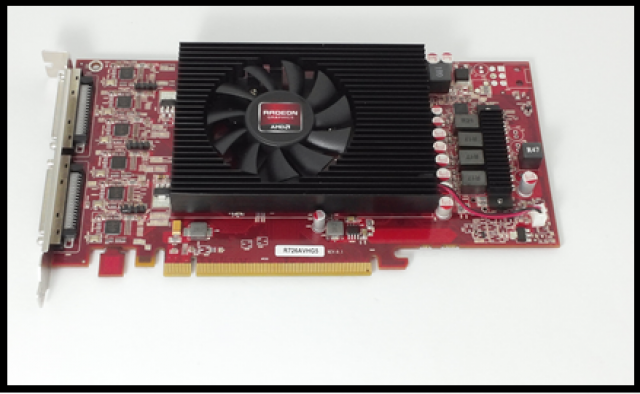

G736AVCG5-G6 (Active 6x DL DVIs), VSR 2560x1440, 2GB GDDR5, Green Edition

1250Mhz memory clock (5Gbps GDDR5) (128-bit)

Full Height, ATX size

208.15mm (length) *111.15mm (height) * 1.9cm (thick) ;

Single-slot, fits into 4U Rack mount / 4U, half-height / full-height, full-length chassis PCs

Temperature control FAN sink Cooler (Single slot)

Temperature Control FAN keeps the noise level absolutely minimal and only increases the speed to improves the air flow and facilitates a highly efficient ventilation supports the cooling of the graphics card work load.

6 sets of Dual Link DVI 2560x1440@60Hz resolution display. (WQHD)

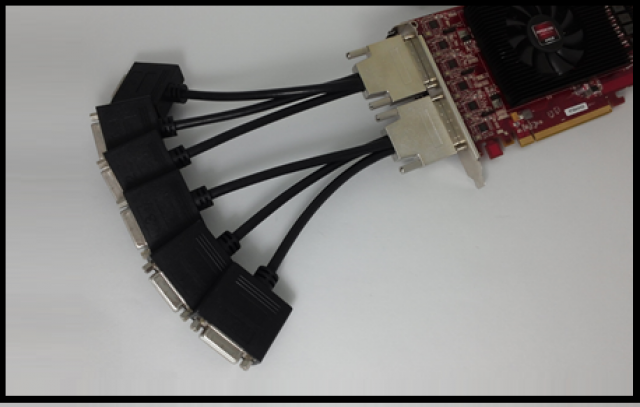

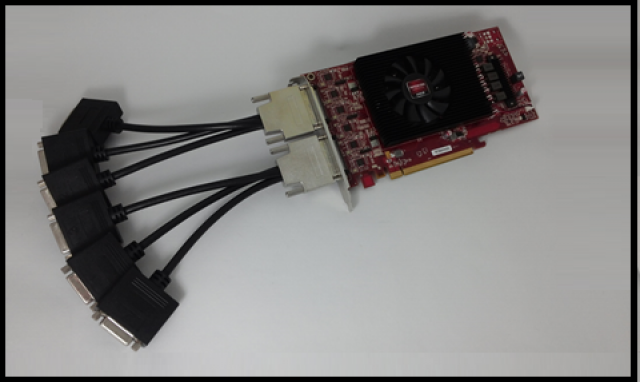

VHDCI to 3x DVIs (2560x1440) output cable for 6 DVI displays output

Dual Link DVIs resolution display for clone, extend mode and Eyefinity.

WQHD DVI @2560x1440 resolution 60Hz each

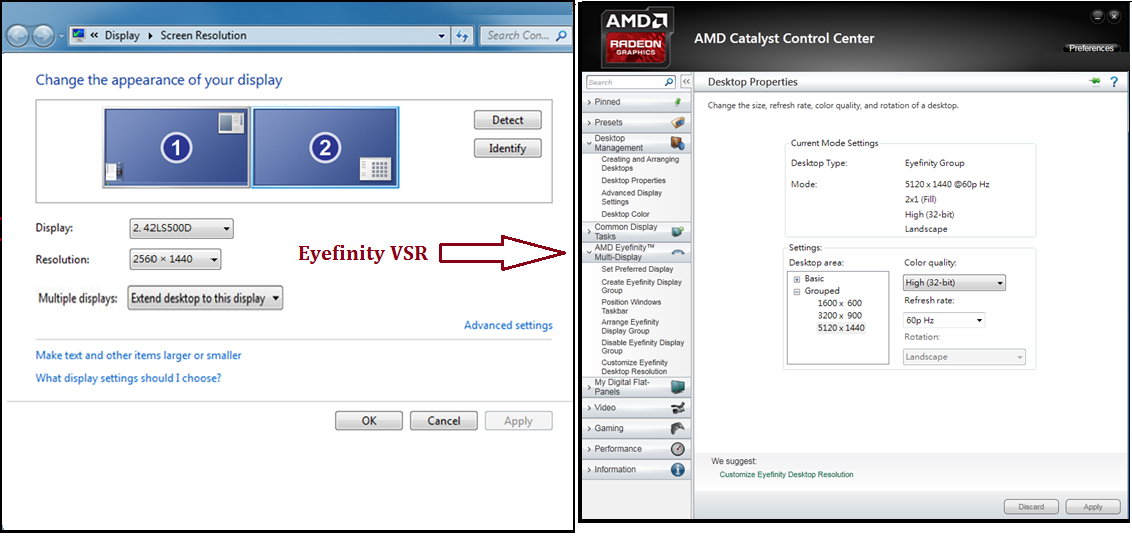

Maximum EyeFinity 3x2 @7680x2880 resolution @60Hz

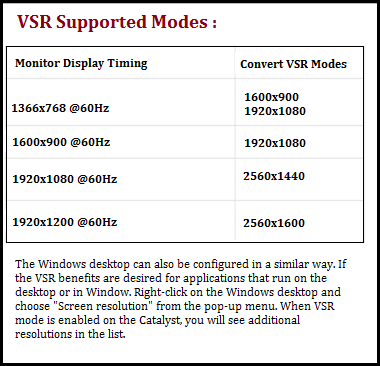

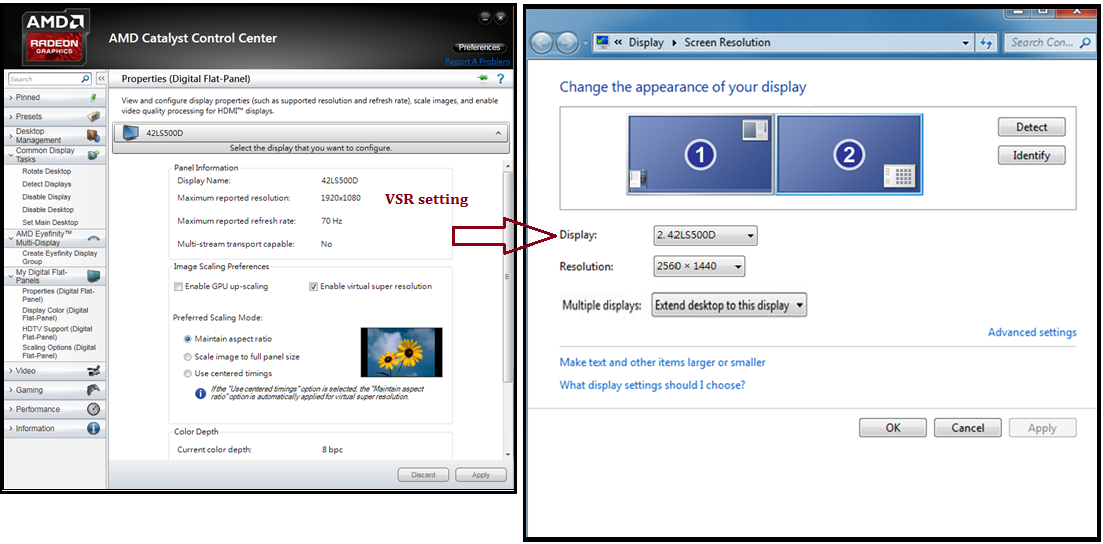

1920x1080 VSR @2560x1440 WQHD resolution.

Image quality enhancement technology

• Up to 24x multi-sample anti-aliasing

• Adaptive anti-aliasing

• Enhanced Quality Anti-Aliasing (EQAA)

• Morphological Anti-Aliasing (MLAA 2)

• DirectX® 9/10/11 Super Sample Anti-Aliasing (SSAA)

• Automatic LOD adjustment (Requires AMD CatalystTM 12.4 or higher)

• 16x angle invariant anisotropic texture filtering

AMD Eyefinity multi-display technology

• Up to 6x DL DVI displays supported (2560x1440 DVIs)

• Independent resolutions, refresh rates, color controls, and video overlays

• Display grouping (Combine multiple displays to behave like a single large display)

AMD App Acceleration

• Supports OpenCL 1.2, DirectCompute 11 & Microsoft C++ AMP

• Double Precision Floating Point

AMD HD Media Accelerator

Unified Video Decoder (UVD)

• H.264
• VC-1
• MPEG-2 (SD & HD)
• MVC (Blu-ray 3D)
• MPEG-4 Part 2 (DivX/Xvid)
• Adobe Flash
• DXVA 1.0 & 2.0 support
• WMV HD

Video Codec Engine (VCE)

• Multi-stream hardware H.264 encoder

• Full-fixed mode: 1080p @ 60 FPS encoding

• Hybrid mode: Stream Processor-assisted encoding

Enhanced Video Quality features

• Advanced post-processing and scaling

• Deblocking

• Denoising

• Automatic deinterlacing

• Mosquito noise reduction

• Edge enhancement

• 3:2 pull-down detection

Advanced video color correction

• Brighter whites processing (Blue Stretch)

• Independent video gamma control

• Flesh tone correction

• Color vibrance control

• Dynamic contrast

• Dynamic video range control

AMD Project FreeSync Support (DDR)

Project FreeSync (DDR) is an AMD effort to leverage industry standards, like DisplayPort Adaptive-Sync, to deliver dynamic refresh rates. Dynamic refresh rates synchronize the refresh rate of a compatible monitor to the framerate of a user’s AMD Radeon™ R7 260 graphics to maximally reduce input latency and reduce or fully eliminate stuttering/juddering/tearing during gaming and video playback.​

Bezel Compensation :

Stretches display resolutions to prevent bezel interference and image distortion when displaying a single large image across multiple display.

 No Video Tearing effect supported:

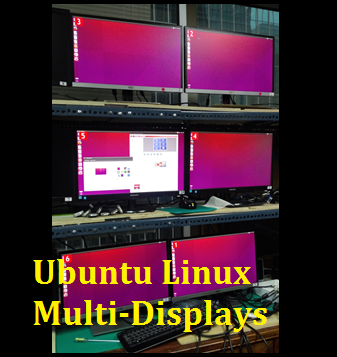

Multi-display technology

Eyefinity mode 6 displays supported only. (WQHD DVI Displays)

Independent resolutions, refresh rates, color controls,

Combine multiple displays to behave like a single large display in extend mode.

Transmission based on Gauge of Wire : 0 to 15M over HDMI cable requirement :

- HDMI (24AwG) cable can transmit the maximum distance up to 30m and support the resolution 720P, 1080I or 1080P;

- HDMI (28AwG) cable can transmit the maximum distance up to 15m and support the resolution 720P, 1080I or 1080P;

- HDMI (30AwG) cable can transmit the maximum distance up to 10m and support the resolution 720P, 1080I or 1080P

DVI/HDMI  Cable length - In general, cable lengths up to 15 feet (4.6 m) will work for display resolutions up to 1920 × 1200

For greater distances, the use of a DVI/HDMI booster – a signal repeater which may use an external power supply – is recommended to help mitigate signal degradation.

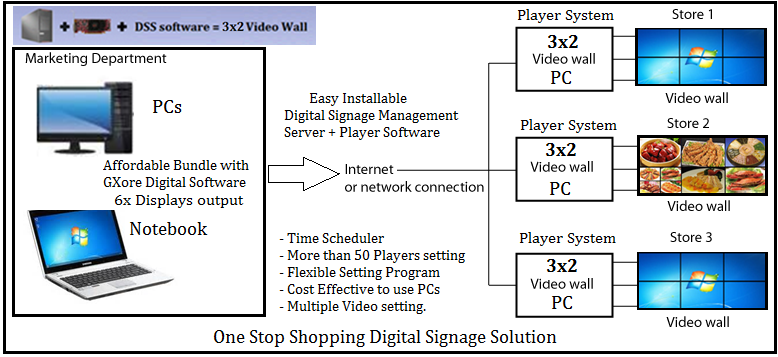

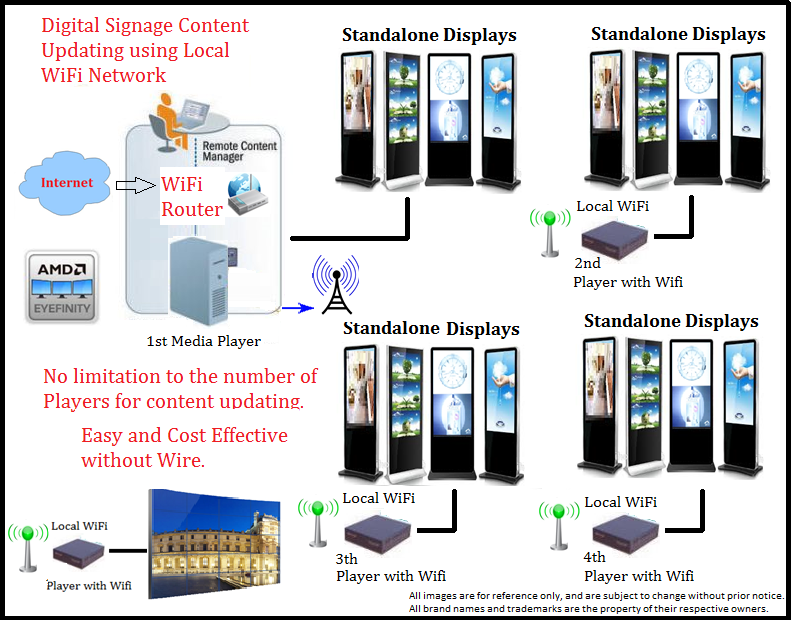

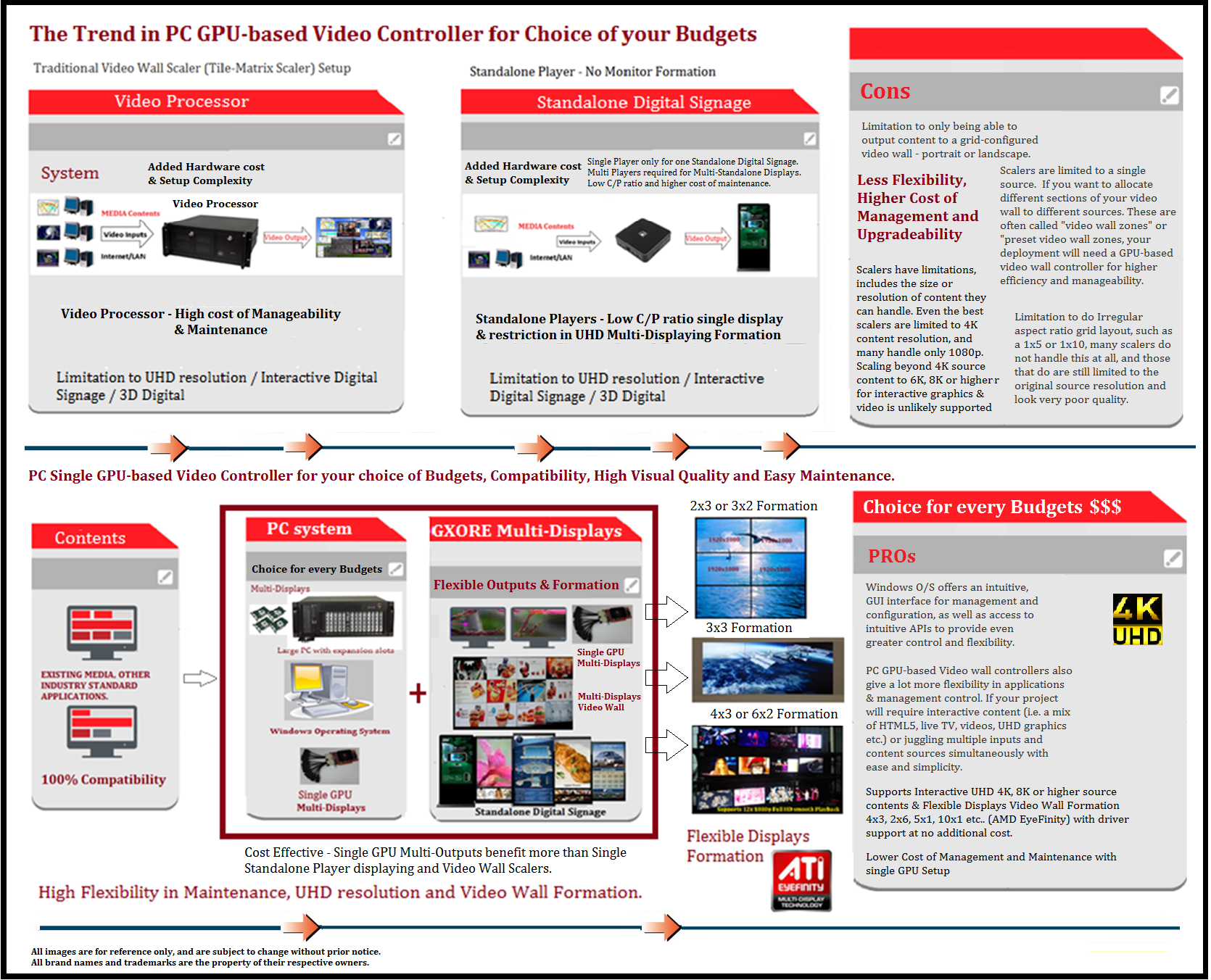

Sowing the Commercial  Digital Signage  Market :  Next Trend in 4K/8K Digital demand

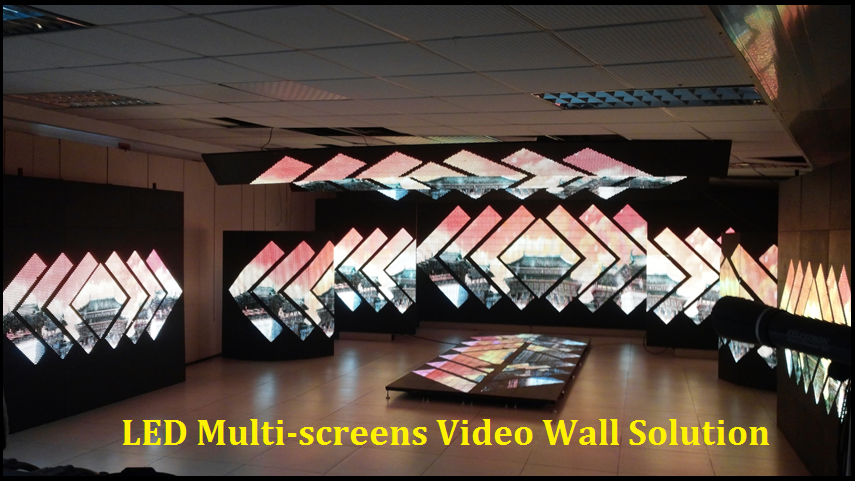

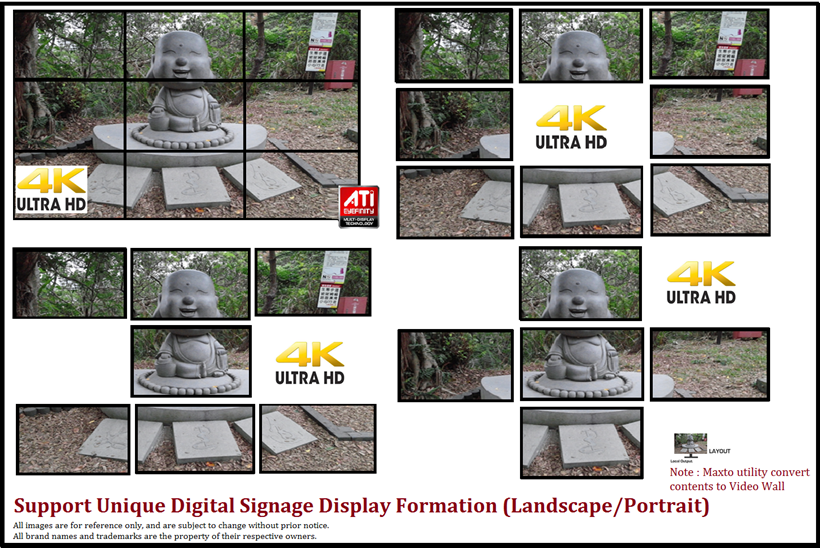

Design for enabling UHD 4K/8K multi-screen display walls designed to attract, inform and engage audiences or foster collaborative interaction and decision making. Such configurations include:

• Advertising & Point-of-Sale (e.g. digital billboards, posters and digital menus)

• Command & Control, Operations or Process Control Centers (e.g. utilities, emergency services, security)

• Conferences & Presentations (e.g. auditoriums, convention centers, conference rooms) • Entertainment/Infotainment & Events (e.g. sports arenas, movie theaters, concerts)

• Informational Displays • Simulation & Training (e.g. flight, automobile or ship’s bridge simulators)

• Video Conferencing with multi-audio conferencing.

• UHD 4K, 3D Gaming and Entertainment

Powerful, flexible and affordable multi-display graphics product the display wall market besides gaming entertainment, has been waiting for–offering the lowest TCO for powering display walls comprised of multi-screens, 6 x high display density and long-lasting, high quality multimedia performance.

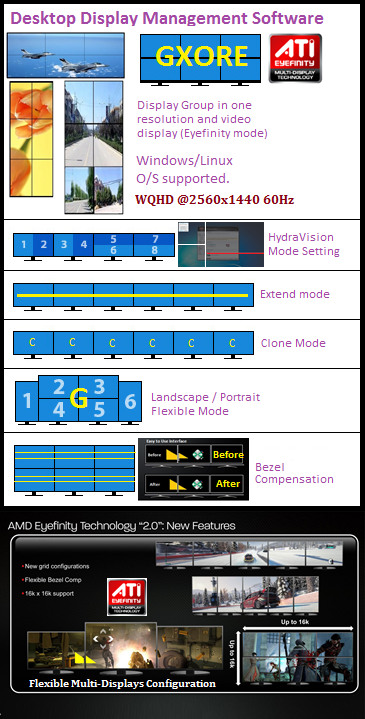

Support Multi-monitor Management Software enables you to tailor your display formation to the way you work and playback video contents, so you can manage increased amounts of information, video contents and improve your productivity.

• Breadth - increase your display work space supporting up to nine monitors.
• Depth - create multiple layers of display workspace with Multi-Desk for up to 4 x video playback content in one monitor.

Flexible and easy to use :

Managing independent monitor display features for work and commercial sector :

• Determine the behavior of pop-up windows and dialog boxes in different applications
• Switch between desktop with a mouse click or "Hot Key"
• Vary your settings from one application to the next
• Customize features to an application

Increase your work productivity for multi-Monitors display :

• Transparent windows and menus
• " Always-on-Top"
• Multi-Desk properties
• Cycle through desktops view
• Move To Monitor
• Internet Explorer extension

See more. Do more. Flexibly to tailor to your needs !

AMD Eyefinity technology enables you to run up to four independent and simultaneous displays with a single graphics card. By expanding your field of view across multiple high-resolution monitors, you can see more detail than ever, helping to increase your workflow productivity. You can manage multitasking more efficiently, and view more data, applications, and images at once.

HD Gaming and Entertainment Solution @ Direct2Easy Connect.

Innovative graphics display capabilities enabling 3 times massive desktop workspaces and ultra-immersive visual environments for the ultimate HD Gaming and computing experience.

Bezel Compensation Utility Feature :

Bezel Compensation Support : Driver level bezel correction allows you compensate for the dead space between your LCDs and converts this area into a blind spot, rather than a hard stop. Prior to introduction of bezel correction, textures would end on one monitor and abruptly start on the second, creating a very disjointed image. The bezel correction works by creating a custom resolution for your configuration and broadcasting this as the native setting for all your apps. Bezel correction is an optional step when setting up a new Eyefinity group in the Catalyst control center, so make sure you don’t miss it. You might not notice it in a racing game when looking at the grass or sky, but it will stick out like a sore thumb when you’re looking at a face that has been incorrectly split in two by a 4-inch bezel.
