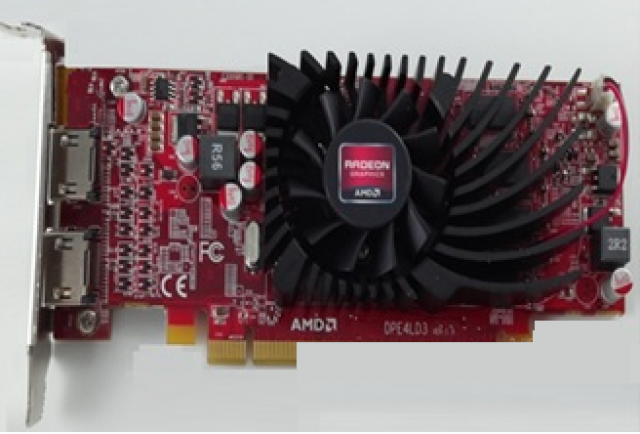

R7240DPX1 PCIe x1 SFF edition

GPU

• R7 240 GPU @ 800Mhz clock
• 384 Stream Processors

Memory

• 1GB GDDR3
• Bandwidth up to 28.8 GB/s
• 128-bit memory interface

Display Outputs and Capabilities

• Two (2) Display Port 1.2 outputs (4096 x 2160 resolution)
• Max resolution 8192 x 2160 (2 x 1 mode) with per Display Port 1.2 port, at 60Hz with packed pixel mode
• Independent multi-monitor resolution and refresh rate selection

Integrated HD audio controller

• Output protected high bit rate 7.1 channel surround sound over HDMI with no additional cables required
• Supports AC-3, AAC, Dolby TrueHD and DTS Master Audio™ formats
• Supports up to 2x  Independent DDM Audio (DDMA)

Bus Interface

• PCI Express x1 bus design.

Power Consumption : 40 watts (loaded)

Dimension

• Low Profile size design with passive cooler for silent operation and high MBTF. (option FAN sink)

System Requirements

• Available PCIe® x1 expansion slot
• Microsoft® Windows® XP, Windows Vista®, Windows® 7/8 or Linux® 14 (32-bit or 64-bit)
• 1GB of system memory
• Recommend 250 watts or above Power supply
• CD-ROM drive (or Internet access) for software installation

Package Contents

• R7240 1GB DDR3 PCI Express X1 card.
• Installation CD with drivers and documentation
• Quick Start Reference Guide

API and OS Support

• OpenGL® 4.3
• DirectX® 11.2
• OpenCL™ 1.2
• Mantle
• Microsoft® Windows® XP, Windows Vista® and Windows® 7/8 (32-bit or 64-bit)
• Linux® 32 and Linux® 64

• GCN Architecture

  Primed to enable astonishing performance and breathtaking image quality, making it a top choice for gamers who expect the best.

•  Ultra Resolution Gaming

  Experience resolutions up to four times higher than HD and see everything your opponent throws at you — without sacrificing a single detail.

• Mantle

  There’s optimization, and then there’s Mantle. Games enabled with Mantle speak the language of GCN architecture to unlock revolutionary performance and image quality.

• Acceleration

  Improve performance of everyday tasks such as Web browsing, office applications and video rendering.

• AMD PowerTune technology

  Enables intelligent power monitoring to enable higher clock speeds and better performance in your favorite games.

• AMD ZeroCore technology

  Allows your AMD Radeon™ GPU to consume virtually no power when in idle state.

• AMD HD3D technology

  Play 3D games, watch Blu-ray 3D videos, and edit 3D photos on your 3D monitor, TV or projector
