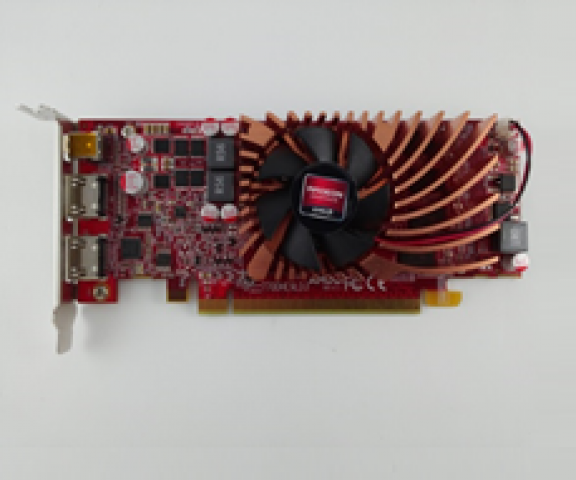

SFF7750ADHLD3, 4K +DP UltraWide QHD edition
|
Model : 7750ADHLD3-G3
Specification | |
GPU | AMD Radeon™ HD7750 (512 Stream Processors) |
GPU Core Clock | 800Mhz core clock |
Video Memory | 2GB DDR3 |
Memory Clock / Bandwidth | 800Mhz DDR3 (128-bit) |
APIs supported | OpenGL 4.2 OpenCL 1.2 DirectX 11.1 |
BUS | PCI Express x16 |
Cooler | FAN sink Cooler |
Board Size | SFF (Low Profile) |

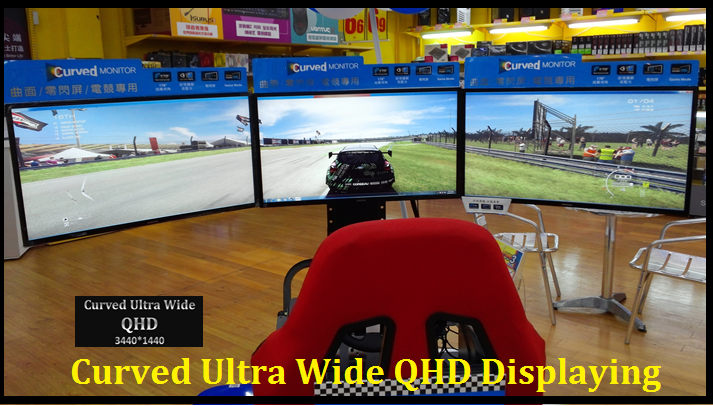

Display Output | 2 x active 4K UHD Port + 1 x Display Port 1.2 (4096 x 2160 resolution) *Supports Curved UltraWide (21:9) QHD displays @3440x1440, 2560x1080 resolution Wide screen displaying* |
Maximum Resolution | 11520 x 2160 resolution (3* 3840 x 2160 Monitors) Landscape 3840 x 6480 resolutiom (3* 3840 x 2160 Monitors) Portrait Eyefinity 3x1 mode or Eyefinity 1x3 mode. Independent 3x Clone or Extend Mode in Landscape or Portrait supported. 3rd display output requires a Mini DP to 4K HDMI adapter. Supports 3 x DDMAs channel (independent audio) directly output without any audio cable connection to 4K UHD TVs. *Supports 3 sets of Curved UltraWide (21:9) QHD displays @3440x1440, 2560x1080 resolution Wide screen displaying* |
Power Consumption (loaded) | < 65 Watts (No external power input required) |
Accessory | CD Driver, Quick Installation Manual |
O/S support | - Windows® 10 - Windows 8.1 32/64-bit - Windows 7 32-bit - Windows 7 64-bit - Windows Embedded Standard 7 32-bit - Windows Embedded Standard 7 64-bit - Windows Server® 2012 R2 64-bit - Windows Server 2008 R2 64-bit - Linux® / Ubuntu Linux |
Remark | Direct2Display3x EyeFinity AMD Eyefinity multi-display technology
|
All images are for reference only, and are subject to change without prior notice.
All brand names and trademarks are the property of their respective owners.
Established as an OEM/ODM design center and service by a group of experienced engineers of over 15 years in the graphics solution for the IPC business, GXore Inc. Group has integrated the resources and competencies of Hong Kong, Taiwan and China. With its logistic subsidiary in Hong Kong, GXore Inc. group is empowered with a flexible global logistics. Leveraging the sales & finance strength of Taiwan, it has also established R&D Design House; Partner's manufacturing facilities (ROHS), QA center & After-sale RMA service center in China. Since its inception, GXore Inc. group has been specializing in IPC graphics design and manufacturing, providing the ODM as well as the customized OEM services to US, Europe, Japan and Korea. GXore Inc. group’s goal is to fully satisfy every demand of every customer by the highest standard of product quality in the most efficient way.
Application
Sowing the Commercial Digital Signage Market : Next Trend in 4K Digital demand Design for enabling UHD 4K multi-screen display walls designed to attract, inform and engage audiences or foster collaborative interaction and decision making. Such configurations include: • Advertising & Point-of-Sale (e.g. digital billboards, posters and digital menus) • Command & Control, Operations or Process Control Centers (e.g. utilities, emergency services, security) • Conferences & Presentations (e.g. auditoriums, convention centers, conference rooms) • Entertainment/Infotainment & Events (e.g. sports arenas, movie theaters, concerts) • Informational Displays • Simulation & Training (e.g. flight, automobile or ship’s bridge simulators) • Video Conferencing with multi-audio conferencing. • UHD 4K, 3D Gaming and Infotainment Powerful, flexible and affordable multi-display graphics product the display wall market besides gaming entertainment, has been waiting for–offering the lowest TCO for powering display walls comprised of multi-screens, 3 x high display density and long-lasting, high quality multimedia performance. | |
Support Multi-monitor Management Software enables you to tailor your display formation to the way you work and playback video contents, so you can manage increased amounts of information, video contents and improve your productivity.
Flexible and easy to use : Managing independent monitor display features for work and commercial sector :
Increase your work productivity for multi-Monitors display :
| |
Multi-Display 2 sets of UHD 4K HDMIs for Commercial Video Playback tragte at consumer UHD quality capture. | |
![]() | 3 x Discrete Digital Multi-Point Audio (DDMA). Video cards have been able to output audio for a few years now via HDMI, and more recently DisplayPort gained the ability. However GPUs have been limited to streaming audio to a single device, be it a monitor, TV, or receiver. With DDMA 7750 single GPU can send up to 3 independent audio to multiple devices. You can configure each video player application for a dedicate audio channel configured along with the video content for independent video and audio playback. 7750 design offers an affordable multi-display, multi-audio conferencing for consumers. |
Bezel Compensation Utility Feature : Bezel Compensation Support : Driver level bezel correction allows you compensate for the dead space between your LCDs and converts this area into a blind spot, rather than a hard stop. Prior to introduction of bezel correction, textures would end on one monitor and abruptly start on the second, creating a very disjointed image. The bezel correction works by creating a custom resolution for your configuration and broadcasting this as the native setting for all your apps. Bezel correction is an optional step when setting up a new Eyefinity group in the Catalyst control center, so make sure you don’t miss it. You might not notice it in a racing game when looking at the grass or sky, but it will stick out like a sore thumb when you’re looking at a face that has been incorrectly split in two by a 4-inch bezel. | |
![]() | UHD 4K Gaming and Entertainment Solution @ Direct2Easy Connect. Innovative graphics display capabilities enabling 8 times massive desktop workspaces and ultra-immersive visual environments for the ultimate HD Gaming and computing experience.
|
